M110A-GPNF (1998)
Toyota Duet

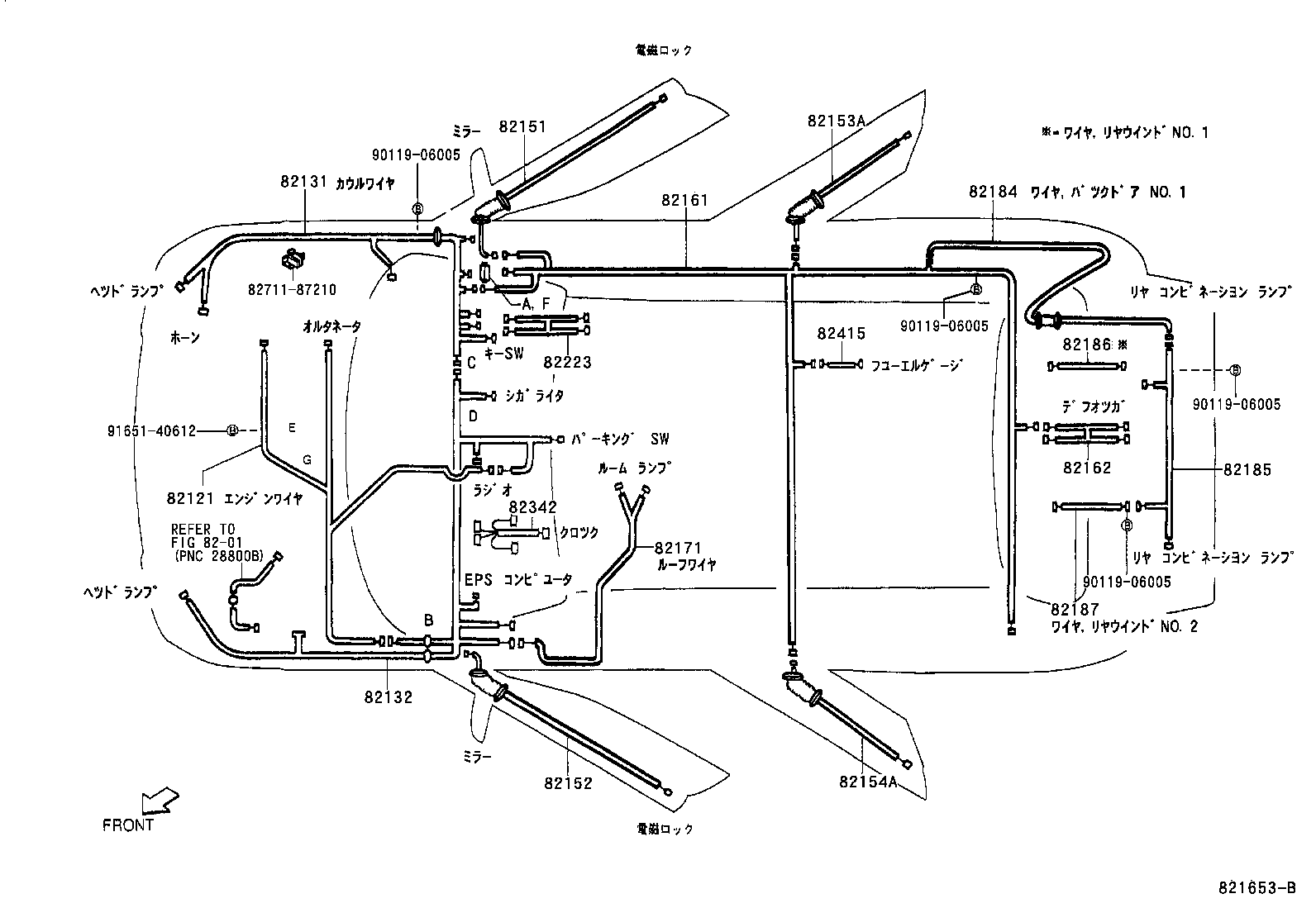

ILLUST NO. 1 OF 3(9809-0005)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-97217 |
M100,110 |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-97222 |
M100,110..V |
1 | ||
| 82131-97F05 |
M100,110..V ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ABS) |
1 | ||
| 82131-97F01 |
M100,110..V ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-97286 |
M110..4AT..V |
1 | ||
| 82133-97235 |
M110..4AT..V |
1 | ||
| 82132-97F08 |
M110..4AT..V ｱﾘ(*80,ｻｲﾄﾞ);V ﾘﾐﾃﾂﾄﾞ;ｱﾘ(ABS);V ﾘﾐﾃﾂﾄﾞ & ｱﾘ(ABS) |
1 | ||
| 82132-97F06 |
M100..4AT..X;M110..4AT..V |
1 | ||
| 82132-97F17 |
M110..4AT..V ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ABS);ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 82132-97M23 |
M110..4AT..V |
1 | ||
| 82132-97M25 |
M110..4AT..V ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ABS);ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 82132-97M24 |
M110..4AT..V ｱﾘ(*80,ｻｲﾄﾞ);V ﾘﾐﾃﾂﾄﾞ;ｱﾘ(ABS);V ﾘﾐﾃﾂﾄﾞ & ｱﾘ(ABS) |
1 | ||
| 82132-97F91 |
M110..4AT..V ｱﾘ(*80,ｻｲﾄﾞ);V ﾘﾐﾃﾂﾄﾞ;ｱﾘ(ABS);V ﾘﾐﾃﾂﾄﾞ & ｱﾘ(ABS) |
1 | ||
| 82132-97F90 |
M110..4AT..V |
1 | ||
| 82132-97F92 |
M110..4AT..V ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ABS);ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-97204 |
M100,110..V |
1 | ||
| 82151-97209 |
M100,110..V ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 82151-97206 |
M100,110..V ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 82151-97205 |
M100,110..V ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 82151-97248 |
M100,110..V ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 82151-97247 |
M100,110..V |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-97206 |
M100,110..V ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 82152-97204 |
M100,110..V |
1 | ||
| 82152-97209 |
M100,110..V ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 82152-97205 |
M100,110..V ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82153-97202 |
M100,110 |
1 | ||
| 82154A - WIRE, REAR DOOR, LH | ||||
| 82154-97202 |
M100,110 |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-97243 |
M110..V |
1 | ||
| 82161-97202 |
M110..V ｱﾘ(ABS) |
1 | ||
| 82161-97B35 |
M110..V ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 82161-97B45 |
M110..V ｱﾘ(ABS);V ﾘﾐﾃﾂﾄﾞ & ｱﾘ(ABS) |
1 | ||
| 82161-97B88 |
M110..V |
1 | ||
| 82161-97B89 |
M110..V ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 82161-97L01 |
M110..V ｱﾘ(*80,ｻｲﾄﾞ & ﾌﾟﾘﾃﾝｼﾖﾅ ｼ-ﾄﾍﾞﾙﾄ) |
1 | ||
| 82161-97B54 |
M110..V |
1 | ||
| 82161-97B37 |
M110..V ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ABS) |
1 | ||
| 82161-97B98 |
M110..V ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ABS) |
1 | ||
| 82161-97L01 |
M110 ｱﾘ(*80,ｻｲﾄﾞ) |
1 | ||
| 82161-97B97 |
M110..V ｱﾘ(ABS);V ﾘﾐﾃﾂﾄﾞ & ｱﾘ(ABS) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-97201 |
M100,110..V ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ABS);V ﾘﾐﾃﾂﾄﾞ & ｱﾘ(ABS) |
1 | ||
| 82162-97202 |
M100,110..V |
1 | ||
| 82162-97201 |
M110..V ｱﾘ(*80,ｻｲﾄﾞ);ｱﾘ(*80,ｻｲﾄﾞ & ABS) |
1 | ||
| 82162-97201 |
M100,110..V ｱﾘ(ABS) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-97201 |
M100,110..V |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-97205 |
M100,110..V V ﾘﾐﾃﾂﾄﾞ & ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ LEDｼｷ & ﾘﾔｽﾎﾟｲﾗ) |
1 | ||
| 82184-97205 |
M110;M100..X ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ LEDｼｷ & ﾘﾔｽﾎﾟｲﾗ) |
1 | ||
| 82184-97204 |
M110;M100..X |
1 | ||
| 82184-97225 |
M110;M100..X ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ LEDｼｷ & ﾘﾔｽﾎﾟｲﾗ) |
1 | ||
| 82184-97225 |
M100,110..V V ﾘﾐﾃﾂﾄﾞ & ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ LEDｼｷ & ﾘﾔｽﾎﾟｲﾗ) |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-97204 |
M110;M100..X |
1 | ||
| 82185-97203 |
M100,110..V V ﾘﾐﾃﾂﾄﾞ & ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ LEDｼｷ & ﾘﾔｽﾎﾟｲﾗ) |
1 | ||
| 82185-97203 |
M110;M100..X ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ LEDｼｷ & ﾘﾔｽﾎﾟｲﾗ) |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-97201 |
M10#,11# |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-97201 |
M10#,11# |
1 | ||
| 82223 - WIRE, SWITCH | ||||
| 82223-97203 |
M100,110 |
1 | ||
| 82342 - WIRE, CLOCK | ||||
| 82342-87105 |
M100,110 |
1 | ||
| 82415 - WIRE, FUEL PUMP | ||||
| 82415-97202 |
M10#,11# |
1 | ||
| Common parts | ||||
| 82711-87210 | ||||
| 90119-06005 | ||||
| 91651-40612 | ||||
| Linked diagrams | ||||
| 8201 | ||||

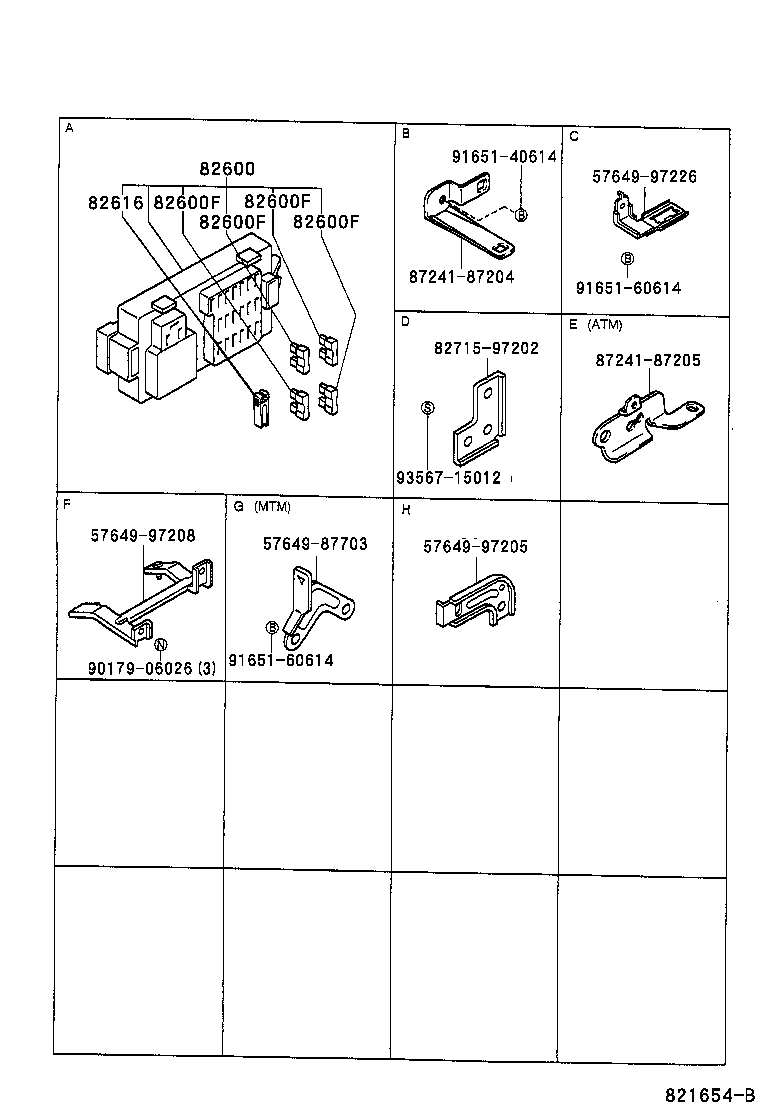

ILLUST NO. 2 OF 3(9809-0005)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600 - BLOCK ASSY, FUSE | ||||
| 82600-97205 |
M100,110 |
1 | ||
| 82600-97201 |
M100,110 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90049-40021 |
M10#,11# 20A,ｲｴﾛｰ |
2 | ||
| 90049-40019 |
M100,110 10A,ﾚｯﾄﾞ |
10 | ||
| 90049-40019 |
M10#,11# 10A,ﾚｯﾄﾞ |
9 | ||
| 90049-40028 |
M10#,11# 30A,ｸﾞﾘｰﾝ |
1 | ||
| 90049-40021 |
M100,110 20A,ｲｴﾛｰ |
1 | ||
| 90049-40020 |
M10#,11# 15A,ﾌﾞﾙｰ |
5 | ||
| 90049-40020 |
M100,110 15A,ﾌﾞﾙｰ |
4 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90049-40021 |
M10#,11# 20A,ｲｴﾛｰ |
2 | ||
| 90049-40019 |
M100,110 10A,ﾚｯﾄﾞ |
10 | ||
| 90049-40019 |
M10#,11# 10A,ﾚｯﾄﾞ |
9 | ||
| 90049-40028 |
M10#,11# 30A,ｸﾞﾘｰﾝ |
1 | ||
| 90049-40021 |
M100,110 20A,ｲｴﾛｰ |
1 | ||
| 90049-40020 |
M10#,11# 15A,ﾌﾞﾙｰ |
5 | ||
| 90049-40020 |
M100,110 15A,ﾌﾞﾙｰ |
4 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90049-40021 |
M10#,11# 20A,ｲｴﾛｰ |
2 | ||
| 90049-40019 |
M100,110 10A,ﾚｯﾄﾞ |
10 | ||
| 90049-40019 |
M10#,11# 10A,ﾚｯﾄﾞ |
9 | ||
| 90049-40028 |
M10#,11# 30A,ｸﾞﾘｰﾝ |
1 | ||
| 90049-40021 |
M100,110 20A,ｲｴﾛｰ |
1 | ||
| 90049-40020 |
M10#,11# 15A,ﾌﾞﾙｰ |
5 | ||
| 90049-40020 |
M100,110 15A,ﾌﾞﾙｰ |
4 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90049-40021 |
M10#,11# 20A,ｲｴﾛｰ |
2 | ||
| 90049-40019 |
M100,110 10A,ﾚｯﾄﾞ |
10 | ||
| 90049-40019 |
M10#,11# 10A,ﾚｯﾄﾞ |
9 | ||
| 90049-40028 |
M10#,11# 30A,ｸﾞﾘｰﾝ |
1 | ||
| 90049-40021 |
M100,110 20A,ｲｴﾛｰ |
1 | ||
| 90049-40020 |
M10#,11# 15A,ﾌﾞﾙｰ |
5 | ||
| 90049-40020 |
M100,110 15A,ﾌﾞﾙｰ |
4 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-87701 |
M10#,11# |
1 | ||
| Common parts | ||||
| 57649-87703 | ||||
| 57649-97205 | ||||
| 57649-97208 | ||||
| 57649-97226 | ||||
| 82715-97202 | ||||
| 87241-87204 | ||||
| 87241-87205 | ||||
| 90179-06026 | ||||
| 91651-40614 | ||||
| 91651-60614 | ||||
| 93567-15012 | ||||
