M110A-GPNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )

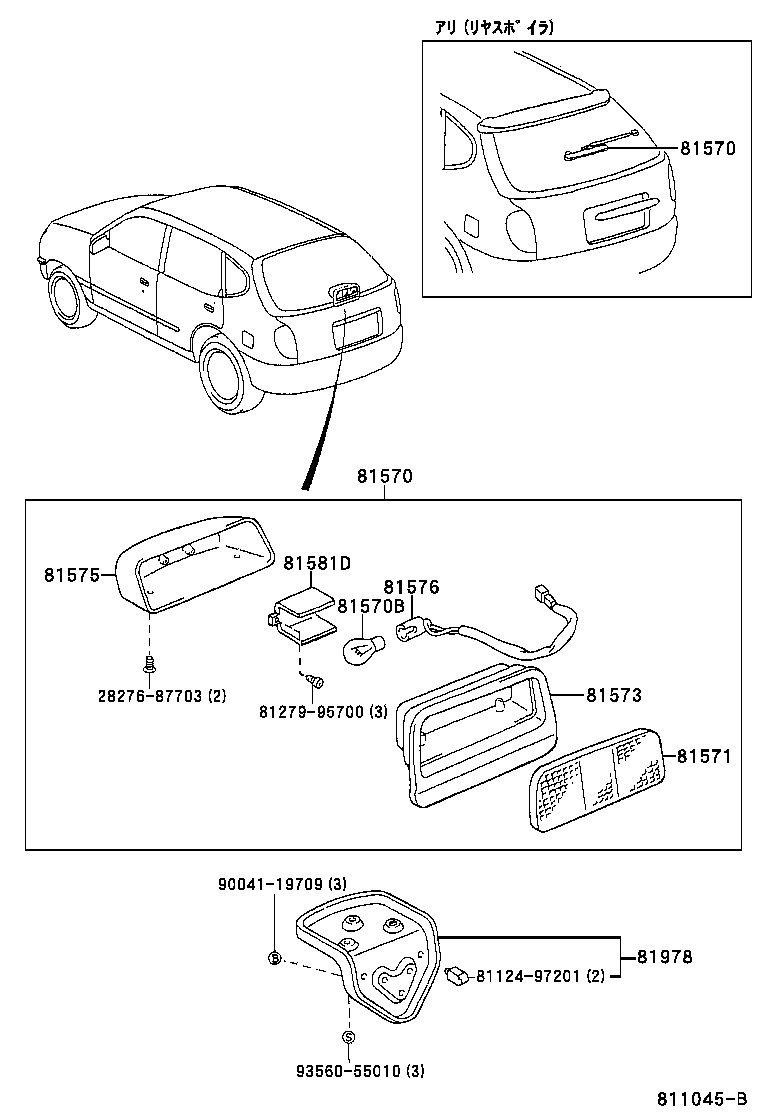

Click highlighted areas on diagram

diagram 2827687703 8112497201 8127995700 81570 81570 81570B 81571 81573 81575 81576 81581D 81978 9004119709 9356055010
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-97209

M100,110

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
81570-9720313

M10#,11#

GRAY,TRIMS6,S8

 1
81570 - LAMP ASSY, CENTER STOP
81570-97209

M100,110

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
81570-9720313

M10#,11#

GRAY,TRIMS6,S8

 1
81570B - BULB (FOR CENTER STOP LAMP)
99132-11210

M10#,11#

12V 21W

 1
81571 - LENS, CENTER STOP LAMP
81571-87201

M10#,11#

 1
81573 - BODY, STOP CENTER LAMP
81573-9720103

M10#,11#

GRAY,TRIMS6,S8

 1
81575 - COVER, CENTER STOP LAMP, NO.2
81506-8720113

M10#,11#

GRAY,TRIMS6,S8

 1
81576 - SOCKET & WIRE, CENTER STOP LAMP
81576-97201

M10#,11#

 1
81581D - REFLECTOR, STOP CENTER LAMP
81581-87201

M10#,11#

 1
81978 - BRACKET, STOP CENTER
81978-97201

M10#,11#

 1
Common parts
28276-87703
81124-97201
81279-95700
90041-19709
93560-55010
