M110A-GPNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )

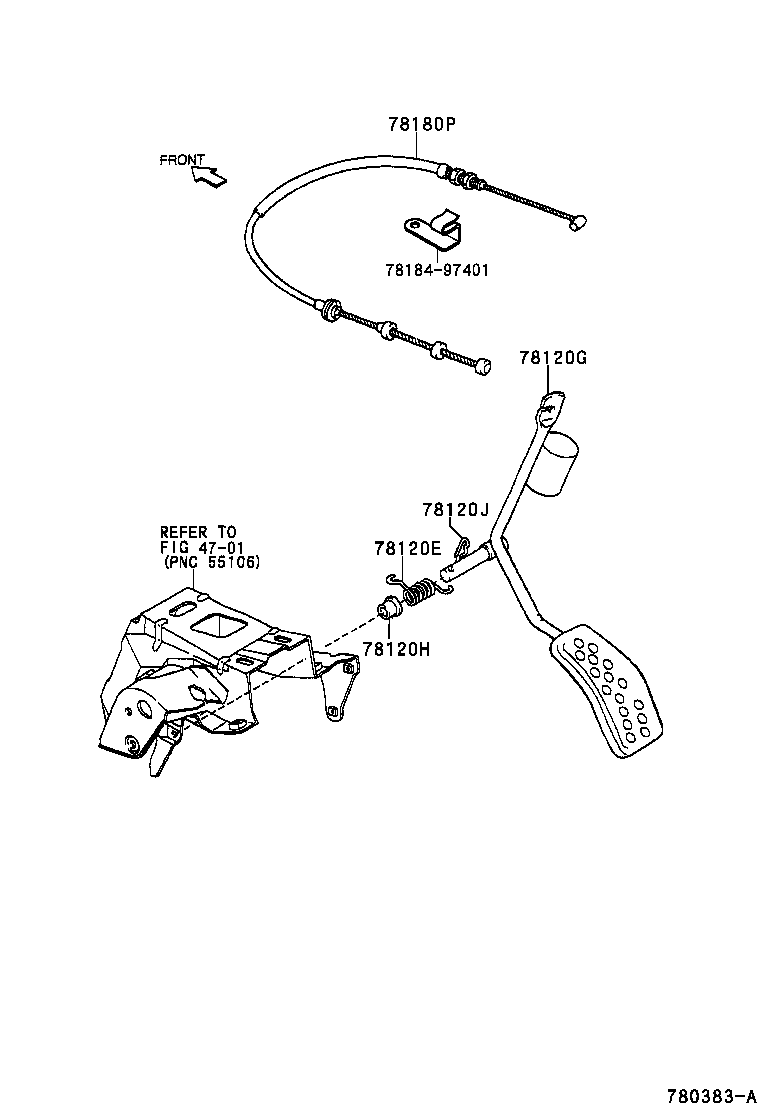

Click highlighted areas on diagram

diagram 4701 78120E 78120G 78120H 78120J 78180P 7818497401
Part # Description Qty Price
78120E - SPRING, TENSION (FOR ACCELERATOR LINK ROD)
90045-08359

M100,110..4AT

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78101-97203

M10#,11#

 1
78120H - BUSH (FOR ACCELRATOR PEDAL ROD)
90043-86112

M10#,11#

 1
78120J - CLIP (FOR ACCELRATOR PEDAL ROD)
90044-68207

M10#,11#

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-97209

M100,110

 1
78180-97201

M100,110

 1
Common parts
78184-97401
Linked diagrams
4701
