M110A-GPNF (1998)
Toyota Duet
ILLUST NO. 1 OF 2(9809-0112)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76625-97201 |
M100,110 |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76626-97201 |
M100,110 |
1 | ||
| 76625E - CLIP | ||||
| 90044-68149 |
M101,111;M100,110..LVVT |
4 | ||
| 76625E - CLIP | ||||
| 90044-68149 |
M101,111;M100,110..LVVT |
4 | ||
| 76851 - COVER, FRONT SPOILER | ||||
| 76851-9720218 |
M100,110..V ｽﾎﾟ-ﾂ ﾊﾟﾂｹ-ｼﾞ,PEARL WHITE,W16 |
1 | ||
| 76851-9720202 |
M100,110 MAPLE RED MICA M.M.,R27 |
1 | ||
| 76851-9720203 |
M100,110 WARM SILVER M.M.,S20 |
1 | ||
| 76851-9720218 |
M100,110 PEARL WHITE,W16 |
1 | ||
| 76851-9720203 |
M100,110..V ｽﾎﾟ-ﾂ ﾊﾟﾂｹ-ｼﾞ,WARM SILVER M.M.,S20 |
1 | ||
| 76851-9720209 |
M100,110..V ｽﾎﾟ-ﾂ ﾊﾟﾂｹ-ｼﾞ,MUSTARD YELLOW,Y06 |
1 | ||
| 76851-9720202 |
M100,110..V ｽﾎﾟ-ﾂ ﾊﾟﾂｹ-ｼﾞ,MAPLE RED MICA M.M.,R27 |
1 | ||
| 76851-9720209 |
M100,110 MUSTARD YELLOW,Y06 |
1 | ||
| 76851-9720204 |
M100,110..V ｽﾎﾟ-ﾂ ﾊﾟﾂｹ-ｼﾞ,ROYAL BLUE M.M.,B37 |
1 | ||
| 76851-9720208 |
M100,110..V ｽﾎﾟ-ﾂ ﾊﾟﾂｹ-ｼﾞ,WHITE,W09 |
1 | ||
| 76851-9720213 |
M100,110 GRAYISH SEPIA ME.,S21 |
1 | ||
| 76851-9720204 |
M100,110 ROYAL BLUE M.M.,B37 |
1 | ||
| 76851-9720208 |
M100,110 WHITE,W09 |
1 | ||
| 76851-9720213 |
M100,110..V ｽﾎﾟ-ﾂ ﾊﾟﾂｹ-ｼﾞ,GRAYISH SEPIA ME.,S21 |
1 | ||
| 76852C - COVER, FR SPOILER, NO.2 | ||||
| 76852-9720102 |
M100,110 MAPLE RED MICA M.M.,R27 |
1 | ||
| 76852-9720102 |
M100,110..V ｽﾎﾟ-ﾂ ﾊﾟﾂｹ-ｼﾞ,MAPLE RED MICA M.M.,R27 |
1 | ||
| 76852-9720103 |
M100,110 WARM SILVER M.M.,S20 |
1 | ||
| 76852-9720104 |
M100,110..V ｽﾎﾟ-ﾂ ﾊﾟﾂｹ-ｼﾞ,ROYAL BLUE M.M.,B37 |
1 | ||
| 76852-9720108 |
M100,110 WHITE,W09 |
1 | ||
| 76852-9720118 |
M100,110..V ｽﾎﾟ-ﾂ ﾊﾟﾂｹ-ｼﾞ,PEARL WHITE,W16 |
1 | ||
| 76852-9720109 |
M100,110 MUSTARD YELLOW,Y06 |
1 | ||
| 76852-9720109 |
M100,110..V ｽﾎﾟ-ﾂ ﾊﾟﾂｹ-ｼﾞ,MUSTARD YELLOW,Y06 |
1 | ||
| 76852-9720118 |
M100,110 PEARL WHITE,W16 |
1 | ||
| 76852-9720108 |
M100,110..V ｽﾎﾟ-ﾂ ﾊﾟﾂｹ-ｼﾞ,WHITE,W09 |
1 | ||
| 76852-9720104 |
M100,110 ROYAL BLUE M.M.,B37 |
1 | ||
| 76852-9720113 |
M100,110 GRAYISH SEPIA ME.,S21 |
1 | ||
| 76852-9720103 |
M100,110..V ｽﾎﾟ-ﾂ ﾊﾟﾂｹ-ｼﾞ,WARM SILVER M.M.,S20 |
1 | ||
| 76852-9720113 |
M100,110..V ｽﾎﾟ-ﾂ ﾊﾟﾂｹ-ｼﾞ,GRAYISH SEPIA ME.,S21 |
1 | ||
| 76915D - MUDGUARD, SIDE, FRONT RH | ||||
| 53847-97201 |
M10#,11# |
1 | ||
| 76916D - MUDGUARD, SIDE, FRONT LH | ||||
| 53848-97201 |
M10#,11# |
1 | ||
| 76917 - MUDGUARD, SIDE, REAR RH | ||||
| 61795-97201 |
M10#,11# |
1 | ||
| 76917D - CLIP | ||||
| 90044-68299 |
M10#,11# |
18 | ||
| 76917D - CLIP | ||||
| 90044-68299 |
M10#,11# |
18 | ||
| 76917E - CLIP | ||||
| 90044-68210 |
M10#,11# |
2 | ||
| 76917F - PLUG, HOLE | ||||
| 90048-71259 |
M100,110 |
14 | ||
| 76917G - CLAMP | ||||
| 90044-64091 |
M10#,11# |
2 | ||
| 76918 - MUDGUARD, SIDE, REAR LH | ||||
| 61796-97201 |
M10#,11# |
1 | ||
| Common parts | ||||
| 53199-87701 | ||||
| 90041-59306 | ||||
| 90041-59435 | ||||
| 90179-06206 | ||||
| 91631-40612 | ||||
| 93510-14010 | ||||

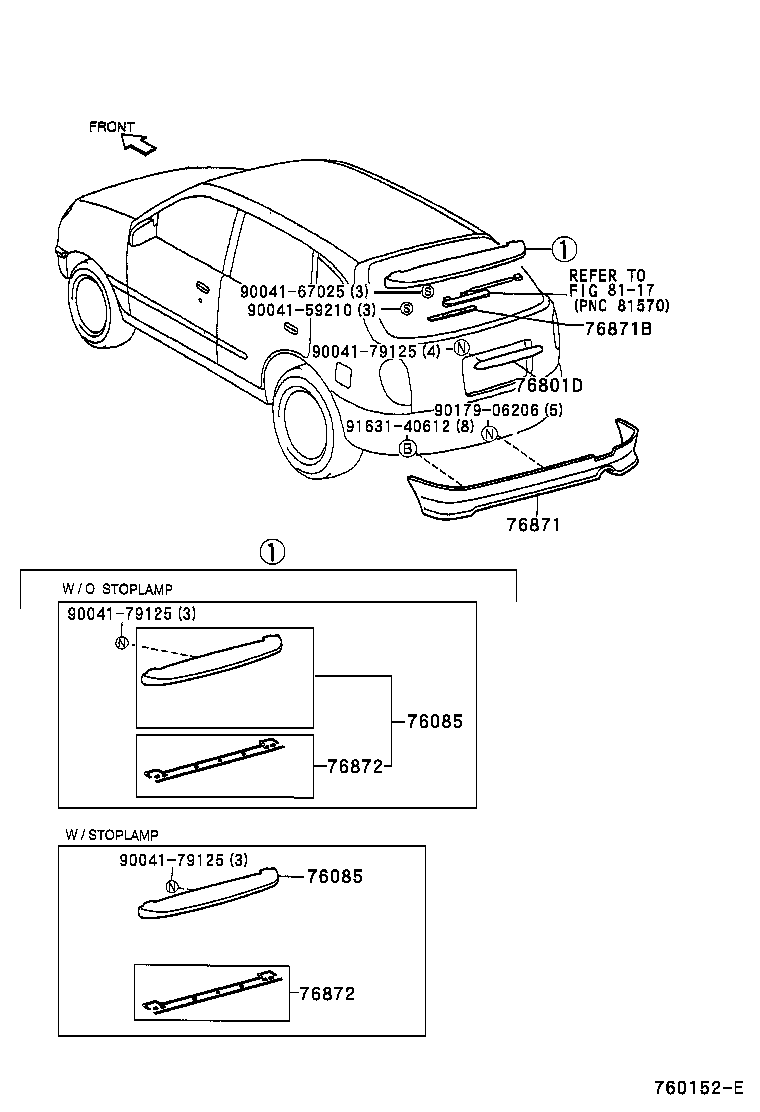

ILLUST NO. 2 OF 2(9809- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76085 - SPOILER SUB-ASSY, REAR | ||||
| 76091-9720204 |
M100,110 ROYAL BLUE ME,B37 |
1 | ||
| 76091-9720218 |
M100,110 PEARL WHITE,W16 |
1 | ||
| 76091-9720208 |
M100,110 WHITE,W09 |
1 | ||
| 76091-9720209 |
M100,110 MUSTARD YELLOW,Y06 |
1 | ||
| 76891-9720113 |
M100,110 ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ),GRAYISH SEPIA M.,S21 |
1 | ||
| 76891-9720118 |
M100,110 ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ),PEARL WHITE,W16 |
1 | ||
| 76891-9720104 |
M100,110 ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ),ROYAL BLUE ME,B37 |
1 | ||
| 76891-9720108 |
M100,110 ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ),WHITE,W09 |
1 | ||
| 76891-9720109 |
M100,110 ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ),MUSTARD YELLOW,Y06 |
1 | ||
| 76891-9720102 |
M100,110 ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ),MAPLE RED MICA M.,R27 |
1 | ||
| 76091-9720213 |
M100,110 GRAYISH SEPIA ME,S21 |
1 | ||
| 76091-9720203 |
M100,110 WARM SILVER ME,S20 |
1 | ||
| 76091-9720202 |
M100,110 RED M.M,R27 |
1 | ||
| 76085 - SPOILER SUB-ASSY, REAR | ||||
| 76091-9720204 |
M100,110 ROYAL BLUE ME,B37 |
1 | ||
| 76091-9720218 |
M100,110 PEARL WHITE,W16 |
1 | ||
| 76091-9720208 |
M100,110 WHITE,W09 |
1 | ||
| 76091-9720209 |
M100,110 MUSTARD YELLOW,Y06 |
1 | ||
| 76891-9720113 |
M100,110 ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ),GRAYISH SEPIA M.,S21 |
1 | ||
| 76891-9720118 |
M100,110 ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ),PEARL WHITE,W16 |
1 | ||
| 76891-9720104 |
M100,110 ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ),ROYAL BLUE ME,B37 |
1 | ||
| 76891-9720108 |
M100,110 ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ),WHITE,W09 |
1 | ||
| 76891-9720109 |
M100,110 ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ),MUSTARD YELLOW,Y06 |
1 | ||
| 76891-9720102 |
M100,110 ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ),MAPLE RED MICA M.,R27 |
1 | ||
| 76091-9720213 |
M100,110 GRAYISH SEPIA ME,S21 |
1 | ||
| 76091-9720203 |
M100,110 WARM SILVER ME,S20 |
1 | ||
| 76091-9720202 |
M100,110 RED M.M,R27 |
1 | ||
| 76801D - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE | ||||
| 76802-97201 |
M10#,11# |
1 | ||
| 76871 - SPOILER, REAR | ||||
| 76871-9720318 |
M100,110 PEARL WHITE,W16 |
1 | ||
| 76871-9720303 |
M100,110..V ｽﾎﾟ-ﾂ ﾊﾟﾂｹ-ｼﾞ,WARM SILVER M.M.,S20 |
1 | ||
| 76871-9720303 |
M100,110 WARM SILVER M.M.,S20 |
1 | ||
| 76871-9720304 |
M100,110 ROYAL BLUE M.M.,B37 |
1 | ||
| 76871-9720302 |
M100,110..V ｽﾎﾟ-ﾂ ﾊﾟﾂｹ-ｼﾞ,MAPLE RED MICA M.M.,R27 |
1 | ||
| 76871-9720313 |
M100,110 GRAYISH SEPIA ME.,S21 |
1 | ||
| 76871-9720308 |
M100,110 WHITE,W09 |
1 | ||
| 76871-9720318 |
M100,110..V ｽﾎﾟ-ﾂ ﾊﾟﾂｹ-ｼﾞ,PEARL WHITE,W16 |
1 | ||
| 76871-9720309 |
M100,110 MUSTARD YELLOW,Y06 |
1 | ||
| 76871-9720308 |
M100,110..V ｽﾎﾟ-ﾂ ﾊﾟﾂｹ-ｼﾞ,WHITE,W09 |
1 | ||
| 76871-9720302 |
M100,110 MAPLE RED MICA M.M.,R27 |
1 | ||
| 76871-9720309 |
M100,110..V ｽﾎﾟ-ﾂ ﾊﾟﾂｹ-ｼﾞ,MUSTARD YELLOW,Y06 |
1 | ||
| 76871-9720313 |
M100,110..V ｽﾎﾟ-ﾂ ﾊﾟﾂｹ-ｼﾞ,GRAYISH SEPIA ME.,S21 |
1 | ||
| 76871-9720304 |
M100,110..V ｽﾎﾟ-ﾂ ﾊﾟﾂｹ-ｼﾞ,ROYAL BLUE M.M.,B37 |
1 | ||
| 76871B - COVER, REAR SPOILER | ||||
| 81574-87202 |
M100,110 |
1 | ||
| Common parts | ||||
| 90041-59210 | ||||
| 90041-67025 | ||||
| 90041-79125 | ||||
| 90179-06206 | ||||
| 91631-40612 | ||||
| Linked diagrams | ||||
| 8117 | ||||
