M110A-GPNF (1998)
Toyota Duet
Production
Sep 1998
-
May 2000
Engine
EJDE
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9809-0112)

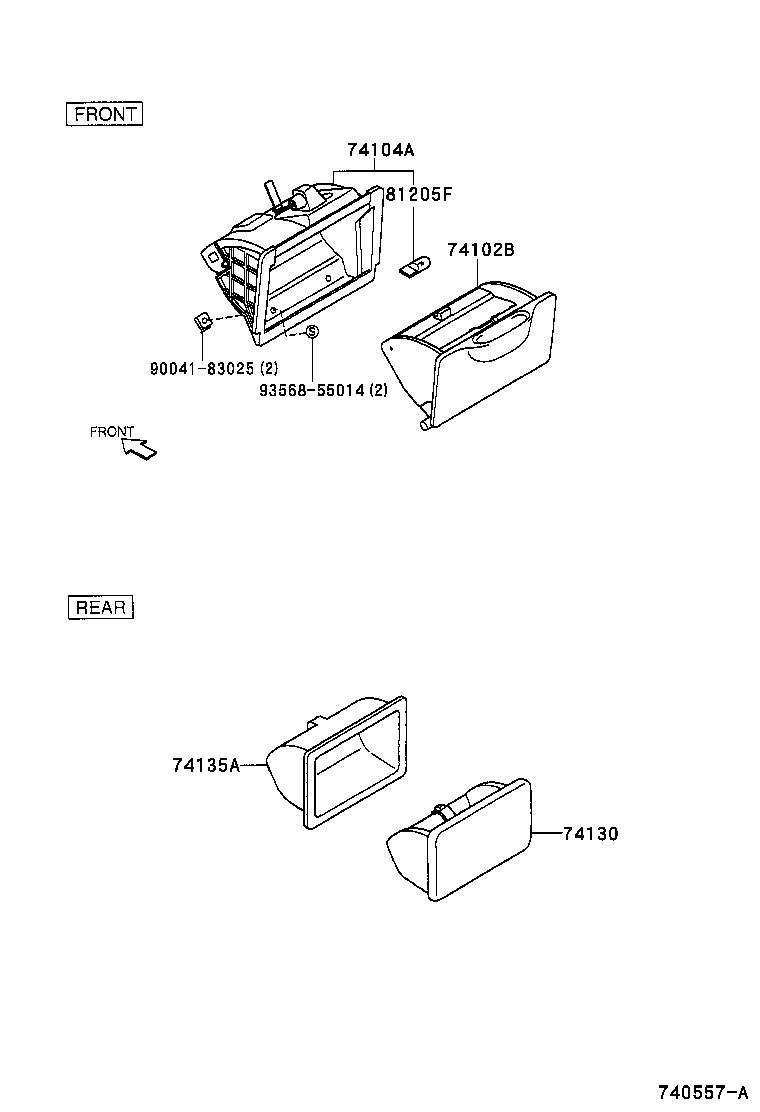

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE | ||||
| 74102-97201 |
M100,110 |
1 | ||
| 74104A - RETAINER SUB-ASSY, FRONT ASH RECEPTACLE | ||||
| 74104-97202 |
M100,110 |
1 | ||
| 74130 - RECEPTACLE ASSY, REAR ASH | ||||
| 74109-8770133 |
M100,110 DARK GRAY,TRIMS6 |
1 | ||
| 74135A - RETAINER, REAR ASH RECEPTACLE, NO.1 | ||||
| 74108-87102 |
M10#,11# |
1 | ||
| 81205F - LAMP SUB-ASSY, ASH RECEPTACLE | ||||
| 81205-97201 |
M10#,11# |
1 | ||
| Common parts | ||||
| 90041-83025 | ||||
| 93568-55014 | ||||
