M110A-GPNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )

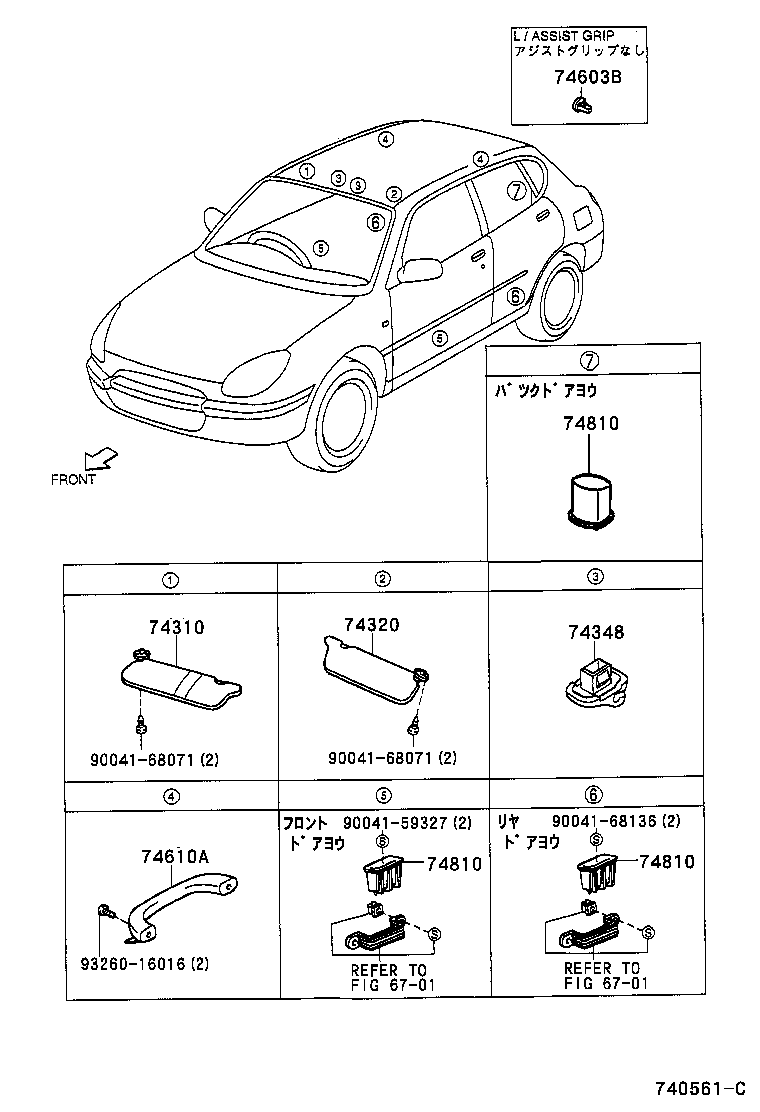

Click highlighted areas on diagram

diagram 6701 6701 74310 74320 74348 74603B 74610A 74810 74810 74810 9004159327 9004168071 9004168071 9004168136 9326016016
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-9722308

M100,110..V

IVORY,TRIMS6,S8

 1
74310-9722408

M100,110..V

ｱﾘ(ﾊﾞﾆﾃｲ ﾐﾗ-),IVORY,TRIMS6

 1
74320 - VISOR ASSY, LH
74320-9722308

M100,110

ｱﾘ(ﾊﾞﾆﾃｲ ﾐﾗ-),IVORY,TRIMS6

 1
74320-9720108

M10#,11#

IVORY,TRIMS6,S8

 1
74348 - HOLDER, VISOR
74348-9720108

M10#,11#

IVORY,TRIMS6,S8

 2
74603B - CLIP (FOR ASSIST GRIP)
90044-6741408

M100,110..V

IVORY,TRIMS6

 4
74610A - GRIP SUB-ASSY, ASSIST
74611-9720108

M10#,11#

IVORY,TRIMS6,S8

 3
74810 - PULL ASSY, DOOR, INSIDE
74811-9720103

M10#,11#

DARK GRAY,TRIMS6,ﾌﾛﾝﾄ ﾄﾞｱ & ﾘﾔ ﾄﾞｱ

 4
74811-13010B1

M10#,11#

LT.GRAY,TRIMS6,S8,ﾊﾞｯｸﾄﾞｱ

 1
74810 - PULL ASSY, DOOR, INSIDE
74811-9720103

M10#,11#

DARK GRAY,TRIMS6,ﾌﾛﾝﾄ ﾄﾞｱ & ﾘﾔ ﾄﾞｱ

 4
74811-13010B1

M10#,11#

LT.GRAY,TRIMS6,S8,ﾊﾞｯｸﾄﾞｱ

 1
74810 - PULL ASSY, DOOR, INSIDE
74811-9720103

M10#,11#

DARK GRAY,TRIMS6,ﾌﾛﾝﾄ ﾄﾞｱ & ﾘﾔ ﾄﾞｱ

 4
74811-13010B1

M10#,11#

LT.GRAY,TRIMS6,S8,ﾊﾞｯｸﾄﾞｱ

 1
Common parts
90041-59327
90041-68071
90041-68136
93260-16016
Linked diagrams
6701
