M110A-GPNF (1998)
Toyota Duet
Production
Sep 1998
-
May 2000
Engine
EJDE
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9809- )

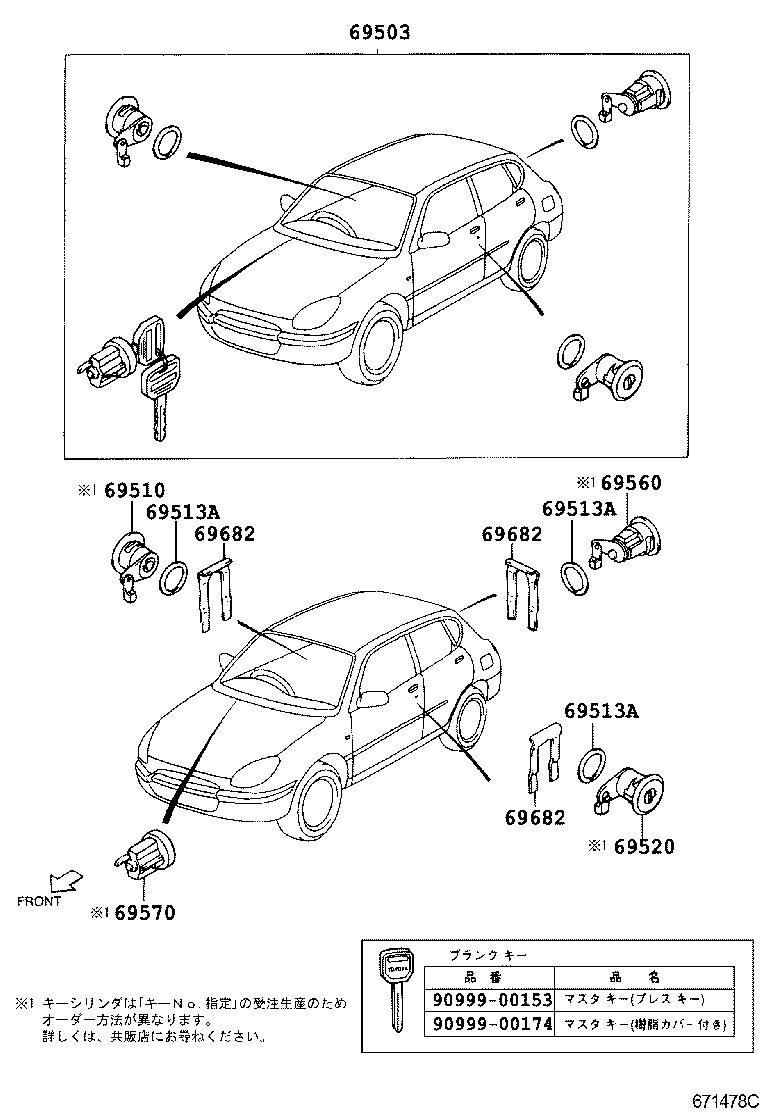

Click highlighted areas on diagram
ﾅｼ(ｷ-ﾌﾘ- ｼｽﾃﾑ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-97214 |
M100,110..LVVT;M100,110..V..WVVT ﾅｼ(ｷ- ﾌﾘ- ｼｽﾃﾑ) |
1 | ||
| 69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH | ||||
| 69510-97201 |
M10#,11# |
1 | ||
| 69513A - PAD, DOOR CYLINDER | ||||
| 69513-87201 |
M10#,11# |
3 | ||
| 69513A - PAD, DOOR CYLINDER | ||||
| 69513-87201 |
M10#,11# |
3 | ||
| 69513A - PAD, DOOR CYLINDER | ||||
| 69513-87201 |
M10#,11# |
3 | ||
| 69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH | ||||
| 69520-97201 |
M10#,11# |
1 | ||
| 69560 - CYLINDER ASSY, BACK DOOR LOCK | ||||
| 69560-97201 |
M10#,11# |
1 | ||
| 69570 - CYLINDER ASSY, IGNITION SWITCH LOCK | ||||
| 69570-87710 |
M100,110 |
1 | ||
| 69682 - RETAINER, LOCK CYLINDER | ||||
| 69682-97202 |
M10#,11# ｻｲﾄﾞ ﾄﾞｱ |
2 | ||
| 69682-87201 |
M100,110 |
3 | ||
| 69682-87201 |
M10#,11# ﾊﾞﾂｸ ﾄﾞｱ |
1 | ||
| 69682 - RETAINER, LOCK CYLINDER | ||||
| 69682-97202 |
M10#,11# ｻｲﾄﾞ ﾄﾞｱ |
2 | ||
| 69682-87201 |
M100,110 |
3 | ||
| 69682-87201 |
M10#,11# ﾊﾞﾂｸ ﾄﾞｱ |
1 | ||
| 69682 - RETAINER, LOCK CYLINDER | ||||
| 69682-97202 |
M10#,11# ｻｲﾄﾞ ﾄﾞｱ |
2 | ||
| 69682-87201 |
M100,110 |
3 | ||
| 69682-87201 |
M10#,11# ﾊﾞﾂｸ ﾄﾞｱ |
1 | ||
| Common parts | ||||
| 90999-00153 | ||||
| 90999-00174 | ||||
