M110A-GPNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )

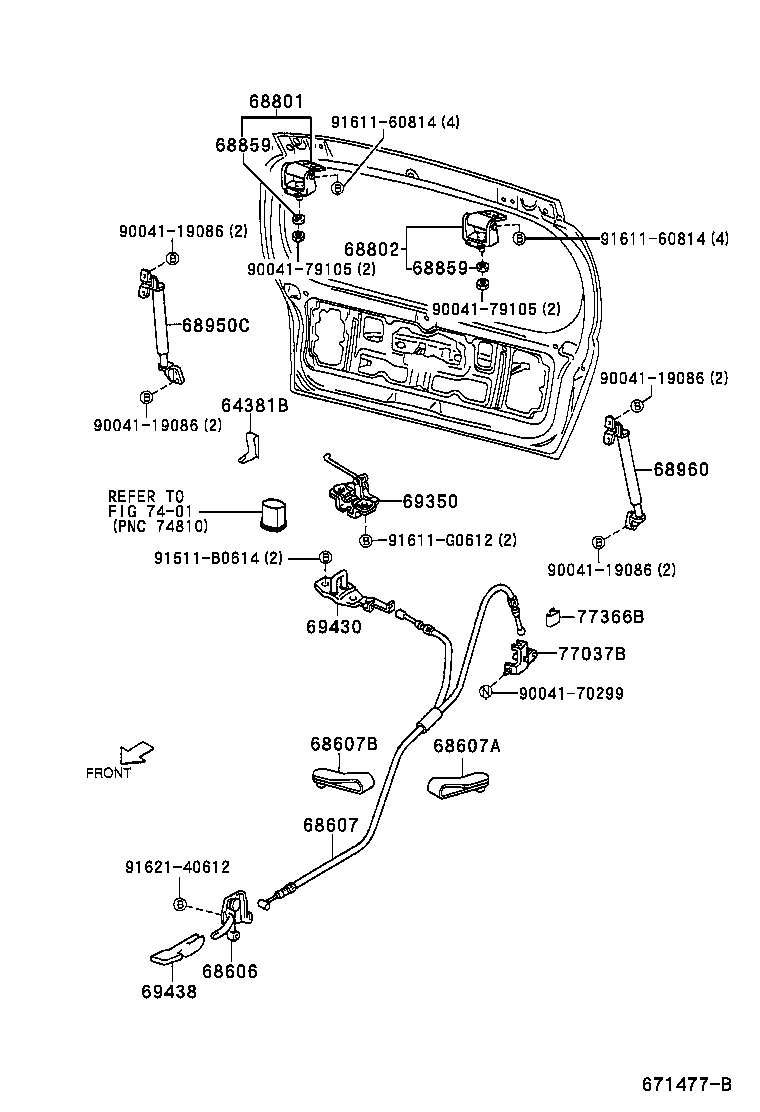

Click highlighted areas on diagram

diagram 64381B 68606 68607 68607A 68607B 68801 68802 68859 68859 68950C 68960 69350 69430 69438 7401 77037B 77366B 9004119086 9004119086 9004119086 9004119086 9004170299 9004179105 9004179105 91511B0614 9161160814 9161160814 91611G0612 9162140612
Part # Description Qty Price
64381B - HANGER, PACKAGE TRAY TRIM
64381-97201

M10#,11#

 2
68606 - LEVER SUB-ASSY, BACK DOOR LOCK OPEN
64606-97204

M10#,11#

 1
68607 - CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
64607-97204

M10#,11#

 1
68607A - CLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)
90044-64621

M100,110

 1
68607B - CLAMP, NO.2(FOR BACK DOOR LOCK CONTROL CABLE)
90044-64680

M10#,11#

 1
68801 - HINGE SUB-ASSY, BACK DOOR, UPPER RH
68801-97201

M10#,11#

 1
68802 - HINGE SUB-ASSY, BACK DOOR, UPPER LH
68801-97202

M10#,11#

ｱﾘ(ﾘﾔﾜｲﾊﾟ)

 1
68859 - PACKING, BACK DOOR HINGE
68859-87201

M10#,11#

 2
68859 - PACKING, BACK DOOR HINGE
68859-87201

M10#,11#

 2
68950C - STAY ASSY, BACK DOOR, RH
68950-97202

M10#,11#

ｱﾘ(ﾘﾔﾜｲﾊﾟ)

 1
68960 - STAY ASSY, BACK DOOR, LH
68960-97202

M10#,11#

ｱﾘ(ﾘﾔﾜｲﾊﾟ)

 1
69350 - LOCK ASSY, BACK DOOR
69350-97205

M10#,11#

 1
69430 - HANDLE ASSY, BACK DOOR PULL CENTER
69430-97201

M10#,11#

 1
69438 - LEVER, BACK DOOR LOCK OPEN
69438-97204

M10#,11#

 1
77037B - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-97201

M10#,11#

 1
77366B - SPRING, FUEL FILLER OPENING LID HINGE
77366-87203

M10#,11#

 1
Common parts
90041-19086
90041-70299
90041-79105
91511-B0614
91611-60814
91611-G0612
91621-40612
Linked diagrams
7401
