M110A-GPNF (1998)
Toyota Duet

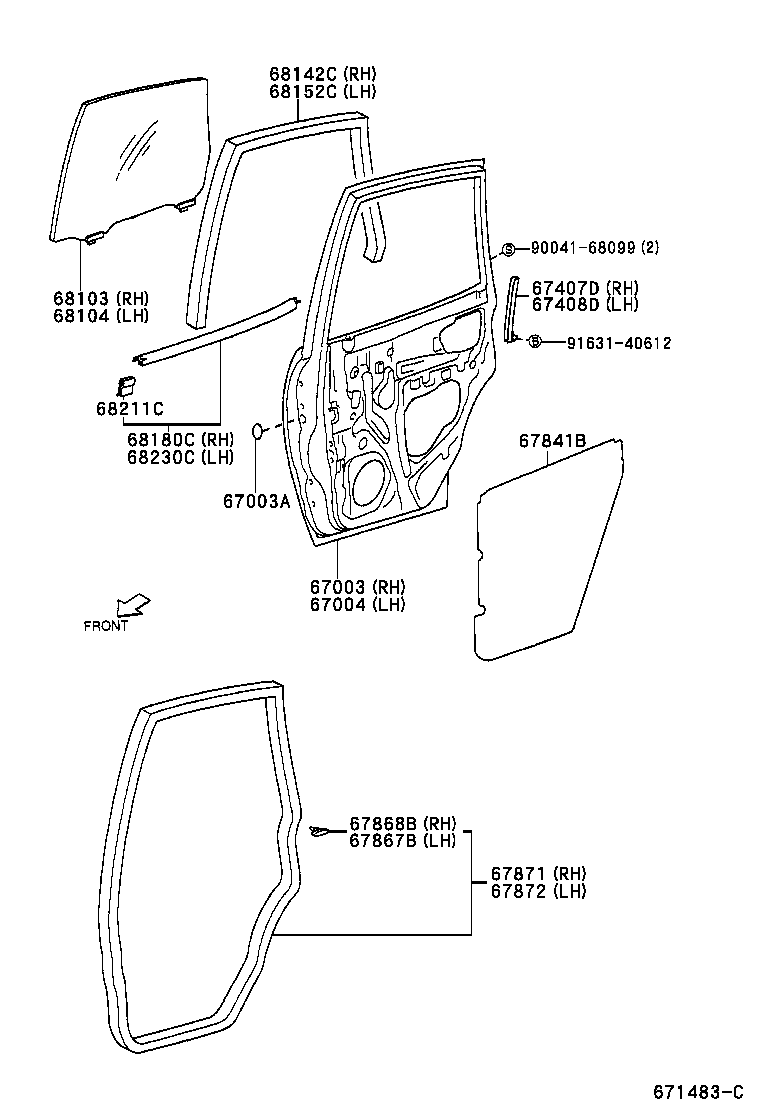

ILLUST NO. 2 OF 3(9809- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-97201 |
M10#,11# |
1 | ||
| 67003A - PLUG, HOLE(FOR REAR DOOR PANEL) | ||||
| 90048-71240 |
M100,110..V ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ*(B) OR ｱｼｽﾀﾊﾟﾂｹ-ｼﾞ*(D) OR ﾘﾄﾙﾊﾟﾂｹ-ｼﾞ |
2 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-97201 |
M10#,11# |
1 | ||
| 67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH | ||||
| 67407-97201 |
M10#,11# |
1 | ||
| 67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH | ||||
| 67408-97201 |
M10#,11# |
1 | ||
| 67841B - COVER, REAR DOOR SERVICE HOLE | ||||
| 67841-97201 |
M10#,11#..V,VS |
2 | ||
| 67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67867-97204 |
M10#,11# |
18 | ||
| 67868B - CLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67868-97204 |
M10#,11# |
18 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-97201 |
M10#,11# |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-97201 |
M10#,11# |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-97203 |
M10#,11# *UVCTT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68103-97201 |
M100,110..LVVT;M100,110..V..WVVT *TT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68103-97202 |
M10#,11# *TT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,ｱﾘ(ﾌﾟﾗｲﾊﾞｼ- ｶﾞﾗｽ) |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-97203 |
M10#,11# *UVCTT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68104-97201 |
M100,110..LVVT;M100,110..V..WVVT *TT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68104-97202 |
M10#,11# *TT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,ｱﾘ(ﾌﾟﾗｲﾊﾞｼ- ｶﾞﾗｽ) |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-97201 |
M10#,11# |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-97201 |
M10#,11# |
1 | ||
| 68180C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH | ||||
| 68180-97201 |
M10#,11# |
1 | ||
| 68211C - CLIP(FOR REAR DOOR GLASS WEATHERSTRIP) | ||||
| 68211-87702 |
M10#,11# |
5 | ||
| 68230C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH | ||||
| 68230-97201 |
M10#,11# |
1 | ||
| Common parts | ||||
| 90041-68099 | ||||
| 91631-40612 | ||||

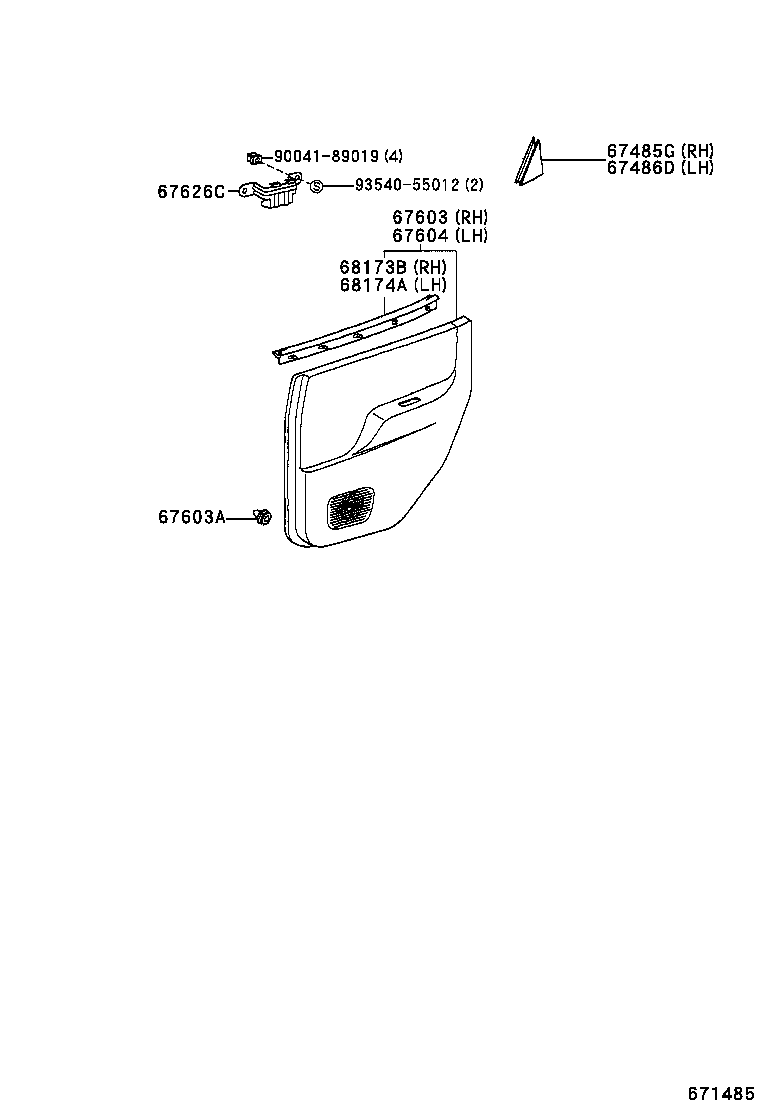

ILLUST NO. 1 OF 3(9809- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67485G - SEAL, REAR DOOR REAR LOWER FRAME, RH | ||||
| 67485-97201 |
M10#,11# |
1 | ||
| 67486D - SEAL, REAR DOOR REAR LOWER FRAME, LH | ||||
| 67486-97201 |
M10#,11# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-9722503 |
M100,110 ﾄﾘﾑ ﾀｲﾌﾟ (FDS6),GRAY,TRIMS6 |
1 | ||
| 67630-9720103 |
M100,110..V ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ*(B),DARK GRAY,TRIMS6 |
1 | ||
| 67630-9722503 |
M100,110..V ﾄﾘﾑ ﾀｲﾌﾟ (FDS6),GRAY,TRIMS6 |
1 | ||
| 67630-9720503 |
M100,110..V DARK GRAY,TRIMS6 |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-87204 |
M100,110 |
14 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-9720503 |
M100,110..V DARK GRAY,TRIMS6 |
1 | ||
| 67640-9722503 |
M100,110..V ﾄﾘﾑ ﾀｲﾌﾟ (FDS6),GRAY,TRIMS6 |
1 | ||
| 67640-9722503 |
M100,110 ﾄﾘﾑ ﾀｲﾌﾟ (FDS6),GRAY,TRIMS6 |
1 | ||
| 67640-9720103 |
M100,110..V ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ*(B),DARK GRAY,TRIMS6 |
1 | ||
| 67626C - BRACKET, REAR DOOR TRIM, NO.2 | ||||
| 67626-97201 |
M10#,11# |
2 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-97201 |
M10#,11# |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-97201 |
M10#,11# |
1 | ||
| Common parts | ||||
| 90041-89019 | ||||
| 93540-55012 | ||||
