M110A-GPNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

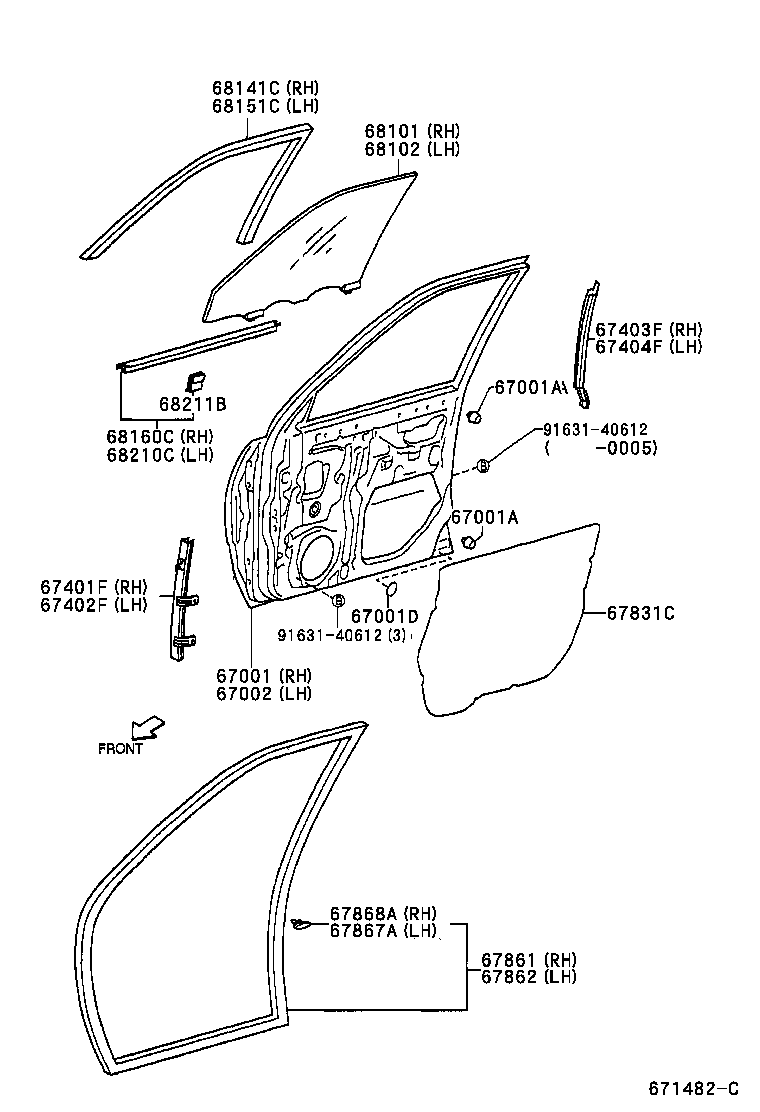

ILLUST NO. 2 OF 3(9809- )

Click highlighted areas on diagram

diagram 67001 67001A 67001A 67001D 67002 67401F 67402F 67403F 67404F 67831C 67861 67862 67867A 67868A 68101 68102 68141C 68151C 68160C 68210C 68211B 9163140612 9163140612
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-97201

M10#,11#

 1
67001A - CUSHION, FRONT DOOR PANEL
90045-41232

M10#,11#

 4
67001A - CUSHION, FRONT DOOR PANEL
90045-41232

M10#,11#

 4
67001D - COVER, HOLE(FOR FRONT DOOR PANEL)
90048-74004

M101,111;M100,110..V;M100,110..X..WVVT

 2
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-97201

M10#,11#

 1
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-97201

M10#,11#

 1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-97201

M10#,11#

 1
67831C - COVER, FRONT DOOR SERVICE HOLE
67831-97202

M10#,11#

 2
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-97201

M10#,11#

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-97201

M10#,11#

 1
67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
67867-97203

M10#,11#

 17
67868A - CLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR)
67868-97203

M10#,11#

 17
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-97202

M10#,11#

*UVCTT,厚さ=3.1,ｸﾞﾘｰﾝ

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-97202

M10#,11#

*UVCTT,厚さ=3.1,ｸﾞﾘｰﾝ

 1
68141C - RUN, FRONT DOOR GLASS, RH
68141-97202

M100,110..V

 1
68151C - RUN, FRONT DOOR GLASS, LH
68151-97202

M101,111;M100,110..V;M100,110..X..WVVT

 1
68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68160-97201

M10#,11#

 1
68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68210-97201

M10#,11#

 1
68211B - CLIP(FOR FRONT DOOR GLASS WEATHERSTRIP)
68211-87702

M10#,11#

 5
Common parts
91631-40612

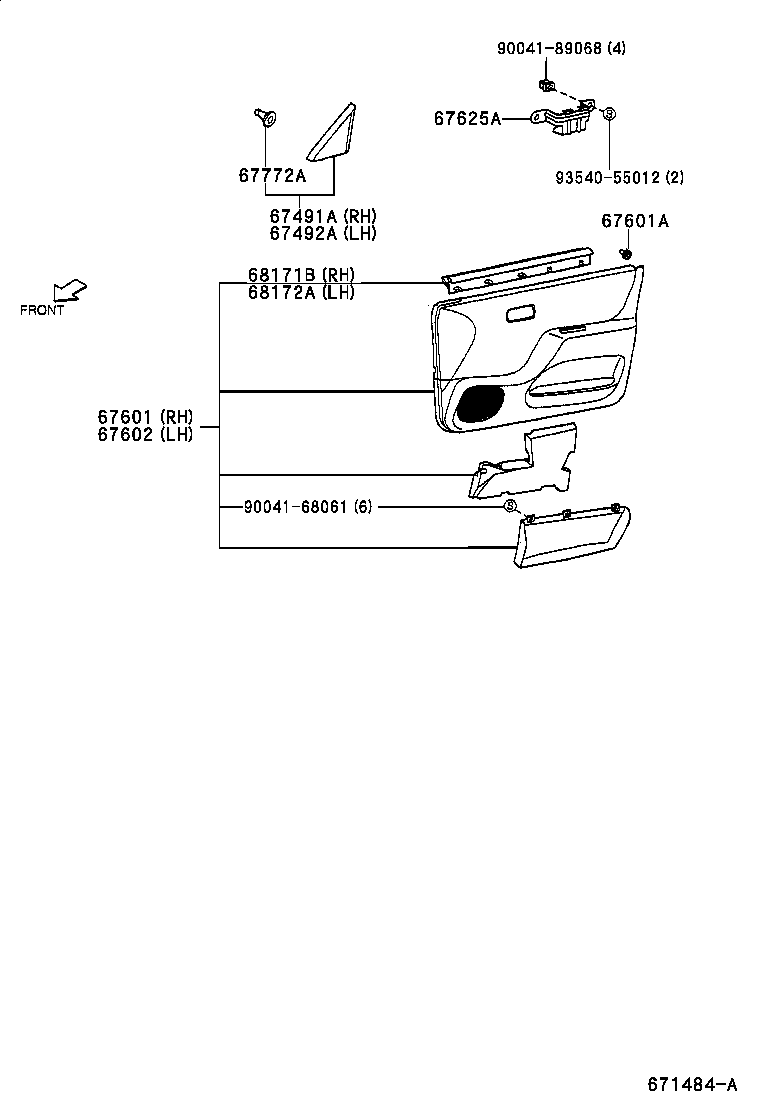

ILLUST NO. 1 OF 3(9809- )

Click highlighted areas on diagram

diagram 67491A 67492A 67601 67601A 67602 67625A 67772A 68171B 68172A 9004168061 9004189068 9354055012
Part # Description Qty Price
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-97201

M10#,11#

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-97201

M10#,11#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-9722703

M100,110..V

ﾄﾘﾑ ﾀｲﾌﾟ (FDS6),GRAY,TRIMS6

 1
67610-9720503

M100,110..V

ﾄﾘﾑ ﾀｲﾌﾟ (FAS6),DARK GRAY,TRIMS6

 1
67610-9720103

M100,110..V

ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ*(B),DARK GRAY,TRIMS6

 1
67610-9722703

M100,110

ﾄﾘﾑ ﾀｲﾌﾟ (FDS6 OR LAS6),GRAY,TRIMS6

 1
67610-9721203

M100,110..V

ｱﾘ(ﾚｶﾛｼ-ﾄ),DARK GRAY,TRIMS6

 1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-87204

M10#,11#

 16
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-9720503

M100,110..V

ﾄﾘﾑ ﾀｲﾌﾟ (FAS6),DARK GRAY,TRIMS6

 1
67620-9720103

M100,110..V

ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ*(B),DARK GRAY,TRIMS6

 1
67620-9723203

M100,110..V

ﾄﾘﾑ ﾀｲﾌﾟ (FDS6),GRAY,TRIMS6

 1
67620-9723203

M100,110

ﾄﾘﾑ ﾀｲﾌﾟ (FDS6 OR LAS6),GRAY,TRIMS6

 1
67620-9721203

M100,110..V

ｱﾘ(ﾚｶﾛｼ-ﾄ),DARK GRAY,TRIMS6

 1
67625A - BRACKET, FRONT DOOR TRIM, NO.1
67625-97201

M10#,11#

 2
67772A - CAP, FRONT DOOR TRIM RETAINER
67772-87101

M10#,11#

 2
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-97201

M10#,11#

 1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-97201

M10#,11#

 1
Common parts
90041-68061
90041-89068
93540-55012
