M110A-GPNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )

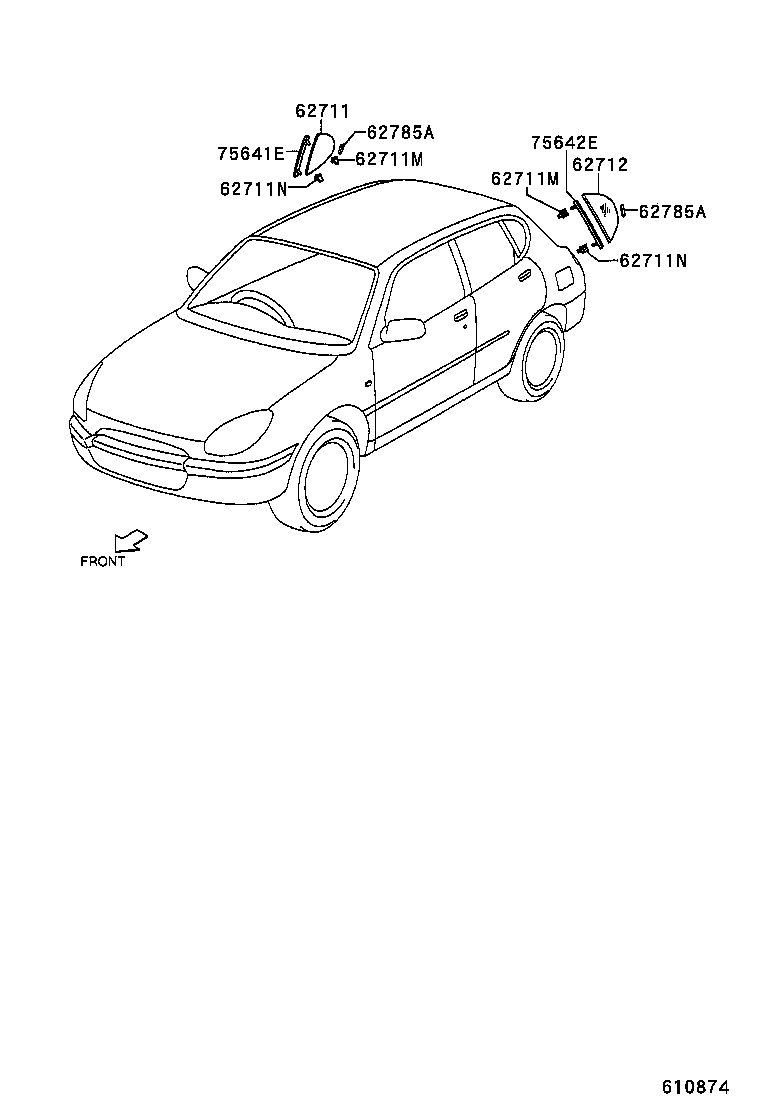

Click highlighted areas on diagram

diagram 62711 62711M 62711M 62711N 62711N 62712 62785A 62785A 75641E 75642E
Part # Description Qty Price
62711 - GLASS, QUARTER WINDOW, RH
62711-97203

M10#,11#

*UVCTT,厚さ=3.1,ｸﾞﾘｰﾝ

 1
62711-97202

M10#,11#

*TT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ

 1
62711-97201

M100,110..LVVT;M100,110..V..WVVT

*TT,厚さ=3.1,ｸﾞﾘｰﾝ

 1
62711M - GROMMET, QUARTER WINDOW GLASS, NO.1
90044-80449

M10#,11#

 2
62711M - GROMMET, QUARTER WINDOW GLASS, NO.1
90044-80449

M10#,11#

 2
62711N - GROMMET, QUARTER WINDOW GLASS, NO.2
90044-80536

M10#,11#

 2
62711N - GROMMET, QUARTER WINDOW GLASS, NO.2
90044-80536

M10#,11#

 2
62712 - GLASS, QUARTER WINDOW, LH
62712-97201

M100,110..LVVT;M100,110..V..WVVT

*TT,厚さ=3.1,ｸﾞﾘｰﾝ

 1
62712-97203

M10#,11#

*UVCTT,厚さ=3.1,ｸﾞﾘｰﾝ

 1
62712-97202

M10#,11#

*TT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ

 1
62785A - SPACER, QUARTER WINDOW GLASS
62785-97201

M10#,11#

 2
62785A - SPACER, QUARTER WINDOW GLASS
62785-97201

M10#,11#

 2
75641E - MOULDING, QUARTER WINDOW, RH
75641-97201

M10#,11#

 1
75642E - MOULDING, QUARTER WINDOW, LH
75642-97201

M10#,11#

 1
