M110A-GPNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )

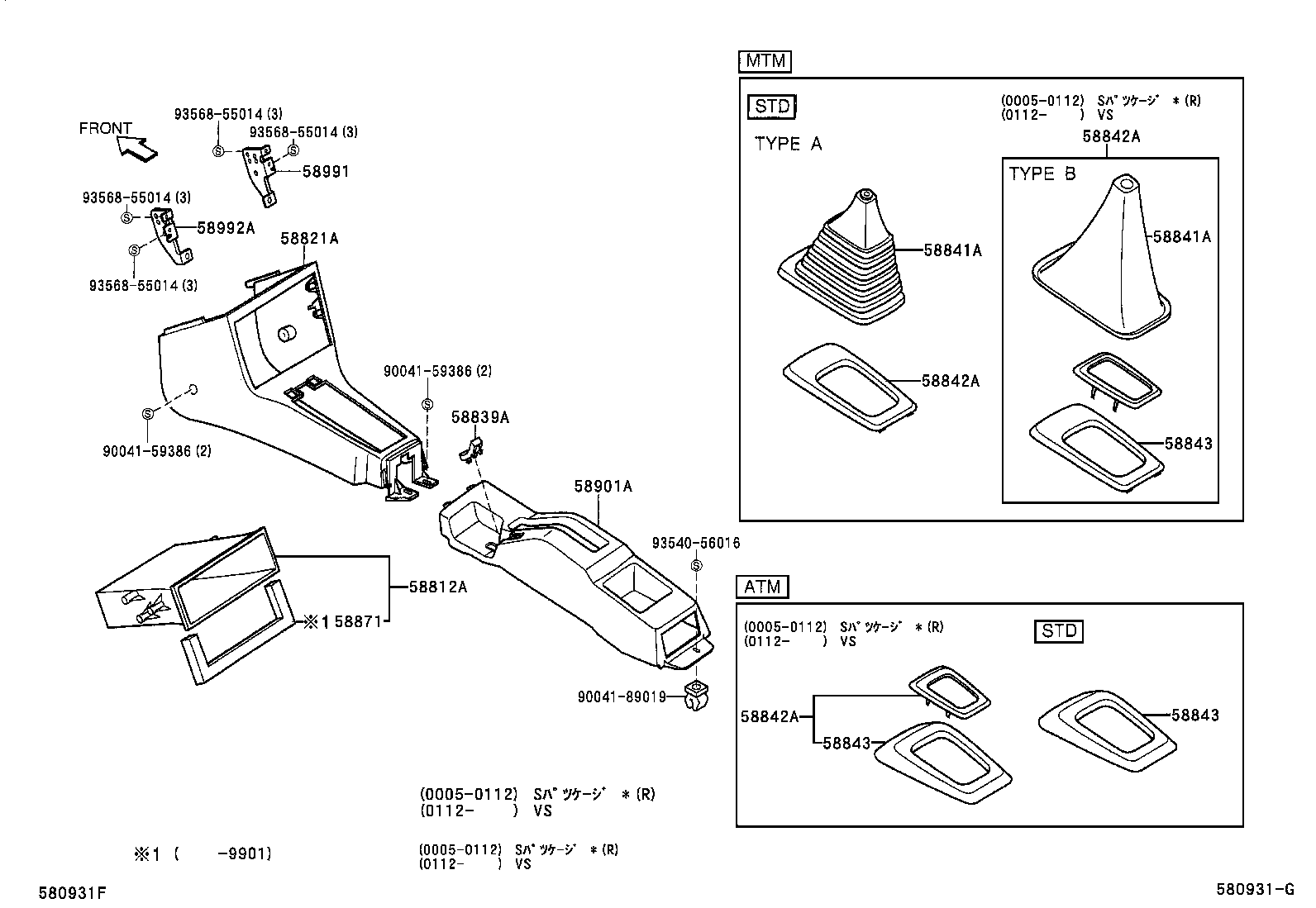

Click highlighted areas on diagram

diagram 58812A 58821A 58839A 58841A 58841A 58842A 58842A 58842A 58843 58843 58843 58871 58901A 58991 58992A 9004159386 9004159386 9004189019 9354056016 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
58812A - BOX, CONSOLE, LOWER
58812-97201

M100,110

 1
58812-97202

M100,110

 1
58821A - PANEL, CONSOLE
58821-9720103

M10#,11#

DARK GRAY,TRIMS6

 1
58839A - COVER, CONSOLE BOX HOLE
58839-9720103

M10#,11#

DARK GRAY,TRIMS6

 1
58843 - BEZEL, SHIFTING HOLE
58843-9720103

M10#,11#..ATM..(V,X)

DARK GRAY,TRIMS6

 1
58843 - BEZEL, SHIFTING HOLE
58843-9720103

M10#,11#..ATM..(V,X)

DARK GRAY,TRIMS6

 1
58843 - BEZEL, SHIFTING HOLE
58843-9720103

M10#,11#..ATM..(V,X)

DARK GRAY,TRIMS6

 1
58871 - CUSHION, CONSOLE BOX
58871-97202

M100,110

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58911-9720203

M100,110..LVVT;M100,110..X..WVVT

DARK GRAY,TRIMS6

 1
58991 - BRACKET, CONSOLE BOX MOUNTING, UPPER
58991-97201

M10#,11#

 1
58992A - BRACKET, CONSOLE BOX MOUNTING, UPR LH
58992-97201

M10#,11#

 1
Common parts
90041-59386
90041-89019
93540-56016
93568-55014
