M110A-GPNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

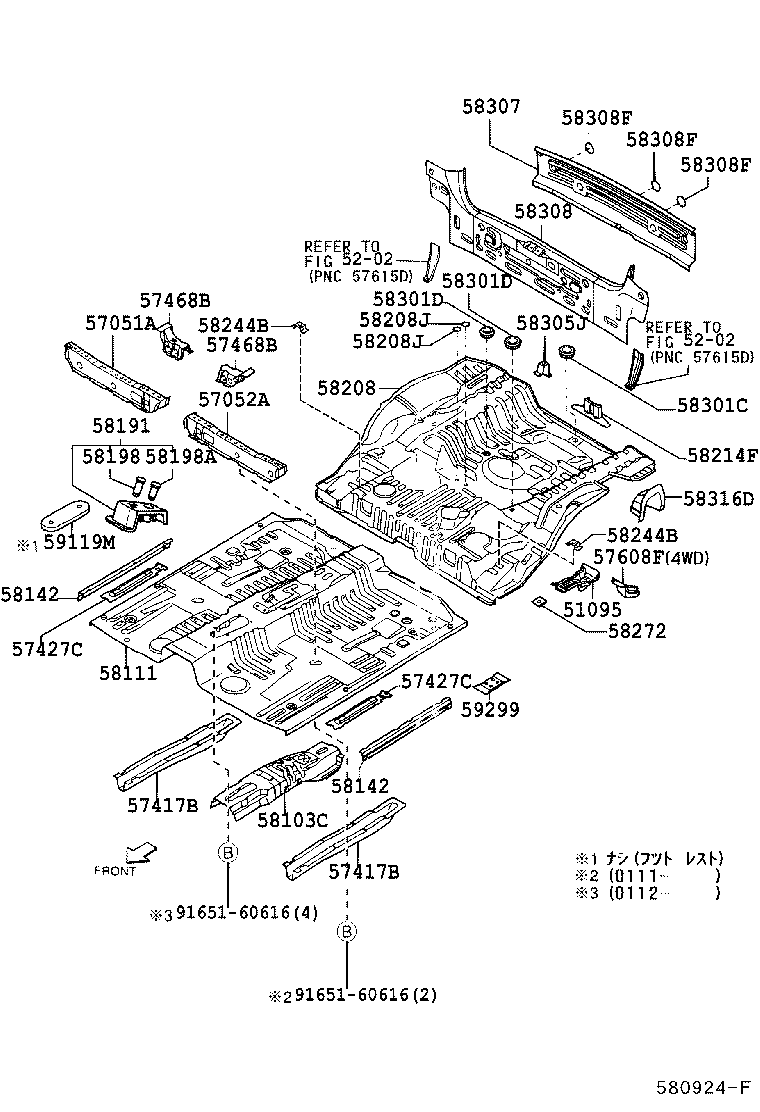

ILLUST NO. 2 OF 2(9809- )

Click highlighted areas on diagram

diagram 51095 5202 5202 57051A 57052A 57417B 57417B 57427C 57427C 57468B 57468B 57608F 58103C 58111 58142 58142 58191 58198 58198A 58208 58208J 58208J 58214F 58244B 58244B 58272 58301C 58301D 58301D 58305J 58307 58308 58308F 58308F 58308F 58316D 59119M 59299 9165160616 9165160616
Part # Description Qty Price
51095 - HOOK, TRANSPORT, REAR
51095-97201

M10#,11#

 1
57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57051-97202

M11#

 1
57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57052-97202

M11#

 1
57417B - REINFORCEMENT, FRONT FLOOR UNDER
57417-97202

M100,110

 2
57417B - REINFORCEMENT, FRONT FLOOR UNDER
57417-97202

M100,110

 2
57427C - REINFORCEMENT, FRONT FLOOR, UPPER
57427-97202

M100,110

 2
57427C - REINFORCEMENT, FRONT FLOOR, UPPER
57427-97202

M100,110

 2
57468B - BRACKET, FRONT SEAT, REAR
57468-97201

M10#,11#

 2
57468B - BRACKET, FRONT SEAT, REAR
57468-97201

M10#,11#

 2
57608F - BRACKET, FUEL TANK MOUNTING, REAR RH
57608-97201

M11#

 1
58103C - REINFORCEMENT SUB-ASSY, FRONT FLOOR, FRONT
58087-97201

M10#,11#

 1
58111 - PAN, FRONT FLOOR
58111-97202

M11#

 1
58142 - REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN
58141-97201

M10#,11#

 2
58142 - REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN
58141-97201

M10#,11#

 2
58191 - FOOTREST, FRONT FLOOR
58190-97201

M10#,11#

 1
58208 - PAN, CENTER FLOOR
58311-97201

M100,110

 1
58208J - COVER, HOLE
90048-74011

M10#,11#..V;M101,111..5F..VS

 4
58208J - COVER, HOLE
90048-74011

M10#,11#..V;M101,111..5F..VS

 4
58214F - BRACKET, JACK SET
58214-97201

M10#,11#

 1
58244B - BRACKET, REAR SEAT CUSHION MOUNTING
58244-87201

M10#,11#

 2
58244B - BRACKET, REAR SEAT CUSHION MOUNTING
58244-87201

M10#,11#

 2
58301C - PLUG, HOLE(FOR REAR FLOOR NO.1)
90048-71141

M10#,11#

 1
58301D - PLUG, HOLE(FOR REAR FLOOR NO.2)
90048-71099

M10#,11#

 2
58301D - PLUG, HOLE(FOR REAR FLOOR NO.2)
90048-71099

M10#,11#

 2
58305J - BRACKET, SPARE WHEEL CARRIER
58305-97201

M10#,11#

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58371-97201

M10#,11#

 1
58308 - PANEL SUB-ASSY, BODY LOWER BACK, INNER
58308-97201

M10#,11#

 1
58308F - PLUG, HOLE(FOR LOWER BACK)
90048-74029

M100,110

 3
58308F - PLUG, HOLE(FOR LOWER BACK)
90048-74029

M100,110

 3
58308F - PLUG, HOLE(FOR LOWER BACK)
90048-74029

M100,110

 3
58316D - EXTENSION, REAR FLOOR PAN, LH
58316-97201

M10#,11#

 1
59119M - CUSHION, FRONT FLOOR
58119-97201

M10#,11#..V,VS

 1
Common parts
91651-60616
Linked diagrams
5202

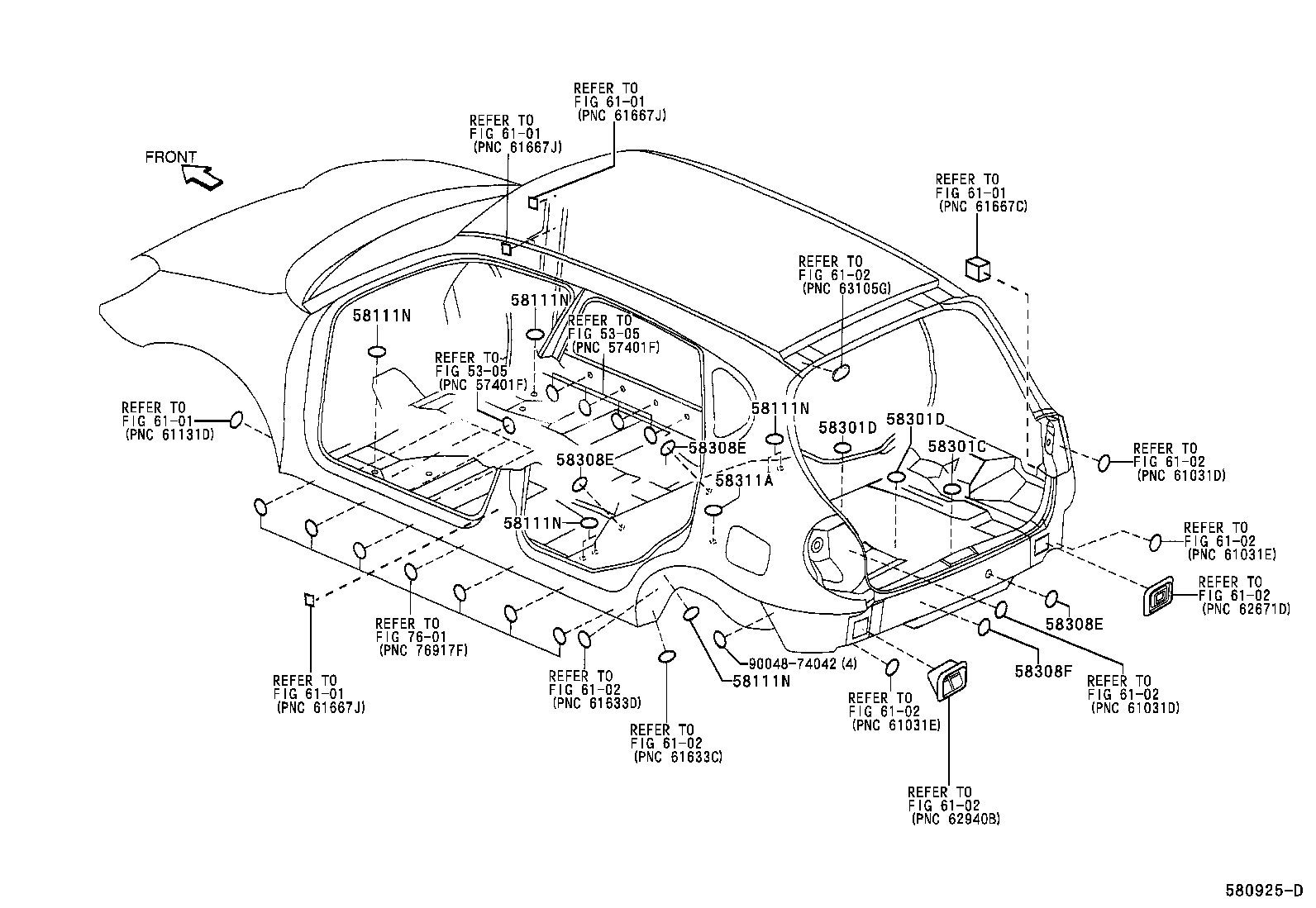

ILLUST NO. 1 OF 2(9809- )

Click highlighted areas on diagram

diagram 5305 5305 58111N 58111N 58111N 58111N 58111N 58301C 58301D 58301D 58308E 58308E 58308E 58308F 58311A 6101 6101 6101 6101 6101 6102 6102 6102 6102 6102 6102 6102 6102 6102 7601 9004874042
Part # Description Qty Price
58111N - PLUG, HOLE(FOR FRONT FLOOR)
90048-71116

M100,110

 4
58111N - PLUG, HOLE(FOR FRONT FLOOR)
90048-71116

M100,110

 4
58111N - PLUG, HOLE(FOR FRONT FLOOR)
90048-71116

M100,110

 4
58111N - PLUG, HOLE(FOR FRONT FLOOR)
90048-71116

M100,110

 4
58111N - PLUG, HOLE(FOR FRONT FLOOR)
90048-71116

M100,110

 4
58301C - PLUG, HOLE(FOR REAR FLOOR NO.1)
90048-71141

M10#,11#

 1
58301D - PLUG, HOLE(FOR REAR FLOOR NO.2)
90048-71099

M10#,11#

 2
58301D - PLUG, HOLE(FOR REAR FLOOR NO.2)
90048-71099

M10#,11#

 2
58308E - COVER, HOLE(FOR LOWER BACK)
90048-74004

M100,110

 2
58308E - COVER, HOLE(FOR LOWER BACK)
90048-74004

M100,110

 2
58308E - COVER, HOLE(FOR LOWER BACK)
90048-74004

M100,110

 2
58308F - PLUG, HOLE(FOR LOWER BACK)
90048-74029

M100,110

 3
58311A - PLUG, HOLE(FOR FLOOR PAN)
90048-71151

M100,110..V

 1
Common parts
90048-74042
Linked diagrams
5305
6101
6102
7601
