M110A-GPNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )

Click highlighted areas on diagram

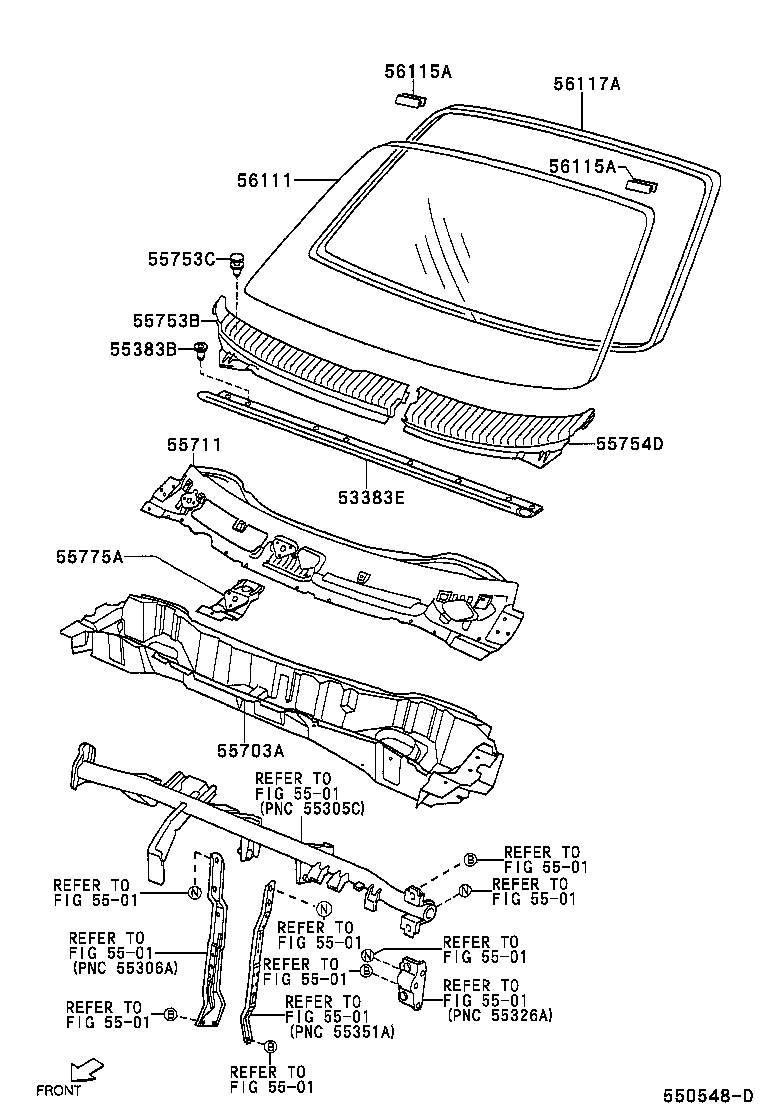

diagram 53383E 5501 5501 5501 5501 5501 5501 5501 5501 5501 5501 5501 5501 55383B 55703A 55711 55753B 55753C 55754D 55775A 56111 56115A 56115A 56117A
Part # Description Qty Price
53383E - WEATHERSTRIP, HOOD TO COWL TOP
53383-97201

M10#,11#

 1
55383B - CLIP(FOR WEATHERSTRIP)
90044-6704921

M10#,11#

BLACK,B37 ,B52 ,G36 ,G37 ,R27 ,R29 ,S20 ,S21 ,S25 ,S26 ,T16 ,W09 ,W16 ,Y06

 2
55703A - PANEL SUB-ASSY, COWL TOP, INNER
55703-97201

M10#,11#

 1
55711 - PANEL, COWL TOP, OUTER
55711-97201

M10#,11#

 1
55753B - COVER, WINDSHIELD, RH
55753-97201

M10#,11#

 1
55753C - CLIP(FOR COVER WINDSHIELD, RH)
90044-68196

M10#,11#

 12
55754D - COVER, WINDSHIELD, LH
55754-97201

M10#,11#

 1
55775A - RETAINER, WINDSHIELD WIPER SHAFT
55775-97201

M10#,11#

 1
56111 - GLASS, WINDSHIELD
56111-97202

M10#,11#

*TL,T=4.7,ｸﾞﾘｰﾝ

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-87401

M10#,11#

 2
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-87401

M10#,11#

 2
56117A - DAM, WINDOW GLASS ADHESIVE
56117-97201

M10#,11#

 1
Linked diagrams
5501
