M110A-GPNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809-0005)

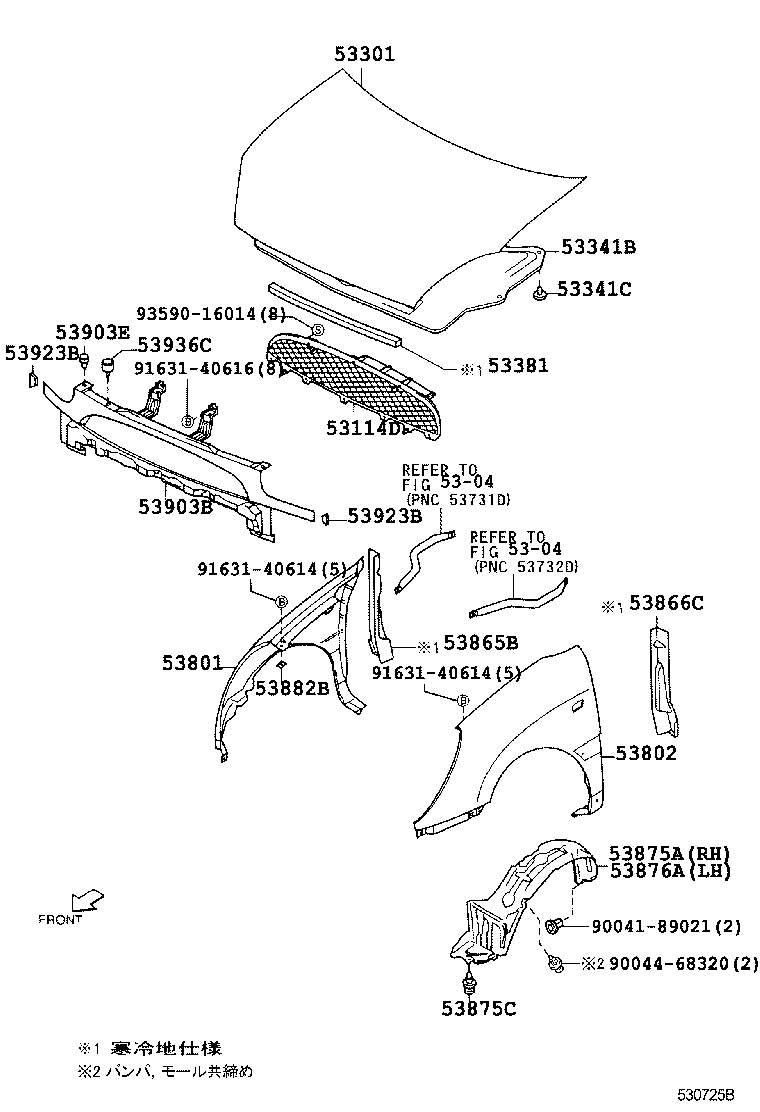

Click highlighted areas on diagram

diagram 5304 5304 53114D 53301 53341B 53341C 53381 53801 53802 53865B 53866C 53875A 53875C 53876A 53882B 53903B 53903E 53923B 53923B 53936C 9004189021 9004468320 9163140614 9163140614 9163140616 9359016014
Part # Description Qty Price
53114D - GRILLE, RADIATOR, UPPER
53114-97201

M100,110

 1
53301 - HOOD SUB-ASSY
53301-97201

M10#,11#

 1
53341B - INSULATOR, HOOD
53341-97201

M10#,11#

 1
53341C - CLIP(FOR HOOD INSULATOR)
90044-68280

M10#,11#

 9
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-87202

M10#,11#

 1
53801 - FENDER SUB-ASSY, FRONT RH
53811-97201

M10#,11#

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-97201

M10#,11#

 1
53865B - PLATE, FRONT FENDER EXTENSION, RH
53865-97201

M10#,11#

 1
53866C - PLATE, FRONT FENDER EXTENSION, LH
53866-97201

M10#,11#

 1
53875A - LINER, FRONT FENDER, RH
53875-97201

M10#,11#

 1
53875C - CLIP, FRONT FENDER LINER
90044-68060

M10#,11#

 12
53876A - LINER, FRONT FENDER, LH
53876-97201

M10#,11#

 1
53882B - SEAL, FRONT FENDER, RH
53882-87701

M10#,11#

 2
53903B - PANEL SUB-ASSY, FRONT END
53903-97201

M100,110

 1
53903E - CLIP, FRONT END PANEL
90044-68149

M10#,11#

 2
53923B - PROTECTOR, FRONT BALANCE PANEL
53923-97201

M10#,11#

 2
53923B - PROTECTOR, FRONT BALANCE PANEL
53923-97201

M10#,11#

 2
53936C - CUSHION
90045-41224

M10#,11#

 2
Common parts
90041-89021
90044-68320
91631-40614
91631-40616
93590-16014
Linked diagrams
5304
