M110A-GPNF (1998)
Toyota Duet
Production
Sep 1998
-
May 2000
Engine
EJDE
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)

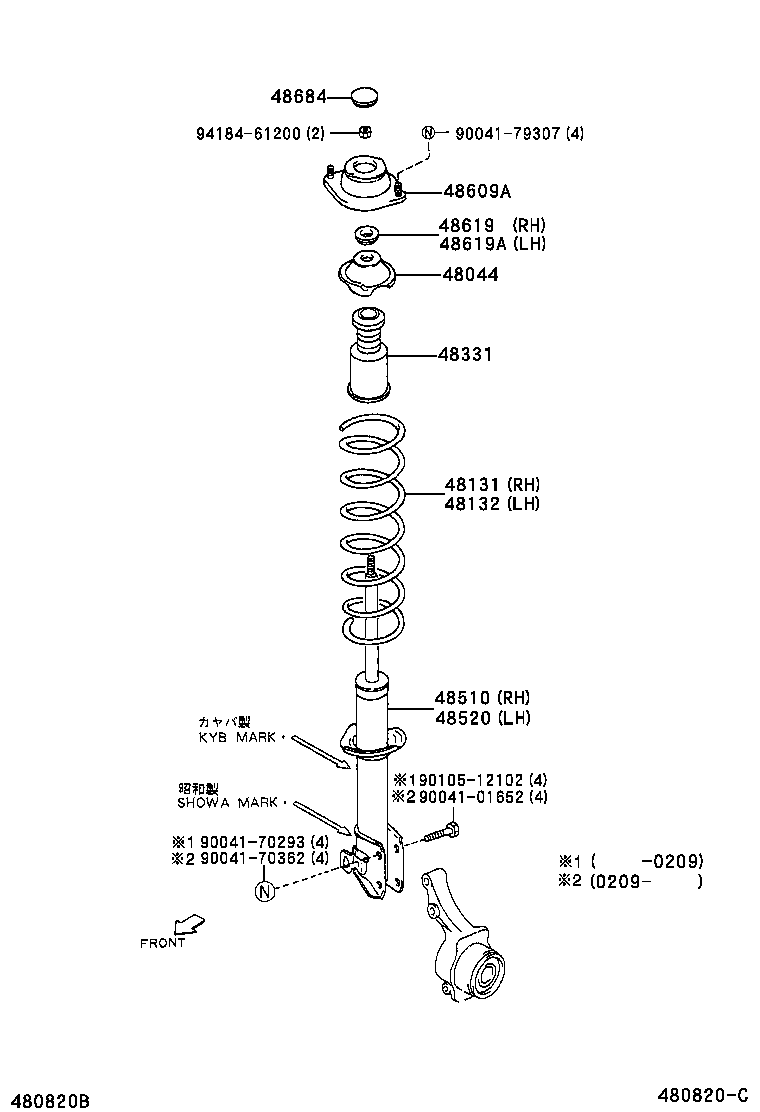

ILLUST NO. 1 OF 2(9809- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48044 - SEAT SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48470-97201 |
M100,110 |
2 | ||
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-97202 |
M110 |
1 | ||
| 48131-97235 |
M110 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-97235 |
M110 |
1 | ||
| 48131-97202 |
M110 |
1 | ||
| 48331 - BUMPER, FRONT SPRING, NO.1 | ||||
| 48331-87204 |
M10#,11# |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-97242 |
M110 KYB |
1 | ||
| 48510-97249 |
M110 SHOWA |
1 | ||
| 48510-97248 |
M110 KYB |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-97249 |
M110 SHOWA |
1 | ||
| 48520-97242 |
M110 KYB |
1 | ||
| 48520-97248 |
M110 KYB |
1 | ||
| 48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION | ||||
| 48609-97201 |
M100,110 |
2 | ||
| 48609-97202 |
M100,110 |
2 | ||
| 48619 - BEARING, STRUT MOUNTING, RH | ||||
| 48619-97201 |
M10#,11# |
1 | ||
| 48619A - BEARING, STRUT MOUNTING, LH | ||||
| 48619-97201 |
M10#,11# |
1 | ||
| 48684 - COVER, BEARING DUST | ||||
| 48684-87202 |
M10#,11# |
2 | ||
| Common parts | ||||
| 90041-01652 | ||||
| 90041-70293 | ||||
| 90041-70362 | ||||
| 90041-79307 | ||||
| 90105-12102 | ||||
| 94184-61200 | ||||
ILLUST NO. 2 OF 2(9809- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48674 - CUSHION, STRUT BAR | ||||
| 48674-97202 |
M10#,11# |
4 | ||
| 48674 - CUSHION, STRUT BAR | ||||
| 48674-97202 |
M10#,11# |
4 | ||
| 48674 - CUSHION, STRUT BAR | ||||
| 48674-97202 |
M10#,11# |
4 | ||
| 48674 - CUSHION, STRUT BAR | ||||
| 48674-97202 |
M10#,11# |
4 | ||
| 48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION) | ||||
| 90049-32005 |
M10#,11# |
2 | ||
| 48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION) | ||||
| 90049-32005 |
M10#,11# |
2 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-97201 |
M100,110 外径=17 |
1 | ||
| 48811-97203 |
M100,110 外径=18 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-97201 |
M100,110 ID=17 |
2 | ||
| 48815-97203 |
M100,110 ID=18 |
2 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-97201 |
M100,110 ID=17 |
2 | ||
| 48815-97203 |
M100,110 ID=18 |
2 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-87203 |
M100,110 |
2 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-87203 |
M100,110 |
2 | ||
| Common parts | ||||
| 90041-01526 | ||||
| 94184-01200 | ||||
