M110A-GPNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )

Click highlighted areas on diagram

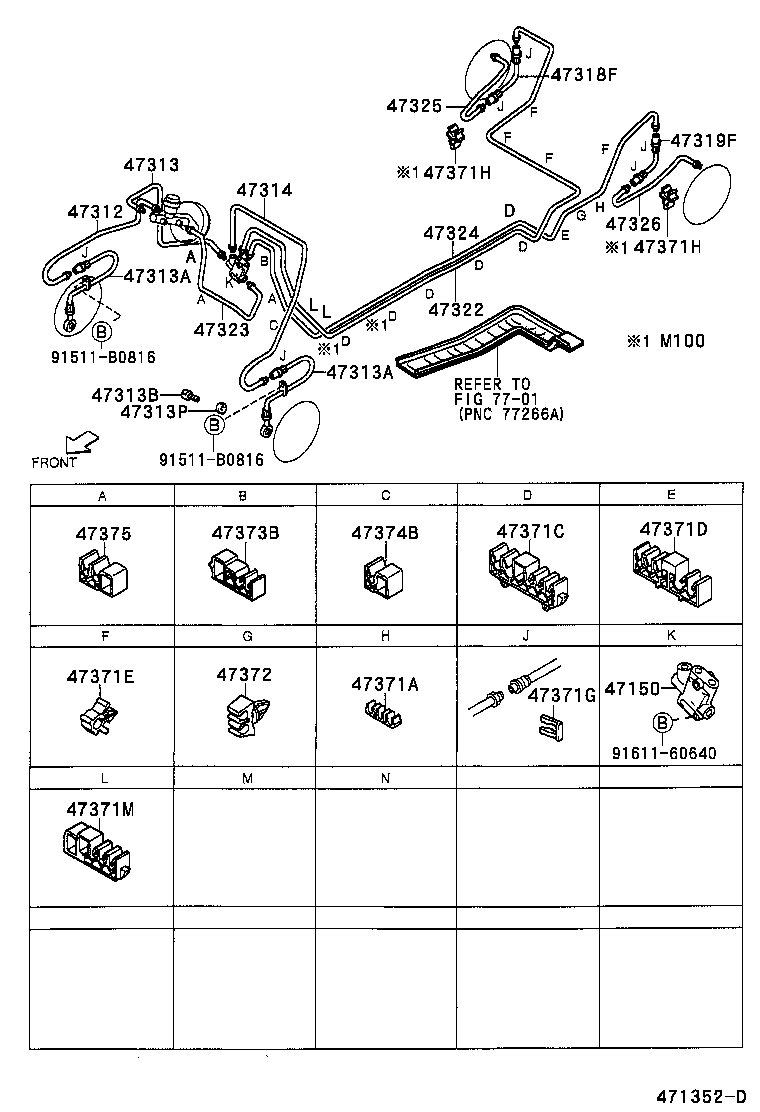

diagram 47150 47312 47313 47313A 47313A 47313B 47313P 47314 47318F 47319F 47322 47323 47324 47325 47326 47371A 47371C 47371D 47371E 47371G 47371H 47371H 47371M 47372 47373B 47374B 47375 7701 91511B0816 91511B0816 9161160640
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-97201

M100,110..V

 1
47150-97202

M100,110..V

ｱﾘ(ABS)

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-97202

M100,110..V

ｱﾘ(ABS)

 1
47312-97201

M100,110..V

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-97202

M100,110..V

ｱﾘ(ABS)

 1
47313-97201

M100,110..V

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90049-22174

M10#,11#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90049-22174

M10#,11#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90044-01079

M10#,11#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-97201

M10#,11#

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-97201

M100,110..V

 1
47314-97202

M100,110..V

ｱﾘ(ABS)

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90049-22173

M11#

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90049-22173

M11#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-97201

M100,110..LVVT;M100,110..V..WVVT

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-97202

M100,110

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-97201

M100,110..LVVT;M100,110..V..WVVT

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-97202

M11#

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-97202

M11#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90044-64196

M100,110

 2
47371C - CLAMP, BRAKE TUBE, NO.7
90044-64657

M10#,11#

 4
47371D - CLAMP, BRAKE TUBE, NO.8
90044-64658

M10#,11#

 1
47371E - CLAMP, BRAKE TUBE, NO.9
90044-64659

M10#,11#

 4
47371G - CLAMP, BRAKE TUBE, NO.11
90044-65441

M10#,11#

 4
47371M - CLAMP, BRAKE TUBE, NO.13
90044-64695

M10#,11#

 2
47372 - CLAMP, BRAKE TUBE, NO.2
90044-64485

M10#,11#

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90044-64694

M10#,11#

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90044-64655

M10#,11#

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90044-64710

M10#,11#

 3
90044-64656

M100,110

 3
Common parts
91511-B0816
91611-60640
Linked diagrams
7701

ILLUST NO. 1 OF 2(9809-0005)

Click highlighted areas on diagram

ｱﾘ(ABS)

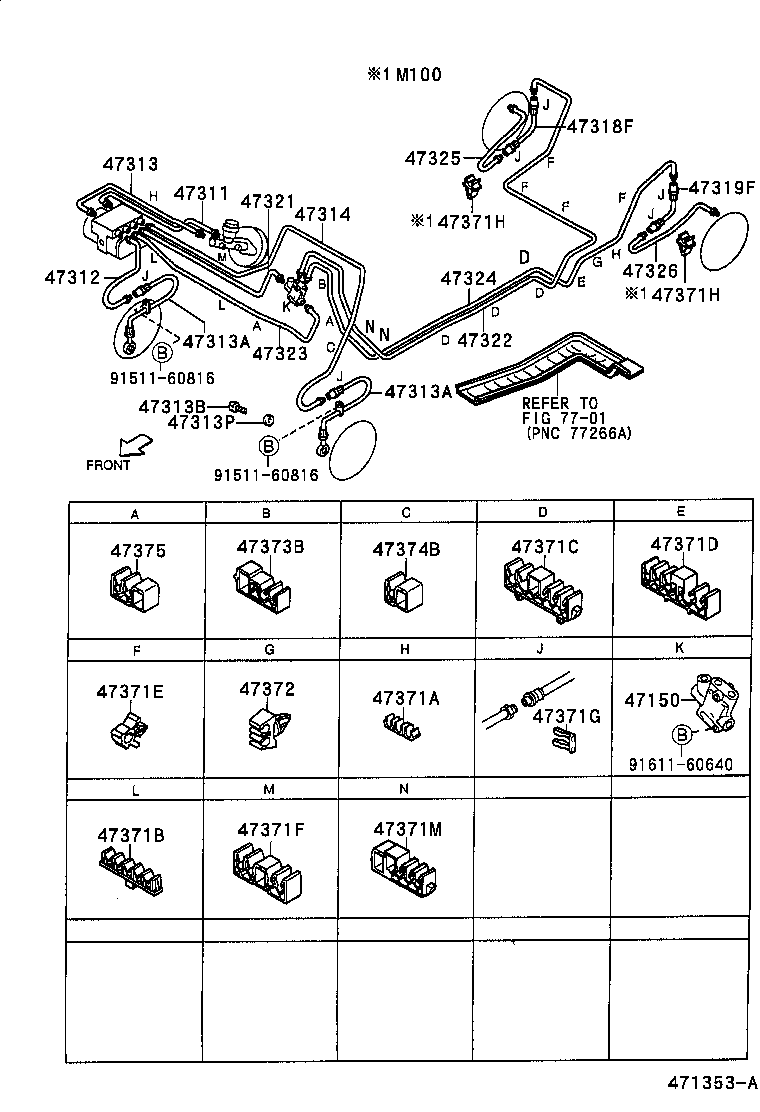

diagram 47150 47311 47312 47313 47313A 47313A 47313B 47313P 47314 47318F 47319F 47321 47322 47323 47324 47325 47326 47371A 47371B 47371C 47371D 47371E 47371F 47371G 47371H 47371H 47371M 47372 47373B 47374B 47375 7701 9151160816 9151160816 9161160640
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-97201

M100,110..V

 1
47150-97202

M100,110..V

ｱﾘ(ABS)

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-97201

M100,110..V

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-97202

M100,110..V

ｱﾘ(ABS)

 1
47312-97201

M100,110..V

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-97202

M100,110..V

ｱﾘ(ABS)

 1
47313-97201

M100,110..V

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90049-22174

M10#,11#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90049-22174

M10#,11#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90044-01079

M10#,11#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-97201

M10#,11#

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-97201

M100,110..V

 1
47314-97202

M100,110..V

ｱﾘ(ABS)

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90049-22173

M11#

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90049-22173

M11#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-97201

M100,110

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-97201

M100,110..LVVT;M100,110..V..WVVT

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-97202

M100,110

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-97201

M100,110..LVVT;M100,110..V..WVVT

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-97202

M11#

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-97202

M11#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90044-64196

M100,110

 2
47371B - CLAMP, BRAKE TUBE, NO.6
90044-64591

M100,110..V

ｱﾘ(ABS)

 2
47371C - CLAMP, BRAKE TUBE, NO.7
90044-64657

M10#,11#

 4
47371D - CLAMP, BRAKE TUBE, NO.8
90044-64658

M10#,11#

 1
47371E - CLAMP, BRAKE TUBE, NO.9
90044-64659

M10#,11#

 4
47371F - CLAMP, BRAKE TUBE, NO.10
90044-64660

M100,110..V

ｱﾘ(ABS)

 1
47371G - CLAMP, BRAKE TUBE, NO.11
90044-65441

M10#,11#

 4
47371M - CLAMP, BRAKE TUBE, NO.13
90044-64695

M10#,11#

 2
47372 - CLAMP, BRAKE TUBE, NO.2
90044-64485

M10#,11#

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90044-64694

M10#,11#

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90044-64655

M10#,11#

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90044-64710

M10#,11#

 3
90044-64656

M100,110

 3
Common parts
91511-60816
91611-60640
Linked diagrams
7701

ILLUST NO. 2 OF 2(9809-0005)

Click highlighted areas on diagram

ｱﾘ(ABS)

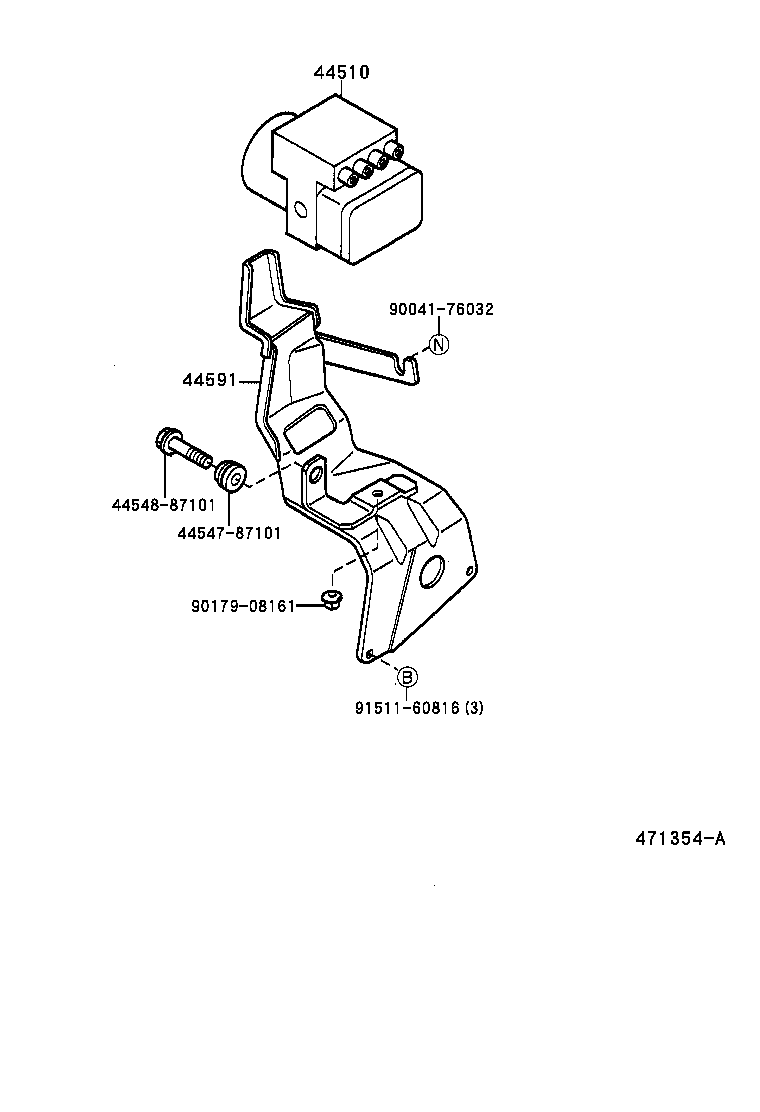

diagram 44510 4454787101 4454887101 44591 9004176032 9017908161 9151160816
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-97202

M110

 1
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44591-97201

M100,110

 1
Common parts
44547-87101
44548-87101
90041-76032
90179-08161
91511-60816
