M110A-GPNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )M11#

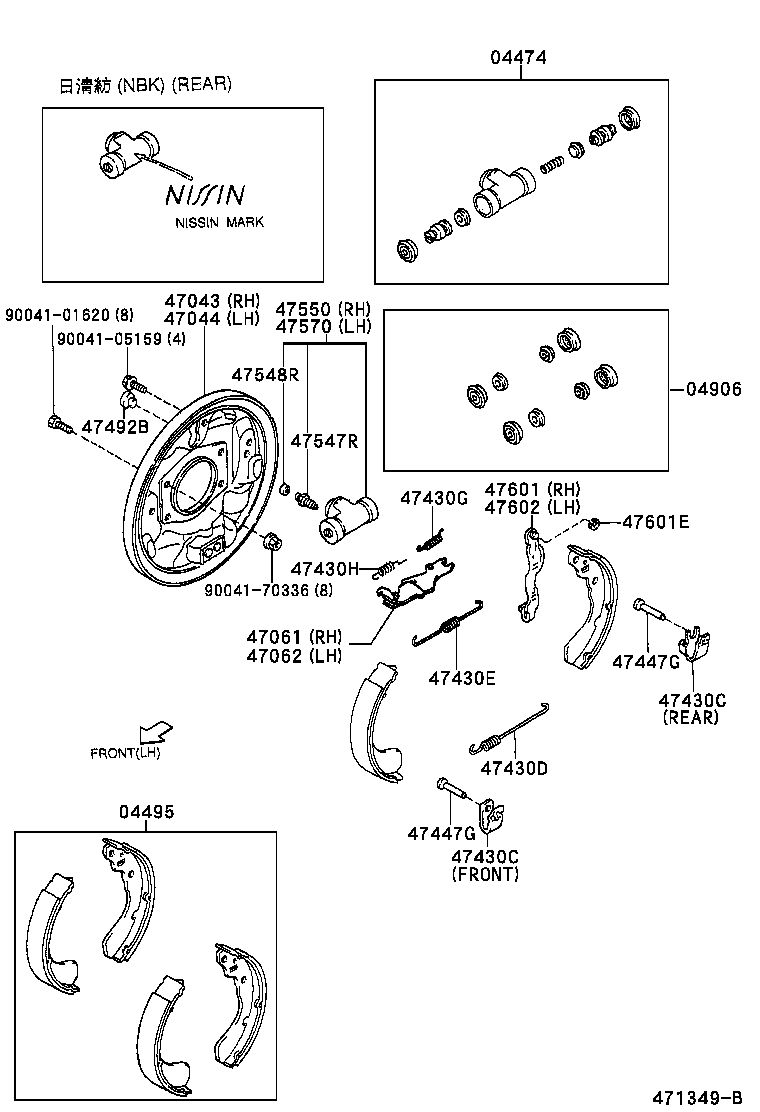

Click highlighted areas on diagram

diagram 04474 04495 04906 47043 47044 47061 47062 47430C 47430C 47430D 47430E 47430G 47430H 47447G 47447G 47492B 47547R 47548R 47550 47570 47601 47601E 47602 9004101620 9004105159 9004170336
Part # Description Qty Price
04495 - SHOE KIT, REAR BRAKE
04495-97202

M110..V

 1
04495-97203

M110..V

ｱﾘ(ABS)

 1
04906 - CUP KIT, REAR WHEEL CYLINDER
04906-87502

M11#

 1
47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043-97203

M110..V

 1
47043-97204

M110..V

ｱﾘ(ABS)

 1
47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47044-97203

M110..V

 1
47044-97204

M110..V

ｱﾘ(ABS)

 1
47061 - STRUT SET, PARKING BRAKE SHOE, RH
47061-87703

M110..V

 1
47613-87501

M110..V

ｱﾘ(ABS)

 1
47062 - STRUT SET, PARKING BRAKE SHOE, LH
47062-87703

M110..V

 1
47613-87501

M110..V

ｱﾘ(ABS)

 1
47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN)
90045-01754

M110..V

ｱﾘ(ABS)

 4
47446-87702

M110..V

ﾌﾛﾝﾄ

 2
47448-87701

M110..V

ﾘﾔ右側

 1
47449-87701

M110..V

ﾘﾔ左側

 1
47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN)
90045-01754

M110..V

ｱﾘ(ABS)

 4
47446-87702

M110..V

ﾌﾛﾝﾄ

 2
47448-87701

M110..V

ﾘﾔ右側

 1
47449-87701

M110..V

ﾘﾔ左側

 1
47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
90045-06191

M110..V

ｱﾘ(ABS)

 2
90045-06141

M110..V

 2
47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
90045-06140

M110..V

 2
90045-06185

M110..V

ｱﾘ(ABS)

 2
47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)
90045-08361

M110..V

ｱﾘ(ABS),右側

 1
90045-06139

M110..V

 2
90045-08362

M110..V

ｱﾘ(ABS),左側

 1
47430H - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)
90045-06182

M110..V

ｱﾘ(ABS),右側

 1
90045-06183

M110..V

ｱﾘ(ABS),左側

 1
90045-06151

M110..V

 2
47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47447-87503

M110..V

 4
47447-87501

M110..V

ｱﾘ(ABS)

 4
47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47447-87503

M110..V

 4
47447-87501

M110..V

ｱﾘ(ABS)

 4
47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE)
47491-87201

M110..V

ｱﾘ(ABS)

 2
47491-87701

M110..V

 4
47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47547-87506

M11#

 2
47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
47548-87204

M11#

 2
47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47560-87520

M11#

 1
47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47560-87520

M11#

 1
47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)
47601-97201

M110..V

 1
47601-87204

M110..V

ｱﾘ(ABS)

 1
47601E - RING, E(FOR REAR BRAKE)
90045-23044

M110..V

 2
47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)
47602-87204

M110..V

ｱﾘ(ABS)

 1
47602-97201

M110..V

 1
Common parts
90041-01620
90041-05159
90041-70336

(9809- )M11#

Click highlighted areas on diagram

ｱﾘ(ABS)

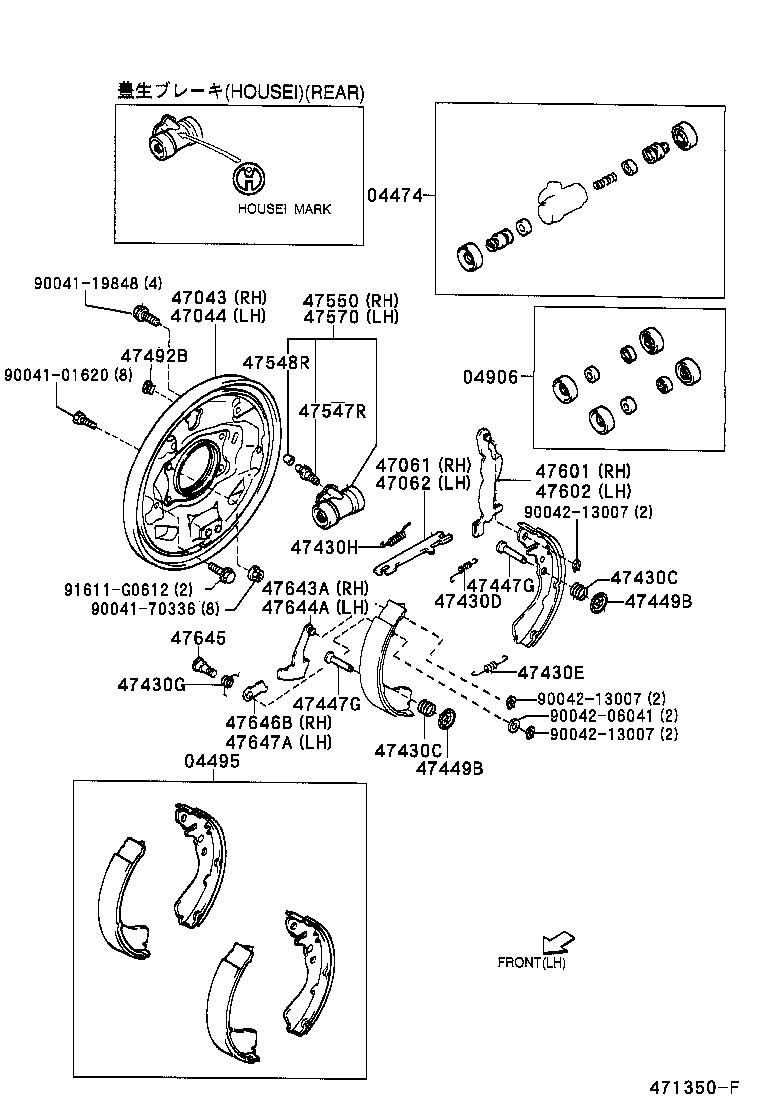

diagram 04474 04495 04906 47043 47044 47061 47062 47430C 47430C 47430D 47430E 47430G 47430H 47447G 47447G 47449B 47449B 47492B 47547R 47548R 47550 47570 47601 47602 47643A 47644A 47645 47646B 47647A 9004101620 9004119848 9004170336 9004206041 9004213007 9004213007 9004213007 91611G0612
Part # Description Qty Price
04495 - SHOE KIT, REAR BRAKE
04495-97202

M110..V

 1
04495-97203

M110..V

ｱﾘ(ABS)

 1
04906 - CUP KIT, REAR WHEEL CYLINDER
04906-87502

M11#

 1
47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043-97203

M110..V

 1
47043-97204

M110..V

ｱﾘ(ABS)

 1
47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47044-97203

M110..V

 1
47044-97204

M110..V

ｱﾘ(ABS)

 1
47061 - STRUT SET, PARKING BRAKE SHOE, RH
47061-87703

M110..V

 1
47613-87501

M110..V

ｱﾘ(ABS)

 1
47062 - STRUT SET, PARKING BRAKE SHOE, LH
47062-87703

M110..V

 1
47613-87501

M110..V

ｱﾘ(ABS)

 1
47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN)
90045-01754

M110..V

ｱﾘ(ABS)

 4
47446-87702

M110..V

ﾌﾛﾝﾄ

 2
47448-87701

M110..V

ﾘﾔ右側

 1
47449-87701

M110..V

ﾘﾔ左側

 1
47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN)
90045-01754

M110..V

ｱﾘ(ABS)

 4
47446-87702

M110..V

ﾌﾛﾝﾄ

 2
47448-87701

M110..V

ﾘﾔ右側

 1
47449-87701

M110..V

ﾘﾔ左側

 1
47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
90045-06191

M110..V

ｱﾘ(ABS)

 2
90045-06141

M110..V

 2
47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
90045-06140

M110..V

 2
90045-06185

M110..V

ｱﾘ(ABS)

 2
47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)
90045-08361

M110..V

ｱﾘ(ABS),右側

 1
90045-06139

M110..V

 2
90045-08362

M110..V

ｱﾘ(ABS),左側

 1
47430H - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)
90045-06182

M110..V

ｱﾘ(ABS),右側

 1
90045-06183

M110..V

ｱﾘ(ABS),左側

 1
90045-06151

M110..V

 2
47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47447-87503

M110..V

 4
47447-87501

M110..V

ｱﾘ(ABS)

 4
47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47447-87503

M110..V

 4
47447-87501

M110..V

ｱﾘ(ABS)

 4
47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449-97201

M110..V

ｱﾘ(ABS)

 4
47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449-97201

M110..V

ｱﾘ(ABS)

 4
47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE)
47491-87201

M110..V

ｱﾘ(ABS)

 2
47491-87701

M110..V

 4
47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47547-87506

M11#

 2
47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
47548-87204

M11#

 2
47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47560-87520

M11#

 1
47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47560-87520

M11#

 1
47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)
47601-97201

M110..V

 1
47601-87204

M110..V

ｱﾘ(ABS)

 1
47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)
47602-87204

M110..V

ｱﾘ(ABS)

 1
47602-97201

M110..V

 1
47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH
47608-87501

M110..V

ｱﾘ(ABS)

 1
47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH
47609-87501

M110..V

ｱﾘ(ABS)

 1
47645 - PIN, AUTOMATIC ADJUST LEVER(FOR REAR BRAKE)
47645-87201

M110..V

ｱﾘ(ABS)

 2
47646B - LATCH, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)
47646-97201

M110..V

ｱﾘ(ABS)

 1
47647A - LATCH, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)
47647-97201

M110..V

ｱﾘ(ABS)

 1
Common parts
90041-01620
90041-19848
90041-70336
90042-06041
90042-13007
91611-G0612
