M110A-GPNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809-0112) ; (0112- )V,X

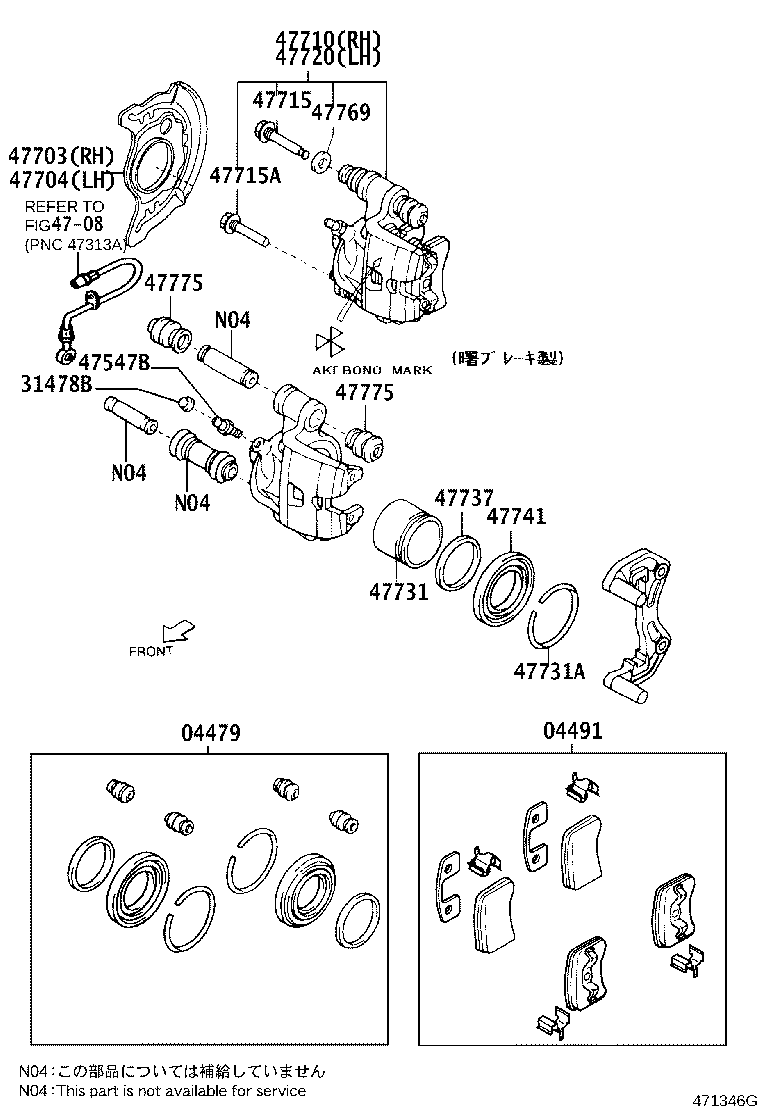

Click highlighted areas on diagram

diagram 04479 04491 31478B 4708 47547B 47703 47704 47710 47715 47715A 47720 47731 47731A 47737 47741 47769 47775 47775
Part # Description Qty Price
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-97201

M10#,11#

 1
04491 - PAD KIT, DISC BRAKE, FRONT
04491-97201

M100,110

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
47548-87303

M10#,11#

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-87207

M10#,11#

 2
47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH
47781-97201

M10#,11#

 1
47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH
47782-97201

M10#,11#

 1
47710 - CALIPER ASSY, DISC BRAKE, FRONT, RH
47710-97201

M100,110

 1
47715 - PIN, MAIN(FOR FRONT DISC BRAKE CYLINDER SLIDE)
47715-97202

M10#,11#

 2
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-97201

M10#,11#

 2
47720 - CALIPER ASSY, DISC BRAKE, FRONT, LH
47720-97201

M100,110

 1
47731 - PISTON, FRONT DISC BRAKE
47731-97201

M10#,11#

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90045-22017

M10#,11#

 2
47737 - SEAL, FRONT DISC BRAKE CYLINDER PISTON
47737-97201

M10#,11#

 2
47741 - BOOT, FRONT DISC BRAKE CYLINDER
47741-87202

M10#,11#

 2
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-97201

M10#,11#

 2
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-97201

M10#,11#

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-97201

M10#,11#

 4
Linked diagrams
4708
