M110A-GPNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )

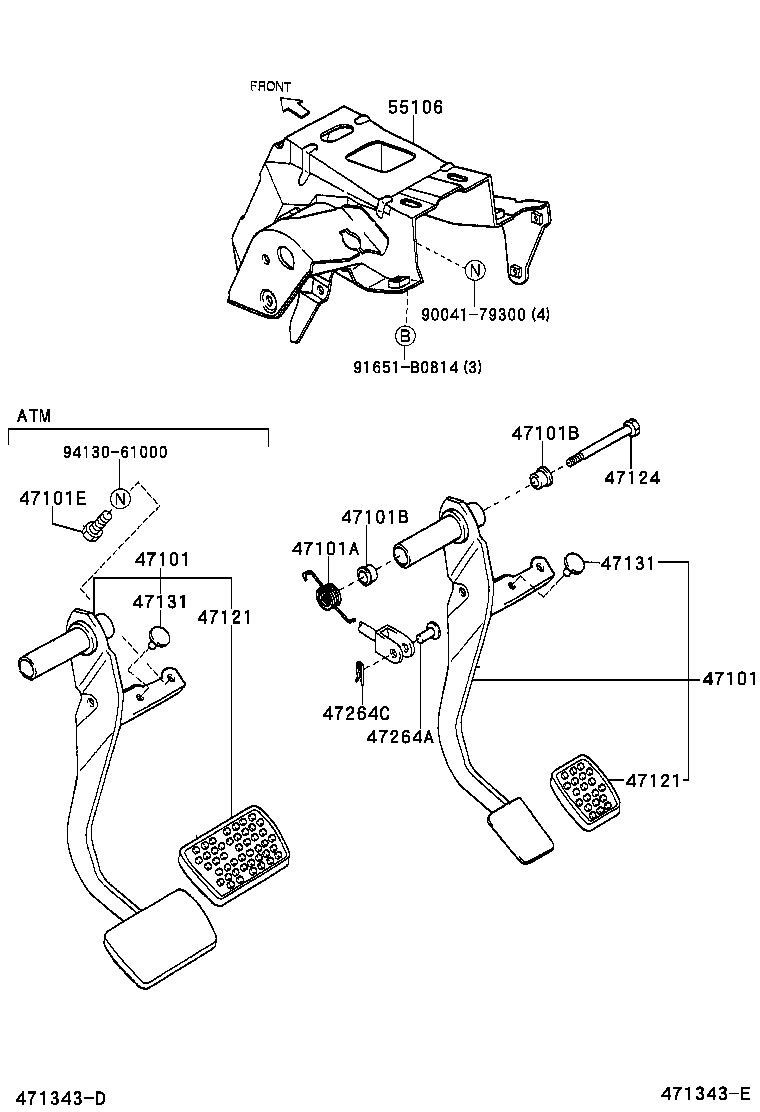

Click highlighted areas on diagram

diagram 47101 47101 47101A 47101B 47101B 47101E 47121 47121 47124 47131 47131 47264A 47264C 55106 9004179300 91651B0814 9413061000
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47110-97202

M10#,11#..ATM

 1
47101 - PEDAL SUB-ASSY, BRAKE
47110-97202

M10#,11#..ATM

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90045-08357

M10#,11#

 1
47101B - BUSH(FOR BRAKE PEDAL)
90043-86121

M10#,11#

 2
47101B - BUSH(FOR BRAKE PEDAL)
90043-86121

M10#,11#

 2
47101E - STOPPER, SHIFT LOCK
31322-87403

M10#,11#..ATM

 1
47121 - PAD, BRAKE PEDAL
47121-87202

M10#,11#..ATM

 1
47121 - PAD, BRAKE PEDAL
47121-87202

M10#,11#..ATM

 1
47124 - SHAFT, BRAKE PEDAL
31324-97201

M10#,11#

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90045-40158

M10#,11#

 2
47131 - CUSHION(FOR STOP LAMP SWITCH)
90045-40158

M10#,11#

 2
47264A - PIN(FOR PUSH ROD)
90042-40145

M10#,11#

 1
47264C - CLIP(FOR PUSH ROD CLEVIS PIN)
90044-68076

M10#,11#

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-97202

M10#,11#..ATM

 1
Common parts
90041-79300
91651-B0814
94130-61000
