M110A-GPNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )

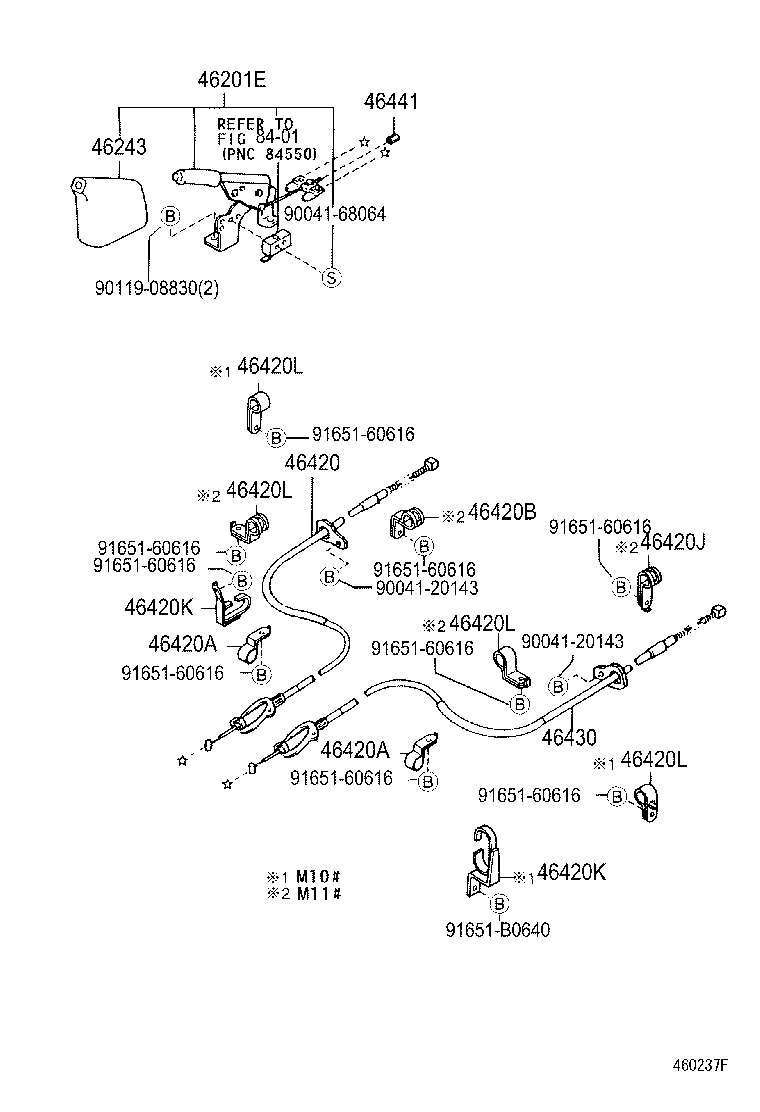

Click highlighted areas on diagram

diagram 46201E 46243 46420 46420A 46420A 46420B 46420J 46420K 46420K 46420L 46420L 46420L 46420L 46430 46441 8401 9004120143 9004120143 9004168064 9011908830 9165160616 9165160616 9165160616 9165160616 9165160616 9165160616 9165160616 9165160616 9165160616 91651B0640
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46210-9720403

M10#,11#

DARK GRAY,TRIMS6,S8

 1
46243 - COVER, PARKING BRAKE LEVER
46524-9720103

M100,110

DARK GRAY,TRIMS6

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-97203

M110..V

 1
46420-97202

M110..V

ｱﾘ(ABS)

 1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90044-61804

M10#,11#

 2
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90044-61804

M10#,11#

 2
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
90044-61313

M11#

 1
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
90044-61808

M11#

 1
46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE)
46465-97203

M11#

 1
46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE)
46465-97203

M11#

 1
46420L - CLAMP, NO.5(FOR PARKING BRAKE CABLE)
90044-61807

M11#

 2
46420L - CLAMP, NO.5(FOR PARKING BRAKE CABLE)
90044-61807

M11#

 2
46420L - CLAMP, NO.5(FOR PARKING BRAKE CABLE)
90044-61807

M11#

 2
46420L - CLAMP, NO.5(FOR PARKING BRAKE CABLE)
90044-61807

M11#

 2
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-97202

M110..V

ｱﾘ(ABS)

 1
46430-97203

M110..V

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-87202

M10#,11#

 1
Common parts
90041-20143
90041-68064
90119-08830
91651-60616
91651-B0640
Linked diagrams
8401
