M110A-GPNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )

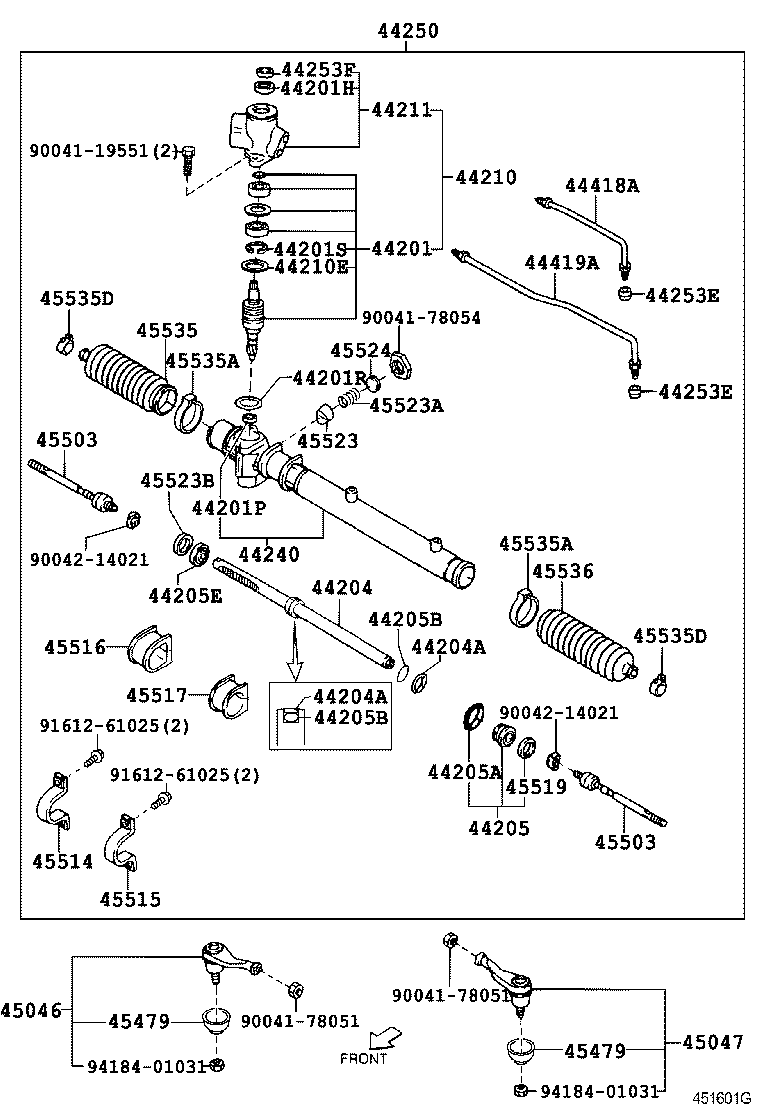

Click highlighted areas on diagram

diagram 44201 44201H 44201P 44201R 44201S 44204 44204A 44204A 44205 44205A 44205B 44205B 44205E 44210 44210E 44211 44240 44250 44253E 44253E 44253F 44418A 44419A 45046 45047 45479 45479 45503 45503 45514 45515 45516 45517 45519 45523 45523A 45523B 45524 45535 45535A 45535A 45535D 45535D 45536 9004119551 9004178051 9004178051 9004178054 9004214021 9004214021 9161261025 9161261025 9418401031 9418401031
Part # Description Qty Price
44201 - VALVE SUB-ASSY, POWER STEERING CONTROL
44201-97201

M100,110

 1
44201H - BEARING(FOR POWER STEERING CONTROL VALVE UPPER)
44483-97202

M10#,11#

 1
44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER)
44483-97201

M10#,11#

 1
44201R - RING(FOR POWER STEERING CONTROL VALVE)
44485-97204

M10#,11#

 1
44201S - RING, SNAP(FOR POWER STEERING CONTROL VALVE)
44486-97202

M10#,11#

 1
44204 - RACK SUB-ASSY, POWER STEERING
44204-97201

M10#,11#

 1
44204A - RING(FOR RACK STEERING PISTON)
44485-97201

M10#,11#

 1
44204A - RING(FOR RACK STEERING PISTON)
44485-97201

M10#,11#

 1
44205 - STOPPER SUB-ASSY, CYLINDER END
44205-97201

M10#,11#

 1
44205A - RING, O(FOR CYLINDER END STOPPER)
44485-97203

M10#,11#

 1
44205B - SEAL, OIL(FOR CYLINDER END STOPPER)
44482-97201

M10#,11#

 1
44205B - SEAL, OIL(FOR CYLINDER END STOPPER)
44482-97201

M10#,11#

 1
44205E - SEAL, OIL(FOR POWER STEERING RACK BUSH)
44482-97202

M10#,11#

 1
44210 - VALVE ASSY, POWER STEERING CONTROL
44210-97201

M100,110

 1
44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE)
44481-97204

M10#,11#

 4
44211 - HOUSING, CONTROL VALVE
44022-97201

M100,110

 1
44240 - HOUSING ASSY, POWER STEERING RACK
44203-97201

M10#,11#

 1
44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44504-97210

M100,110

 1
44504-97403

M100,110

 1
44253E - SEAT, UNION(FOR POWER STEERING RACK HOUSING)
44492-97204

M10#,11#

 2
44253E - SEAT, UNION(FOR POWER STEERING RACK HOUSING)
44492-97204

M10#,11#

 2
44253F - SEAL, OIL, NO.1(FOR POWER STEERING RACK HOUSING)
44492-97201

M10#,11#

 1
44418A - TUBE, STEERING RIGHT TURN PRESSURE
44418-97203

M10#,11#

 1
44419A - TUBE, STEERING LEFT TURN PRESSURE
44419-97204

M10#,11#

 1
45046 - END SUB-ASSY, TIE ROD, RH
45046-87707

M100,110

 1
45047 - END SUB-ASSY, TIE ROD, LH
45047-87706

M100,110

 1
45479 - SEAL, STEERING LINK JOINT DUST
45479-B2010

M100,110

 1
45479 - SEAL, STEERING LINK JOINT DUST
45479-B2010

M100,110

 1
45503 - END SUB-ASSY, STEERING RACK
45503-97201

M100,110

 2
45503 - END SUB-ASSY, STEERING RACK
45503-97201

M100,110

 2
45514 - BRACKET, STEERING RACK HOUSING, NO.1
45514-97201

M100,110

 1
45515 - BRACKET, STEERING RACK HOUSING, NO.2
45515-97201

M100,110

 1
45516 - GROMMET, STEERING RACK HOUSING, NO.1
45516-97202

M10#,11#

 1
45517 - GROMMET, STEERING RACK HOUSING, NO.2
45517-97201

M100,110

 1
45519 - PACKING, STEERING RACK HOUSING
45519-97201

M10#,11#

 1
45523 - GUIDE, RACK(FOR STEERING GEAR)
45523-97203

M10#,11#

 1
45523A - SPRING(FOR STEERING GEAR RACK GUIDE)
90045-01753

M10#,11#

 1
45523B - GUIDE, RACK(FOR STEERING GEAR)
45523-97204

M10#,11#

 1
45524 - CAP, STEERING RACK GUIDE SPRING
45524-97201

M10#,11#

 1
45535 - BOOT, STEERING RACK, NO.1
45535-97202

M10#,11#

 1
45535A - CLAMP(FOR STEERING RACK BOOT)
45536-97201

M10#,11#

 2
45535A - CLAMP(FOR STEERING RACK BOOT)
45536-97201

M10#,11#

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90044-67421

M100,110

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90044-67421

M100,110

 2
45536 - BOOT, STEERING RACK, NO.2
45535-97202

M10#,11#

 1
Common parts
90041-19551
90041-78051
90041-78054
90042-14021
91612-61025
94184-01031
