M110A-GPNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )M100,110

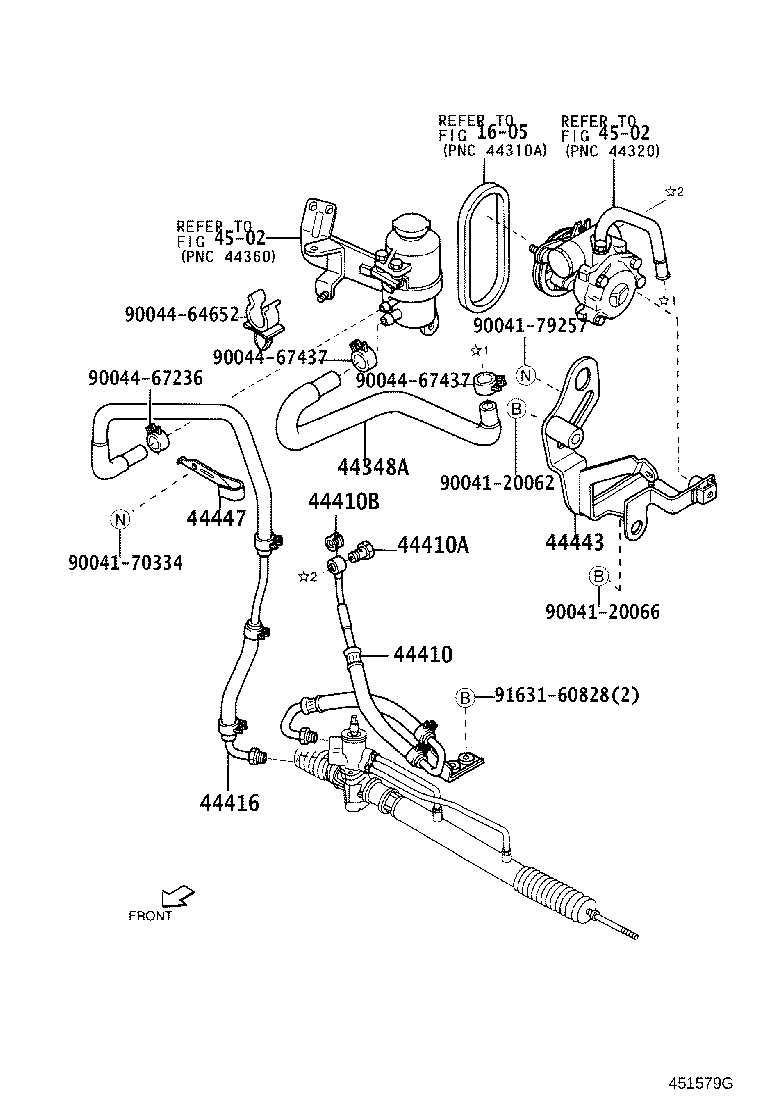

Click highlighted areas on diagram

diagram 1605 44348A 44410 44410A 44410B 44416 44443 44447 4502 4502 9004120062 9004120066 9004170334 9004179257 9004464652 9004467236 9004467437 9004467437 9163160828
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-97201

M100,110

 1
44410 - TUBE ASSY, PRESSURE FEED
44411-97201

M110

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90044-01088

M10#,11#

 1
44410B - GASKET(FOR PRESSURE FEED TUBE)
90044-30289

M10#,11#

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44430-97201

M100,110

 1
44443 - BRACKET, PUMP
44443-97201

M100,110

 1
44447 - BRACKET, POWER STEERING OIL COOLER TUBE SUPPORT
44447-97201

M100,110

 1
Common parts
90041-20062
90041-20066
90041-70334
90041-79257
90044-64652
90044-67236
90044-67437
91631-60828
Linked diagrams
1605
4502
