M110A-GPNF (1998)
Toyota Duet
Production
Sep 1998
-
May 2000
Engine
EJDE
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9809- )

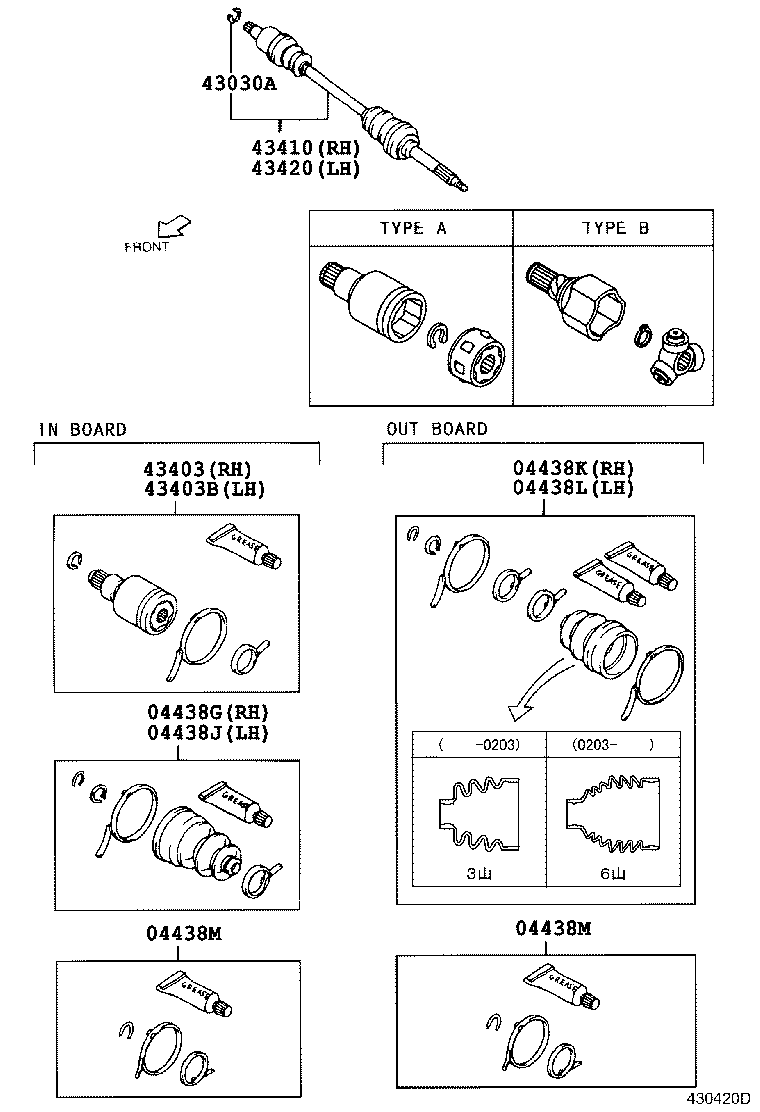

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-97201 |
M110;M100..5F NTN |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-97201 |
M110;M100..5F NTN |
1 | ||
| 04438K - BOOT KIT, FRONT DRIVE SHAFT OUTBOARD JOINT, RH | ||||
| 04438-97202 |
M110;M100..5F NTN |
1 | ||
| 04438L - BOOT KIT, FRONT DRIVE SHAFT OUTBOARD JOINT, LH | ||||
| 04438-97202 |
M110;M100..5F NTN |
1 | ||
| 04438M - CLAMP KIT, FRONT DRIVE SHAFT | ||||
| 04438-87222 |
M110;M100..5F |
4 | ||
| 04438M - CLAMP KIT, FRONT DRIVE SHAFT | ||||
| 04438-87222 |
M110;M100..5F |
4 | ||
| 43030A - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT) | ||||
| 90045-20298 |
M10#,11# NTN |
2 | ||
| 43403 - JOINT SET, FRONT AXLE INBOARD, RH | ||||
| 43404-97209 |
M110 NTN |
1 | ||
| 43403B - JOINT SET, FRONT AXLE INBOARD, LH | ||||
| 43404-97210 |
M110;M100..5F NTN |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-97213 |
M110 |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-97208 |
M110;M100..5F |
1 | ||
