M110A-GPNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

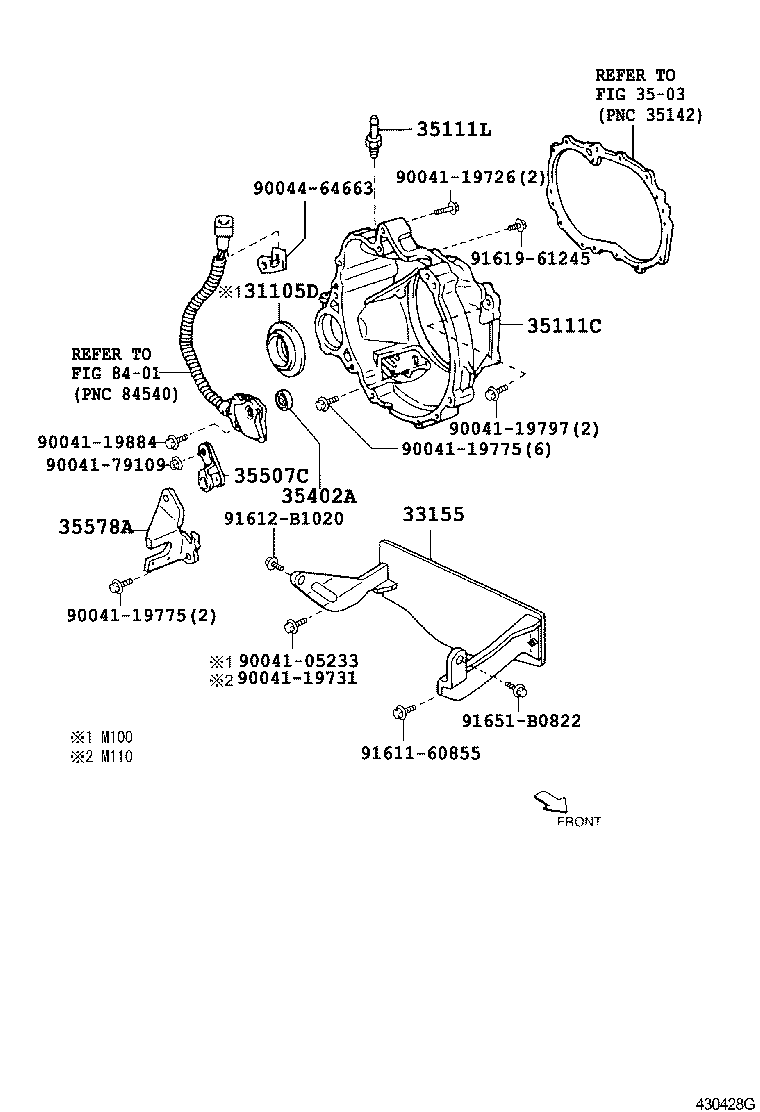

ILLUST NO. 1 OF 2(9809- )M100,110..4AT

Click highlighted areas on diagram

diagram 31105D 33155 3503 35111C 35111L 35402A 35507C 35578A 8401 9004105233 9004119726 9004119731 9004119775 9004119775 9004119797 9004119884 9004179109 9004464663 9161160855 91612B1020 9161961245 91651B0822
Part # Description Qty Price
33155 - STIFFENER, POWER TRAIN
33155-97207

M110

 1
35111C - HOUSING, TRANSAXLE
35111-97202

M100,110..4AT

 1
35111L - UNION(FOR TRANSAXLE HOUSING)
90044-05199

M100,110..4AT

 1
35402A - SEAL, OIL(FOR MANUAL VALVE)
90043-11256

M100,110..4AT

 1
35507C - LEVER TRANSAXLE CONTROL SHAFT
35507-87206

M100,110..4AT

 1
35578A - BRACKET, CONTROL CABLE
35578-97201

M11#..ATM

 1
Common parts
90041-05233
90041-19726
90041-19731
90041-19775
90041-19797
90041-19884
90041-79109
90044-64663
91611-60855
91612-B1020
91619-61245
91651-B0822
Linked diagrams
3503
8401

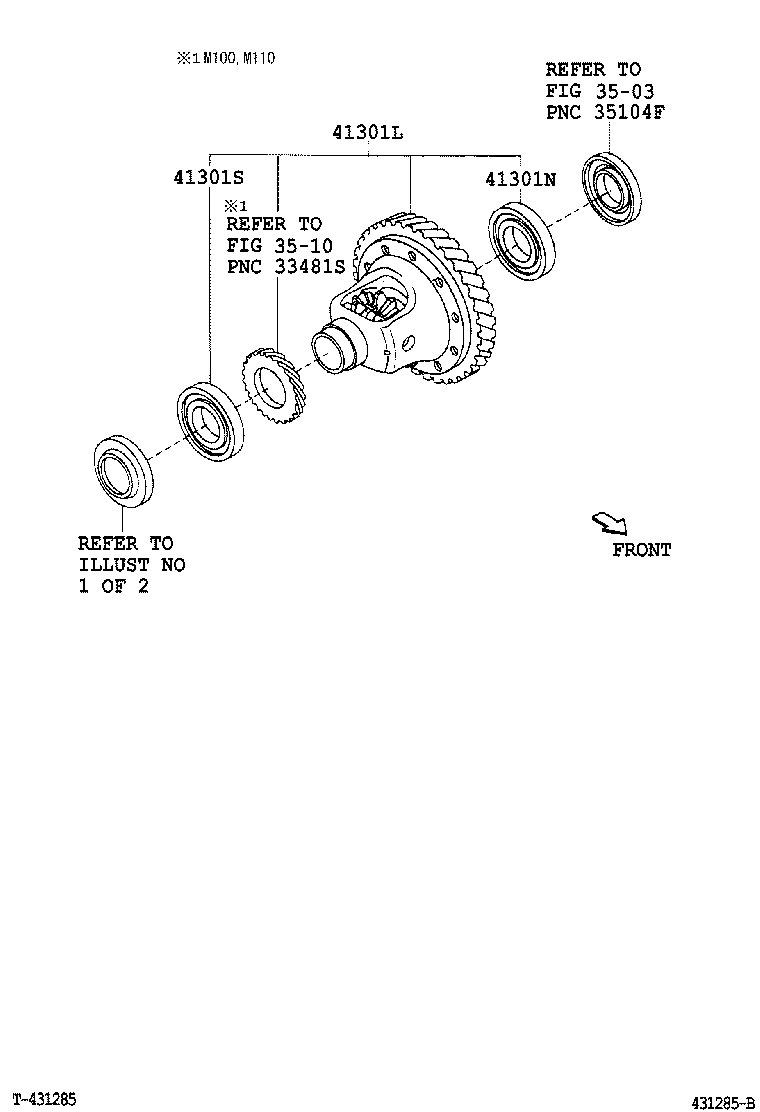

ILLUST NO. 2 OF 2(9809- )ATM

Click highlighted areas on diagram

diagram 3503 3510 41301L 41301N 41301S
Part # Description Qty Price
41301L - CASE SUB-ASSY, FRONT DIFFERENTIAL, NO.1
41310-97204

M110..4AT

 1
41301N - BEARING(FOR FRONT DIFFERENTIAL CASE)
90043-63167

M100,110..4AT

 1
41301S - BEARING, NEEDLE ROLLER
90043-63190

M100,110..4AT

 1
Linked diagrams
3503
3510
