M110A-GPNF (1998)
Toyota Duet

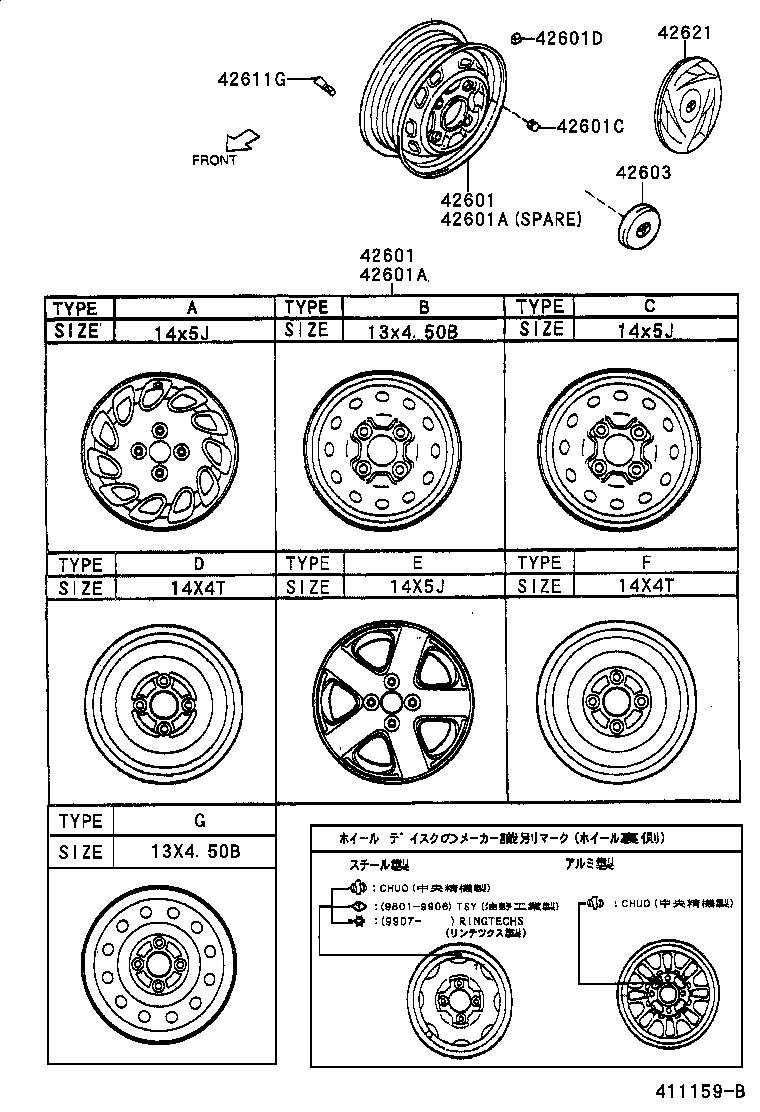

ILLUST NO. 1 OF 2(9809- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-97205 |
M100,110..LVVT;M10#,11#..(V,VS)..WVVT 13X4.50B,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,TSY,ﾌﾞﾗｯｸ |
4 | ||
| 42611-97204 |
M10#,11# 14X5.00J,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SILVER |
4 | ||
| 42611-97206 |
M101,111;M100,110..LVVT;M100,110..X..WVVT 14X5.00,ｽﾁｰﾙ,ﾌﾞﾗｯｸ,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ CHUOU ｵﾌｾﾂﾄ 40MM,ﾌﾞﾗｯｸ |
4 | ||
| 42601 - WHEEL, DISC | ||||
| 42611-97205 |
M100,110..LVVT;M10#,11#..(V,VS)..WVVT 13X4.50B,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,TSY,ﾌﾞﾗｯｸ |
4 | ||
| 42611-97204 |
M10#,11# 14X5.00J,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SILVER |
4 | ||
| 42611-97206 |
M101,111;M100,110..LVVT;M100,110..X..WVVT 14X5.00,ｽﾁｰﾙ,ﾌﾞﾗｯｸ,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ CHUOU ｵﾌｾﾂﾄ 40MM,ﾌﾞﾗｯｸ |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-97201 |
M100,110 14X4T,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42611-97236 |
M10#,11# 14X4T,TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-97201 |
M100,110 14X4T,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42611-97236 |
M10#,11# 14X4T,TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90049-11036 |
M10#,11# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
16 | ||
| 90049-11047 |
M10#,11# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
16 | ||
| 42601D - WEIGHT, BALANCE (FOR DISC WHEEL) | ||||
| 90049-14039 |
M10#,11# 10G,ｱﾘ(ｽﾁ-ﾙﾎｲ-ﾙ) |
1 | ||
| 90049-14047 |
M10#,11# 30G,ｱﾘ(ｱﾙﾐﾆｳﾑ ﾎｲ-ﾙ) |
1 | ||
| 90049-14045 |
M10#,11# 10G,ｱﾘ(ｱﾙﾐﾆｳﾑ ﾎｲ-ﾙ) |
1 | ||
| 90049-14046 |
M10#,11# 20G,ｱﾘ(ｱﾙﾐﾆｳﾑ ﾎｲ-ﾙ) |
1 | ||
| 90049-14034 |
M10#,11# 20G,ｱﾘ(ｽﾁ-ﾙﾎｲ-ﾙ) |
1 | ||
| 90049-14041 |
M10#,11# 25G,ｱﾘ(ｽﾁ-ﾙﾎｲ-ﾙ) |
1 | ||
| 90049-14035 |
M10#,11# 30G,ｱﾘ(ｽﾁ-ﾙﾎｲ-ﾙ) |
1 | ||
| 90049-14042 |
M10#,11# 35G,ｱﾘ(ｽﾁ-ﾙﾎｲ-ﾙ) |
1 | ||
| 90049-14044 |
M10#,11# 55G,ｱﾘ(ｽﾁ-ﾙﾎｲ-ﾙ) |
1 | ||
| 90049-14053 |
M10#,11# 35G,ｱﾘ(ｱﾙﾐﾆｳﾑ ﾎｲ-ﾙ) |
1 | ||
| 90049-14040 |
M10#,11# 15G,ｱﾘ(ｽﾁ-ﾙﾎｲ-ﾙ) |
1 | ||
| 90049-14052 |
M10#,11# 25G,ｱﾘ(ｱﾙﾐﾆｳﾑ ﾎｲ-ﾙ) |
1 | ||
| 90049-14051 |
M10#,11# 15G,ｱﾘ(ｱﾙﾐﾆｳﾑ ﾎｲ-ﾙ) |
1 | ||
| 90049-14084 |
M10#,11# 5G,ｱﾘ(ｱﾙﾐﾆｳﾑ ﾎｲ-ﾙ),ｳﾁｯｹ ﾀｲﾌﾟ |
1 | ||
| 90049-14038 |
M10#,11# 60G,ｱﾘ(ｽﾁ-ﾙﾎｲ-ﾙ) |
1 | ||
| 90049-14037 |
M10#,11# 50G,ｱﾘ(ｽﾁ-ﾙﾎｲ-ﾙ) |
1 | ||
| 90049-14049 |
M10#,11# 50G,ｱﾘ(ｱﾙﾐﾆｳﾑ ﾎｲ-ﾙ) |
1 | ||
| 90049-14054 |
M10#,11# 45G,ｱﾘ(ｱﾙﾐﾆｳﾑ ﾎｲ-ﾙ) |
1 | ||
| 90049-14024 |
M10#,11# 5G,ｱﾘ(ｽﾁ-ﾙﾎｲ-ﾙ) |
1 | ||
| 90049-14043 |
M10#,11# 45G,ｱﾘ(ｽﾁ-ﾙﾎｲ-ﾙ) |
1 | ||
| 90049-14050 |
M10#,11# 60G,ｱﾘ(ｱﾙﾐﾆｳﾑ ﾎｲ-ﾙ) |
1 | ||
| 90049-14055 |
M10#,11# 55G,ｱﾘ(ｱﾙﾐﾆｳﾑ ﾎｲ-ﾙ) |
1 | ||
| 90049-14048 |
M10#,11# 40G,ｱﾘ(ｱﾙﾐﾆｳﾑ ﾎｲ-ﾙ) |
1 | ||
| 90049-14036 |
M10#,11# 40G,ｱﾘ(ｽﾁ-ﾙﾎｲ-ﾙ) |
1 | ||
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42638-97205 |
M10#,11# *ALU,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90049-02019 |
M10#,11# |
4 | ||
| 42621 - CAP, WHEEL | ||||
| 42602-97214 |
M100,110..LVVT;M100,110..X..WVVT TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 42602-97213 |
M100,110..LVVT;M10#,11#..(V,VS)..WVVT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||

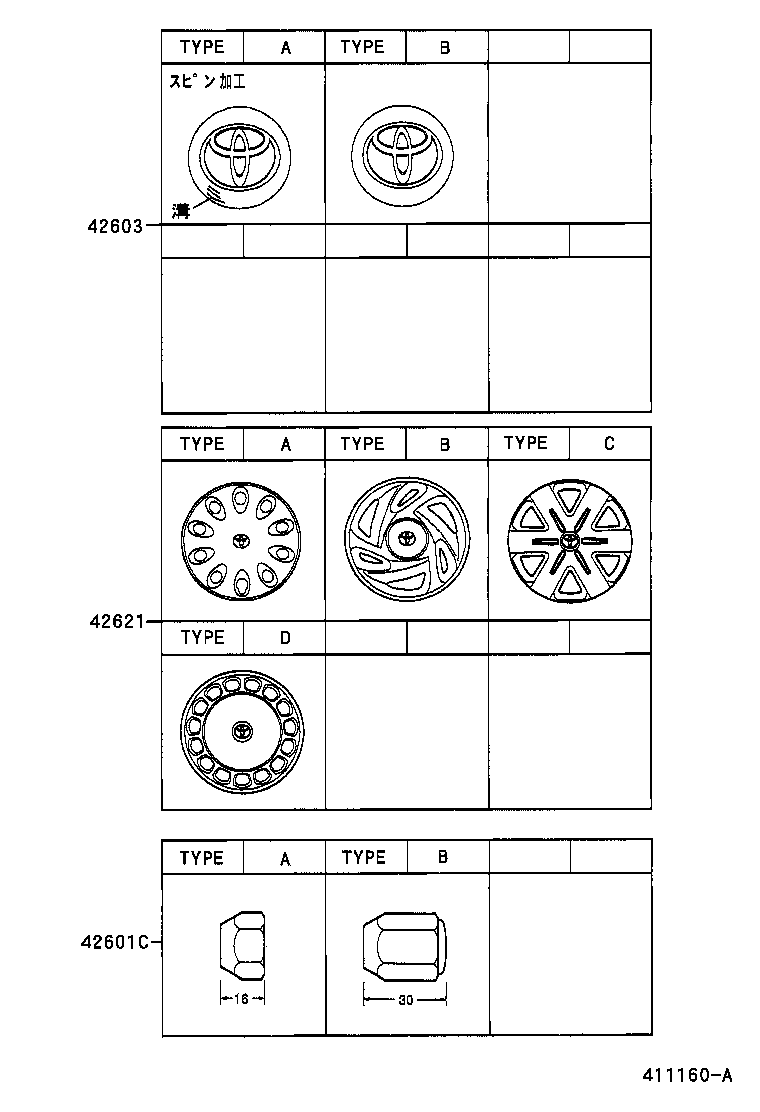

ILLUST NO. 2 OF 2(9809- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90049-11036 |
M10#,11# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
16 | ||
| 90049-11047 |
M10#,11# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
16 | ||
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42638-97205 |
M10#,11# *ALU,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 42621 - CAP, WHEEL | ||||
| 42602-97214 |
M100,110..LVVT;M100,110..X..WVVT TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 42602-97213 |
M100,110..LVVT;M10#,11#..(V,VS)..WVVT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
