M110A-GPNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )M11#

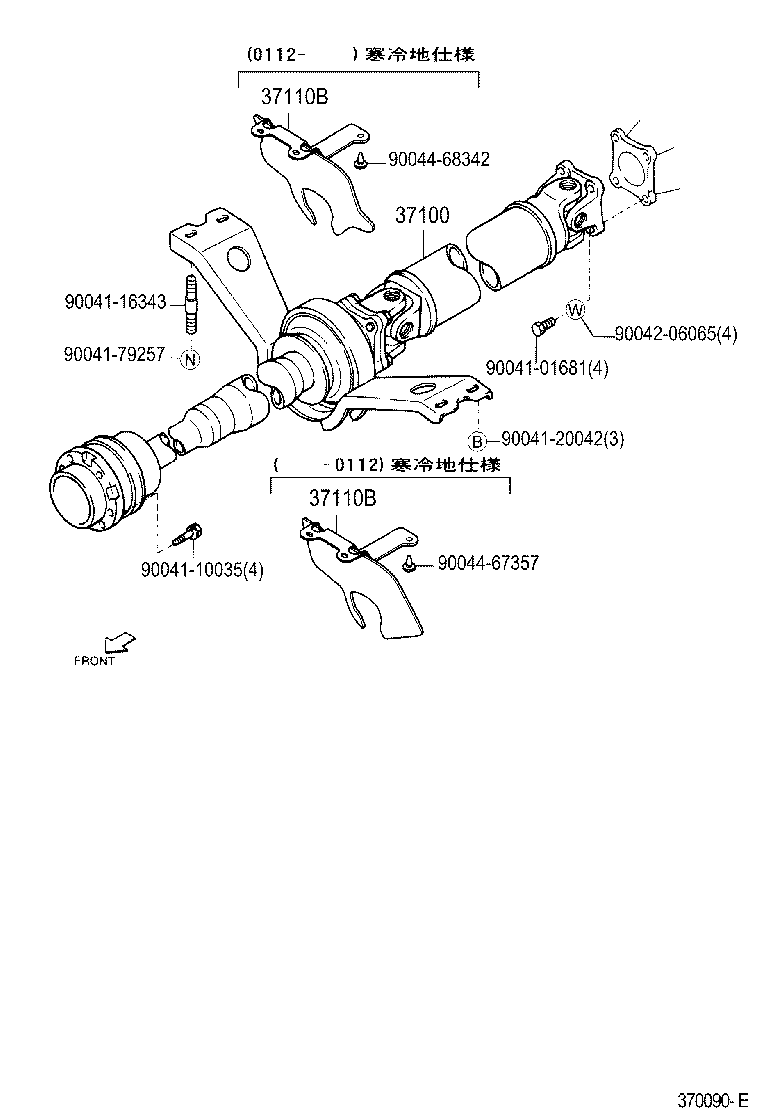

Click highlighted areas on diagram

diagram 37100 37110B 37110B 9004101681 9004110035 9004116343 9004120042 9004179257 9004206065 9004467357 9004468342
Part # Description Qty Price
37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING
37100-97203

M110

 1
37110B - GUARD, PROPELLER SHAFT
37505-97201

M11#

 1
37110B - GUARD, PROPELLER SHAFT
37505-97201

M11#

 1
Common parts
90041-01681
90041-10035
90041-16343
90041-20042
90041-79257
90042-06065
90044-67357
90044-68342
