M110A-GPNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

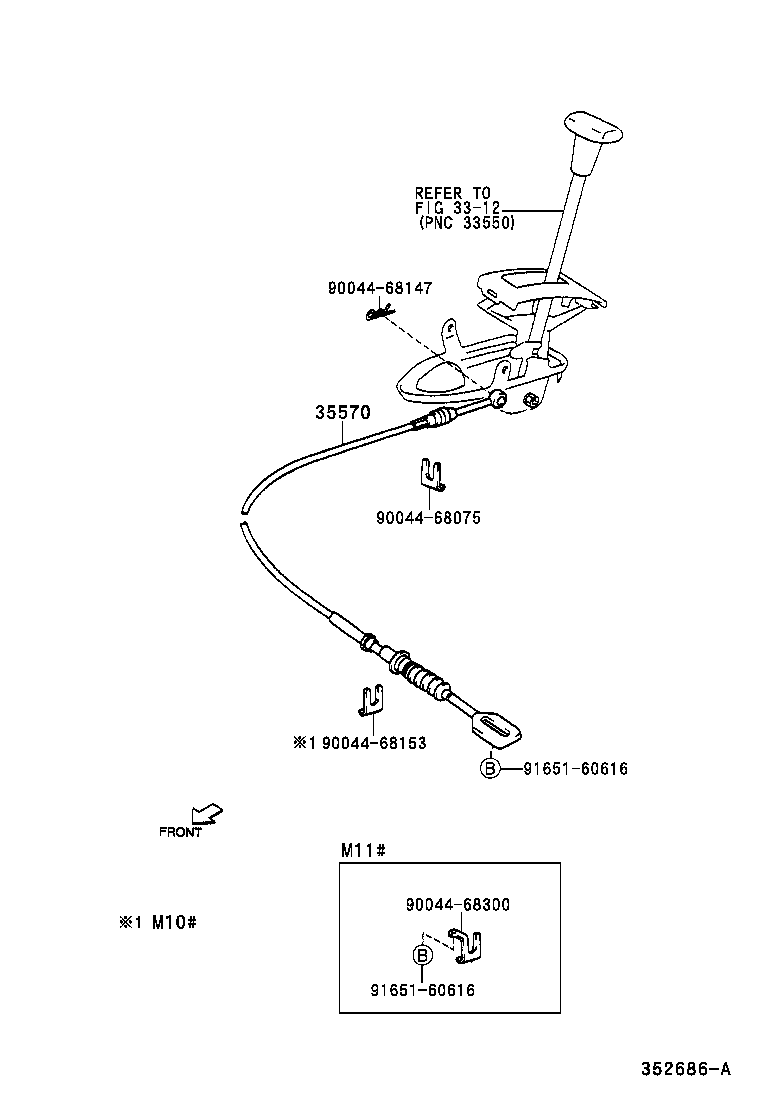

ILLUST NO. 1 OF 2(9809- )ATM

Click highlighted areas on diagram

diagram 3312 35570 9004468075 9004468147 9004468153 9004468300 9165160616 9165160616
Part # Description Qty Price
35570 - CABLE ASSY, CONTROL
35570-97202

M11#..4AT

 1
Common parts
90044-68075
90044-68147
90044-68153
90044-68300
91651-60616
Linked diagrams
3312

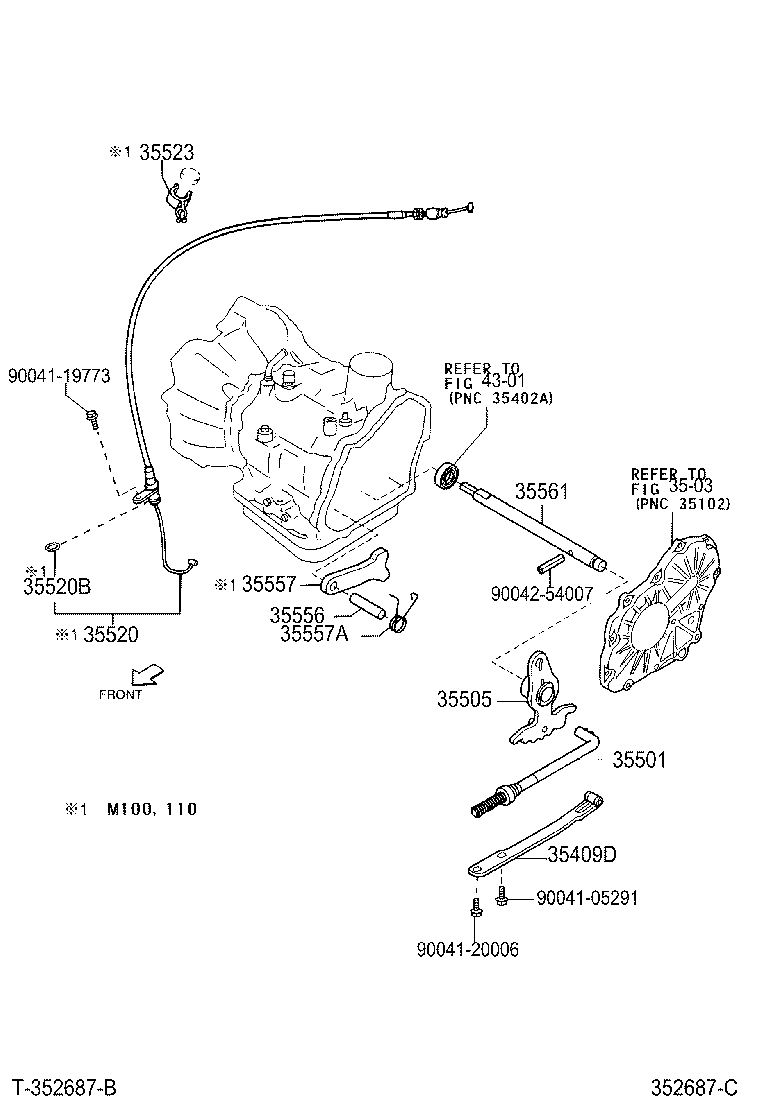

ILLUST NO. 2 OF 2(9809- )ATM

Click highlighted areas on diagram

diagram 3503 35409D 35501 35505 35520 35520B 35523 35556 35557 35557A 35561 4301 9004105291 9004119773 9004120006 9004254007
Part # Description Qty Price
35409D - SPRING SUB-ASSY, MANUAL DETENT
35409-97201

M100,110..4AT

 1
35501 - ROD SUB-ASSY, PARKING LOCK
35501-97201

M100,110..4AT

 1
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-87204

M10#,11#..4AT

 1
35520 - CABLE ASSY, THROTTLE
35520-97201

M100,110..4AT

 1
35523 - CLAMP, THROTTLE CABLE
90044-64662

M100,110..4AT

 1
35556 - SHAFT, PARKING LOCK PAWL
35556-87202

M10#,11#..ATM

 1
35557 - PAWL, PARKING LOCK
35557-87206

M100,110..4AT

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90045-08334

M100,110..4AT

 1
35561 - SHAFT, MANUAL VALVE LEVER
35561-87203

M100,110..4AT

 1
Common parts
90041-05291
90041-19773
90041-20006
90042-54007
Linked diagrams
3503
4301
