M110A-GPNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

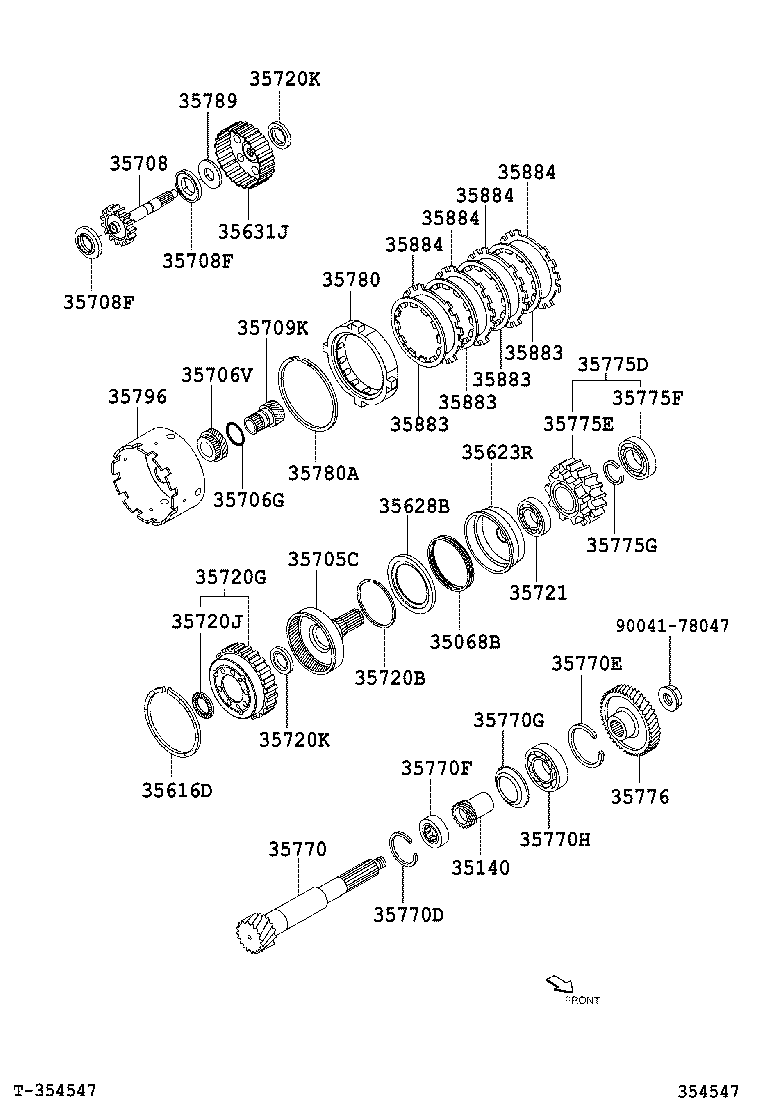

ILLUST NO. 1 OF 2(9809- )M100,110..4AT

Click highlighted areas on diagram

diagram 35068B 35140 35616D 35623R 35628B 35631J 35705C 35706G 35706V 35708 35708F 35708F 35709K 35720B 35720G 35720J 35720K 35720K 35721 35770 35770D 35770E 35770F 35770G 35770H 35775D 35775E 35775F 35775G 35776 35780 35780A 35789 35796 35883 35883 35883 35883 35884 35884 35884 35884 9004178047
Part # Description Qty Price
35068B - SPRING, 1ST & REVERSE BRAKE RITURN
35068-97201

M100,110..4AT

 1
35140 - GEAR ASSY, GOVERNOR DRIVE
35140-87203

M100,110..4AT

 1
35616D - WASHER, CLUTCH DRUM THRUST
35671-97201

M100,110..4AT

 1
35623R - RIVERSE PISTON
35623-97204

M100,110..4AT

NOK

 1
35623-97201

M100,110..4AT

KOYO

 1
35628B - SEAT, RIVERSE CLUTCH PISTON RETURN SPRING
35628-97201

M100,110..4AT

 1
35631J - HUB, FORWARD CLUTCH, NO.1
35631-97202

M100,110..4AT

 1
35705C - SHAFT SUB-ASSY, PLANETARY OUTPUT
35705-97203

M100,110..4AT

 1
35706G - BEARING, THRUST (FOR SUN GEAR REAR)
90043-74041

M100,110..4AT

 1
35706V - GEAR SUB ASSY, PLANETARY SUN
35706-97202

M100,110..4AT

 1
35708 - SHAFT SUB-ASSY, INTERMEDIATE
35708-87204

M100,110..4AT

 1
35708F - BEARING, THRUST NEEDLE ROLLER (FOR INTERMEDIATE SHAFT)
90043-74027

M100,110..4AT

 2
35708F - BEARING, THRUST NEEDLE ROLLER (FOR INTERMEDIATE SHAFT)
90043-74027

M100,110..4AT

 2
35709K - GEAR SUB-ASSY, REAR PLANETARY
35709-97202

M100,110..4AT

 1
35720B - RING, SHAFT SNAP (FOR FRONT PLANETARY GEAR)
90045-20226

M100,110..4AT

 1
35720G - GEAR ASSY, PLANETARY
35720-97204

M100,110..4AT

 1
35720J - BEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR FRONT)
90043-74014

M100,110..4AT

 1
35720K - BEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)
90043-74034

M100,110..4AT

 2
35720K - BEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)
90043-74034

M100,110..4AT

 2
35721 - PINION, PLANETARY LONG
97103-06007

M100,110..4AT

 1
35770 - SHAFT ASSY, OUTPUT
35771-97201

M110..4AT

 1
35770D - RING, HOLE SNAP NO.1
90045-21125

M100,110..4AT

 1
35770E - RING, HOLE SNAP NO.2
90045-21133

M100,110..4AT

 1
35770F - BEARING, CYLINDRICAL ROLLER
90043-65023

M100,110..4AT

 1
35770G - PLATE, OIL RESERVE
23368-87201

M100,110..4AT

 1
35770H - BEARING, RADIAL BALL NO.2
90043-63260

M100,110..4AT

 1
35775D - GEAR KIT, RIDUCTION DRIVE
35775-87210

M100,110..4AT

 1
35775E - GEAR SUB-ASSY, RIDUCTION DRIVE
35775-87208

M100,110..4AT

 1
35775F - BEARING, RADIAL BOLL
90043-63261

M100,110..4AT

 1
35775G - RING, SHAFT SNAP NO.1
90045-20227

M100,110..4AT

 1
35776 - GEAR, PRIMARY REDUCTION DRIVEN
35776-87207

M100,110..4AT

 1
35780 - CLUTCH ASSY, 1 WAY NO.2
35780-87202

M100,110..4AT

 1
35780A - RING, SNAP (FOR 1 WAY CLUTCH)
90045-21119

M100,110..4AT

厚さ=2.0

 1
90045-21121

M100,110..4AT

厚さ=2.5

 1
90045-21120

M100,110..4AT

厚さ=2.25

 1
90045-21123

M100,110..4AT

厚さ=2.75

 1
35789 - RACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE FRONT)
35789-87207

M100,110..4AT

 1
35796 - DRUM, SECOUND BRAKE
35796-97201

M100,110..4AT

 1
35883 - DISC, REVERSE CLUTCH
35883-97203

M100,110..4AT

 4
35883 - DISC, REVERSE CLUTCH
35883-97203

M100,110..4AT

 4
35883 - DISC, REVERSE CLUTCH
35883-97203

M100,110..4AT

 4
35883 - DISC, REVERSE CLUTCH
35883-97203

M100,110..4AT

 4
35884 - PLATE, REVERSE CLUTCH, NO.2
35884-97203

M100,110..4AT

 4
35884 - PLATE, REVERSE CLUTCH, NO.2
35884-97203

M100,110..4AT

 4
35884 - PLATE, REVERSE CLUTCH, NO.2
35884-97203

M100,110..4AT

 4
35884 - PLATE, REVERSE CLUTCH, NO.2
35884-97203

M100,110..4AT

 4
Common parts
90041-78047

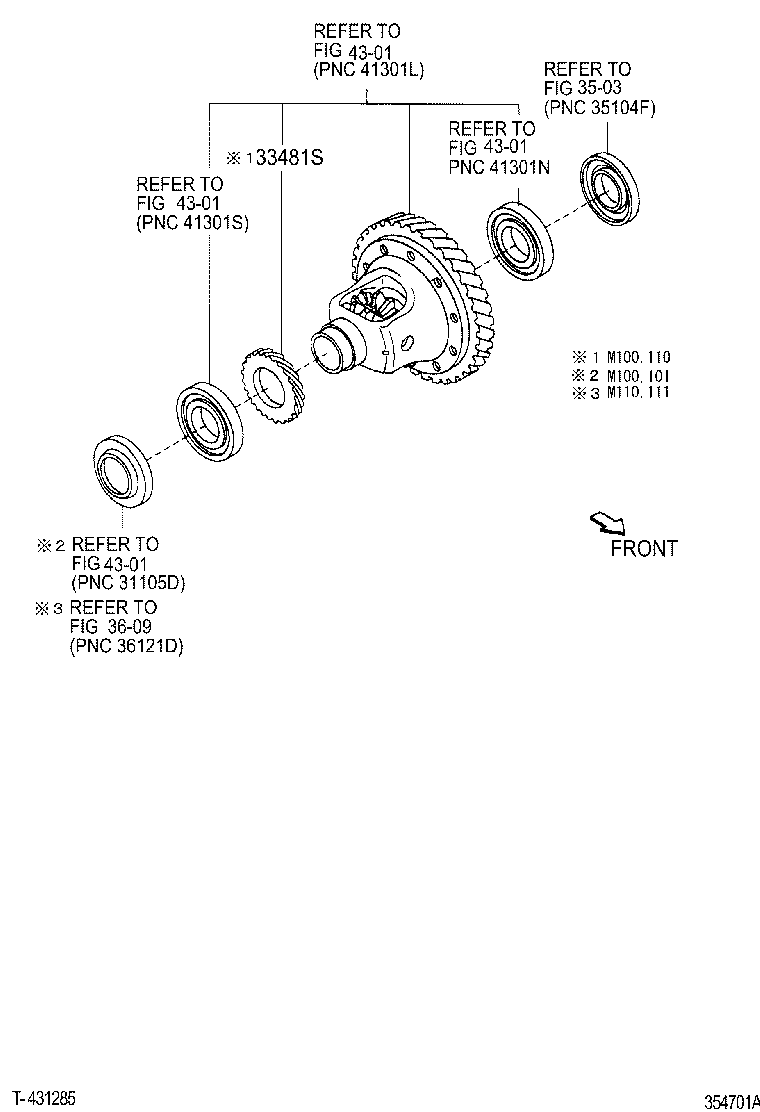

ILLUST NO. 2 OF 2(9809- )M100,110..4AT

Click highlighted areas on diagram

diagram 33481S 3503 3609 4301 4301 4301 4301
Part # Description Qty Price
33481S - GEAR, SPEEDOMETER DRIVE (ATM)
33481-97201

M100,110..4AT

歯数=19

 1
Linked diagrams
3503
3609
4301
