M110A-GPNF (1998)
Toyota Duet
Production
Sep 1998
-
May 2000
Engine
EJDE
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9809- )M100,110..4AT

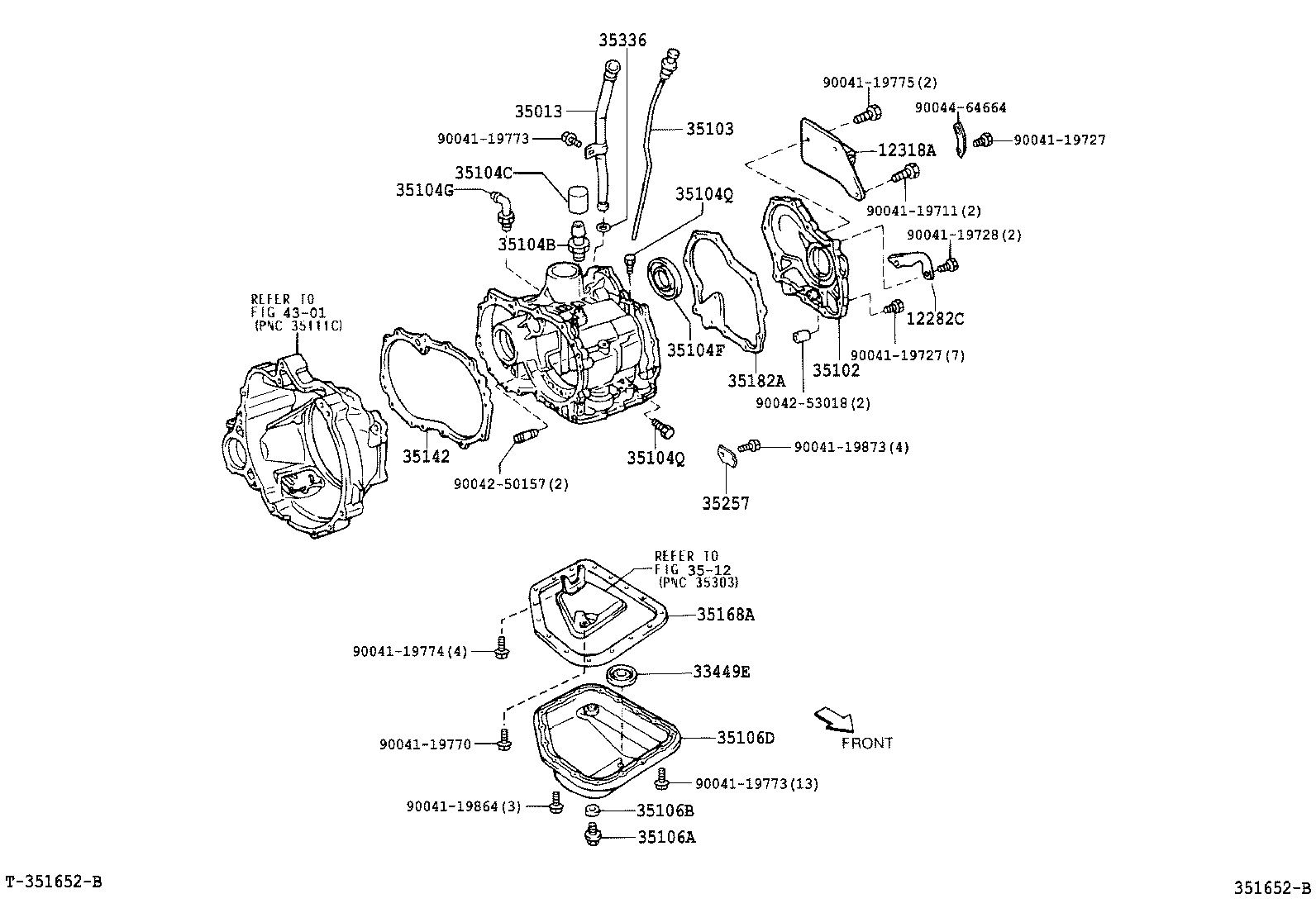

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12282C - HANGER, ENGINE, NO.2 | ||||
| 12282-87213 |
EJ#..M100,110..4AT |
1 | ||
| 12318A - BRACKET, ENGINE MOUNTIG, LOWER LH | ||||
| 12318-97201 |
EJ#..M100,110..4AT |
1 | ||
| 33449E - MAGNET, TRANSAXLE | ||||
| 33449-87502 |
M10#,11#..ATM |
1 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-97201 |
M100,110..4AT |
1 | ||
| 35102 - COVER SUB-ASSY, TRANSAXLE REAR | ||||
| 35181-87204 |
M100,110..4AT |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-97201 |
M100,110..4AT |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90049-15048 |
M10#,11#..ATM |
1 | ||
| 35104C - PLUG, BREATHER, NO.2 (ATM) | ||||
| 90049-15050 |
M10#,11#..ATM |
1 | ||
| 35104F - SEAL, OIL (FOR TRANSAXLE CASE) | ||||
| 90043-11316 |
M10#,11#..ATM |
1 | ||
| 35104G - UNION(FOR AUTOMATIC TRANSAXLE CASE) | ||||
| 90044-05198 |
M100,110..4AT |
1 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90043-45037 |
M100,110..4AT |
8 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90043-45037 |
M100,110..4AT |
8 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90043-41041 |
M10#,11#..ATM |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 90044-30281 |
M10#,11#..ATM |
1 | ||
| 35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL | ||||
| 35106-87206 |
M100,110..4AT |
1 | ||
| 35142 - GASKET, TRANSMISSION CASE(ATM) | ||||
| 35142-87203 |
M100,110..4AT |
1 | ||
| 35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN | ||||
| 35168-97201 |
M100,110..4AT |
1 | ||
| 35182A - GASKET, TRANSAXLE CASE REAR COVER | ||||
| 35182-87203 |
M100,110..4AT |
1 | ||
| 35257 - PLATE, OIL GUIDE | ||||
| 35257-87502 |
EJ#..M100,110..4AT |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90043-01160 |
M10#,11#..ATM |
1 | ||
| Common parts | ||||
| 90041-19711 | ||||
| 90041-19727 | ||||
| 90041-19728 | ||||
| 90041-19770 | ||||
| 90041-19773 | ||||
| 90041-19774 | ||||
| 90041-19775 | ||||
| 90041-19864 | ||||
| 90041-19873 | ||||
| 90042-50157 | ||||
| 90042-53018 | ||||
| 90044-64664 | ||||
| Linked diagrams | ||||
| 3512 | ||||
| 4301 | ||||
