M110A-GPNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )ATM

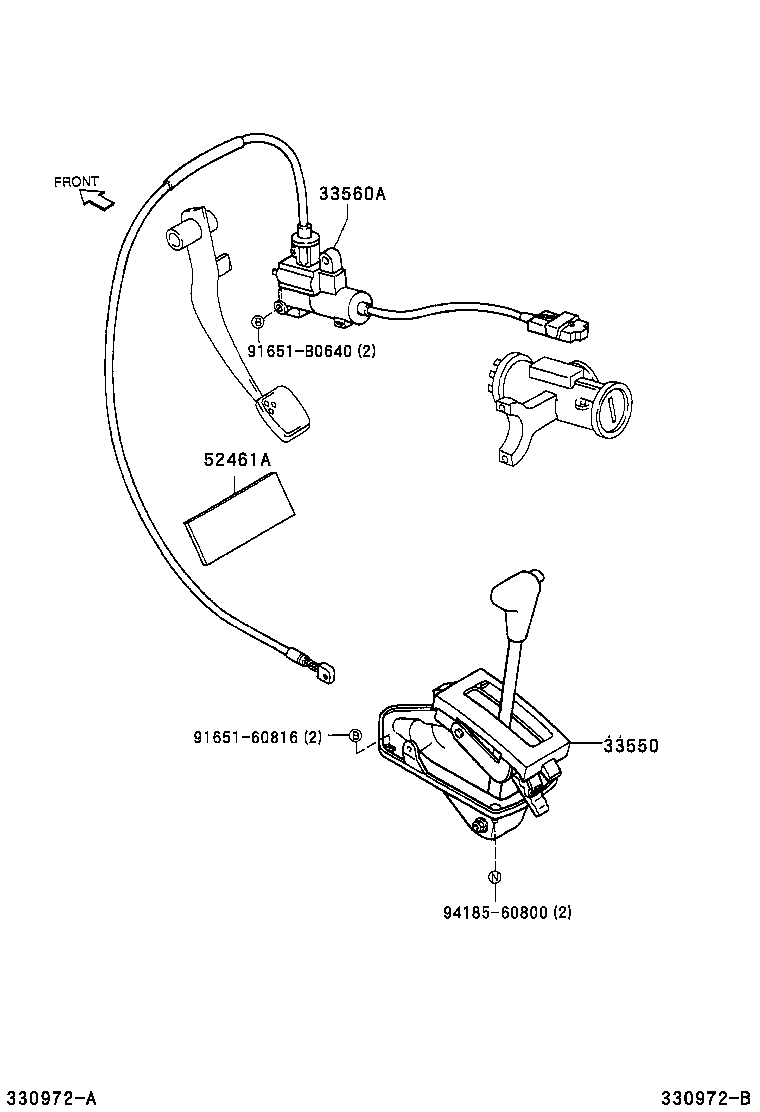

Click highlighted areas on diagram

diagram 33550 33560A 52461A 9165160816 91651B0640 9418560800
Part # Description Qty Price
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-9720303

M100,110..4AT

DARK GRAY,TRIMS6

 1
33560A - CABLE ASSY, SHIFT LOCK RELEASE
33560-97201

M10#,11#..ATM

 1
52461A - CUSHION, SHIFT LOCK RELEASE CABLE
52461-87201

M10#,11#..ATM

 1
Common parts
91651-60816
91651-B0640
94185-60800
