M110A-GPNF (1998)
Toyota Duet
Production
Sep 1998
-
May 2000
Engine
EJDE
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)

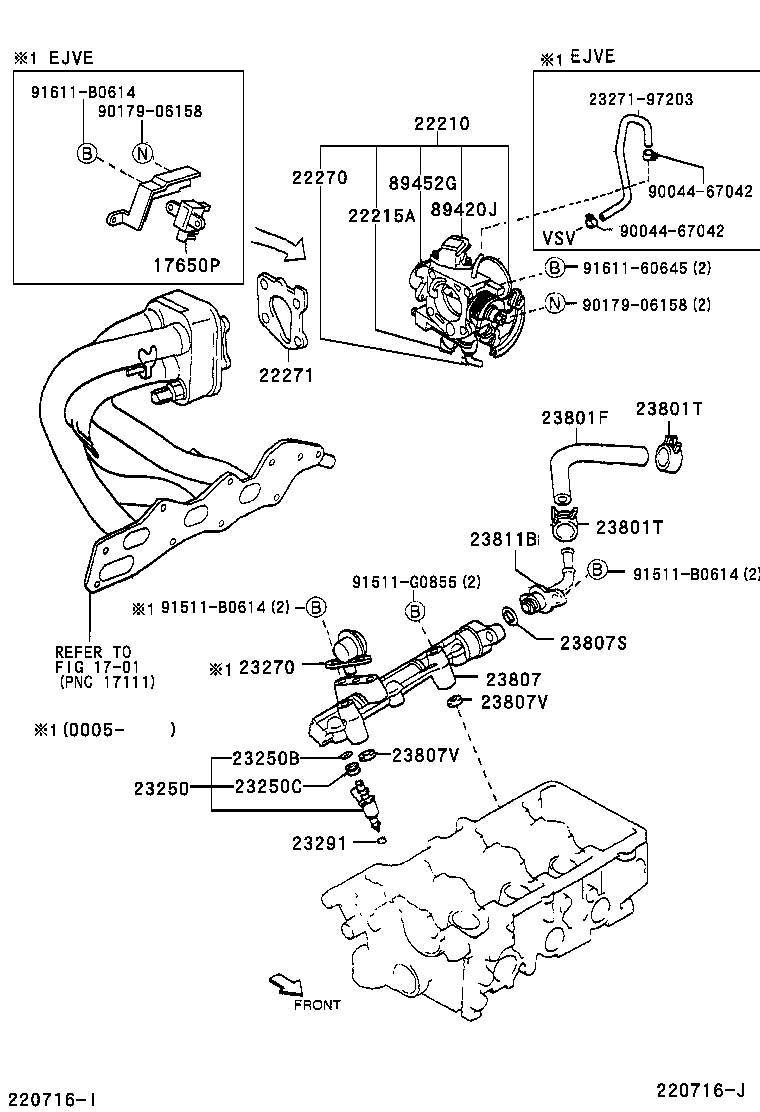

ILLUST NO. 1 OF 2(9809- )EJ#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-97201 |
EJDE..M100,110..4AT |
1 | ||
| 22215A - GASKET, IDLE SPEED CONTROL VALVE | ||||
| 22215-97201 |
EJ#..M100,110 |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-97201 |
EJ#..M100,110 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-97201 |
EJ#..M100,110 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23250-97201 |
EJDE..M100,110 |
3 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90043-01136 |
EJ#..M100,110 |
3 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90044-80391 |
EJ#..M100,110 |
3 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-87701 |
EJ#..M100,110 |
3 | ||
| 23801F - HOSE, FUEL, NO.1 | ||||
| 23271-97201 |
EJ#..M100,110 |
1 | ||
| 23801T - CLAMP OR CLIP, FUEL HOSE(FOR EFI) | ||||
| 90044-67190 |
K3VE,EJ#..M10#,11# |
2 | ||
| 23801T - CLAMP OR CLIP, FUEL HOSE(FOR EFI) | ||||
| 90044-67190 |
K3VE,EJ#..M10#,11# |
2 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23814-97201 |
EJDE..M100,110 |
1 | ||
| 23807S - RING, O(FOR FUEL DELIVARY PIPE) | ||||
| 90043-01263 |
EJ#..M100,110 |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 23845-87205 |
EJ#..M100,110 |
2 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 23845-87205 |
EJ#..M100,110 |
2 | ||
| 23811B - PIPE, FUEL, NO.1 | ||||
| 23811-97201 |
EJ#..M100,110 |
1 | ||
| 89420J - SENSOR ASSY, VACUUM(FOR THROTTLE BODY) | ||||
| 89420-97201 |
M100,110..4AT |
1 | ||
| 89452G - SENSOR, THROTTLE POSITION | ||||
| 89452-87114 |
M100,110 |
1 | ||
| Common parts | ||||
| 23271-97203 | ||||
| 90044-67042 | ||||
| 90179-06158 | ||||
| 91511-B0614 | ||||
| 91511-G0855 | ||||
| 91611-60645 | ||||
| 91611-B0614 | ||||
| Linked diagrams | ||||
| 1701 | ||||

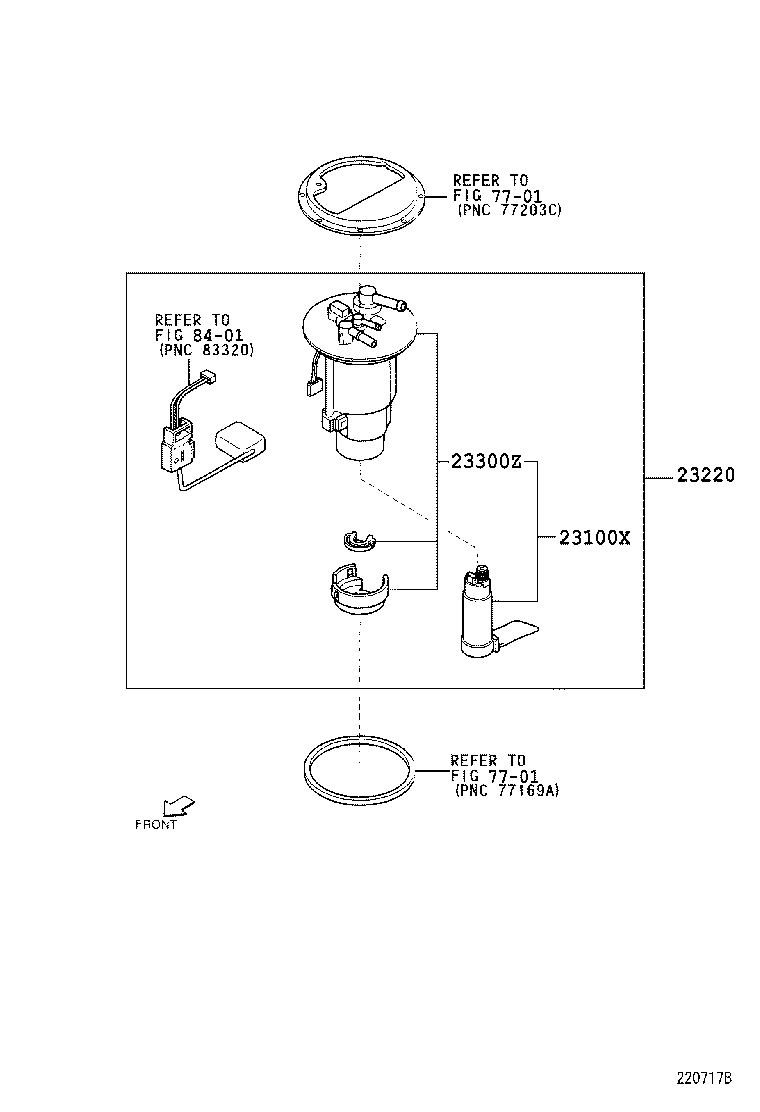

ILLUST NO. 2 OF 2(9809- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23100X - PUMP ASSY, FUEL (ENGINE ROOM SIDE) | ||||
| 23100-97203 |
EJ#..M110 |
1 | ||
| 23220 - PUMP ASSY, FUEL W/FILTER | ||||
| 23210-97203 |
EJ#..M110 |
1 | ||
| 23300Z - FILTER, FUEL(FOR FUEL TANK) | ||||
| C7075-97203 |
EJ#..M110 |
1 | ||
| Linked diagrams | ||||
| 7701 | ||||
| 8401 | ||||
