M110A-GPNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )EJ#..M110

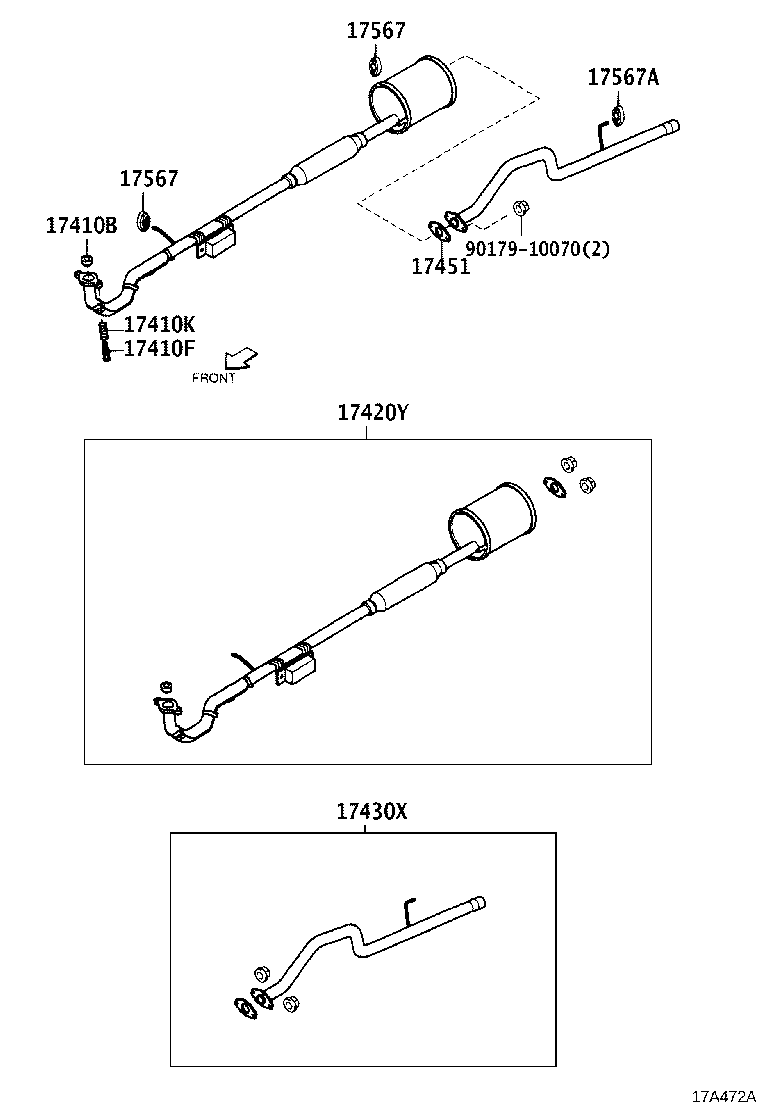

Click highlighted areas on diagram

diagram 17410B 17410F 17410K 17420Y 17430X 17451 17567 17567 17567A 9017910070
Part # Description Qty Price
17410B - GASKET, EXHAUST PIPE
17451-97203

EJ#..M100,110

 1
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
17569-97201

K3VE,EJ#..M10#,11#

 2
17410K - SPRING, EXHAUST PIPE
17152-87201

EJDE..M100,110

 2
17420Y - PIPE SET, EXHAUST, FRONT
17420-B9540

EJDE..M110

 1
17420-B9540

EJDE..M110

 1
17430X - PIPE SET, EXHAUST TAIL
17430-B9550

EJDE..M100,110

 1
17451 - GASKET, EXHAUST PIPE
17458-87705

EJ#..M100,110

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-87210

EJ#..M100,110

 2
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-87210

EJ#..M100,110

 2
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-87503

EJDE..M100,110

 1
Common parts
90179-10070
