M110A-GPNF (1998)
Toyota Duet
Production
Sep 1998
-
May 2000
Engine
EJDE
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9809- )EJ#

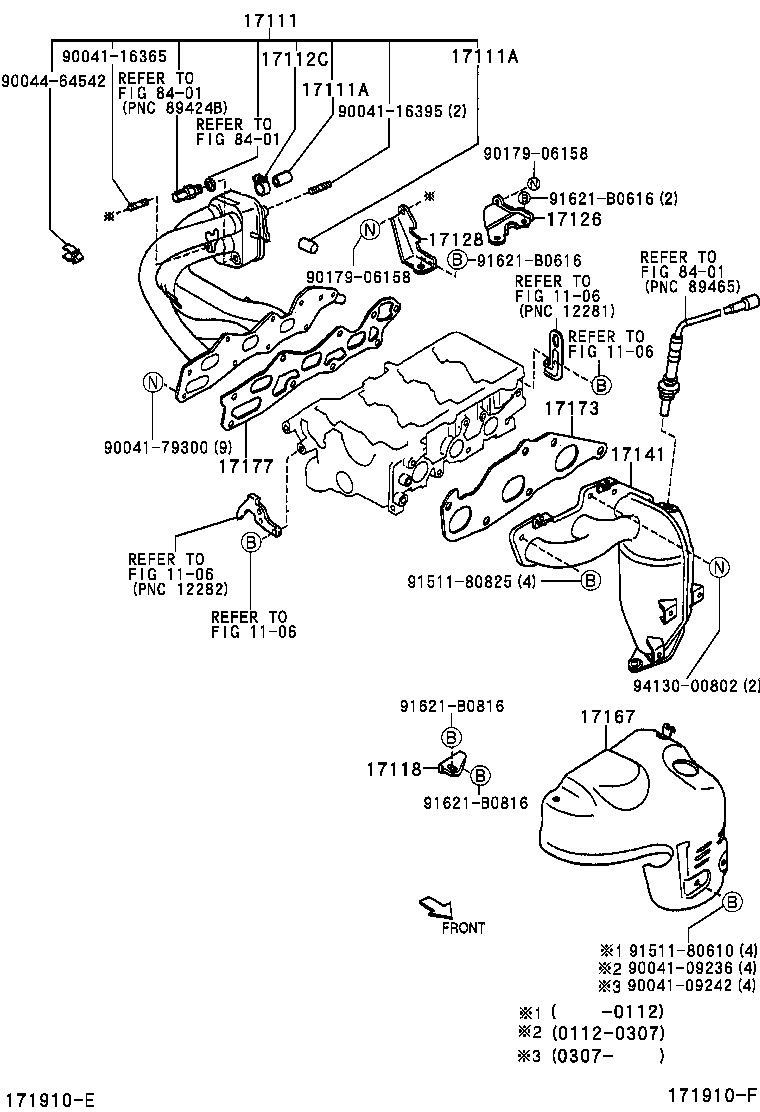

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17120-97211 |
EJ#..M100,110 |
1 | ||
| 17120-97202 |
EJDE..M100,110 |
1 | ||
| 17111A - PLUG, NO.1 | ||||
| 90043-39029 |
EJ#..M100,110 |
2 | ||
| 17111A - PLUG, NO.1 | ||||
| 90043-39029 |
EJ#..M100,110 |
2 | ||
| 17112C - CLIP(FOR INTAKE MANIFOLD) | ||||
| 90044-67122 |
EJ#..M100,110 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-97201 |
EJDE..M100,110 |
1 | ||
| 17126 - STAY, SURGE TANK, NO.2 | ||||
| 17126-97201 |
EJ#..M100,110 |
1 | ||
| 17128 - GASKET, SURGE TANK | ||||
| 17128-97201 |
EJ#..M100,110 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17140-97201 |
EJDE..M100,110 |
1 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17897-97201 |
EJDE..M100,110 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-87229 |
EJ#..M100,110 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-97202 |
EJ#..M100,110 |
1 | ||
| Common parts | ||||
| 90041-09236 | ||||
| 90041-09242 | ||||
| 90041-16365 | ||||
| 90041-16395 | ||||
| 90041-79300 | ||||
| 90044-64542 | ||||
| 90179-06158 | ||||
| 91511-80610 | ||||
| 91511-80825 | ||||
| 91621-B0616 | ||||
| 91621-B0816 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 8401 | ||||
