M110A-GPNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )EJ#

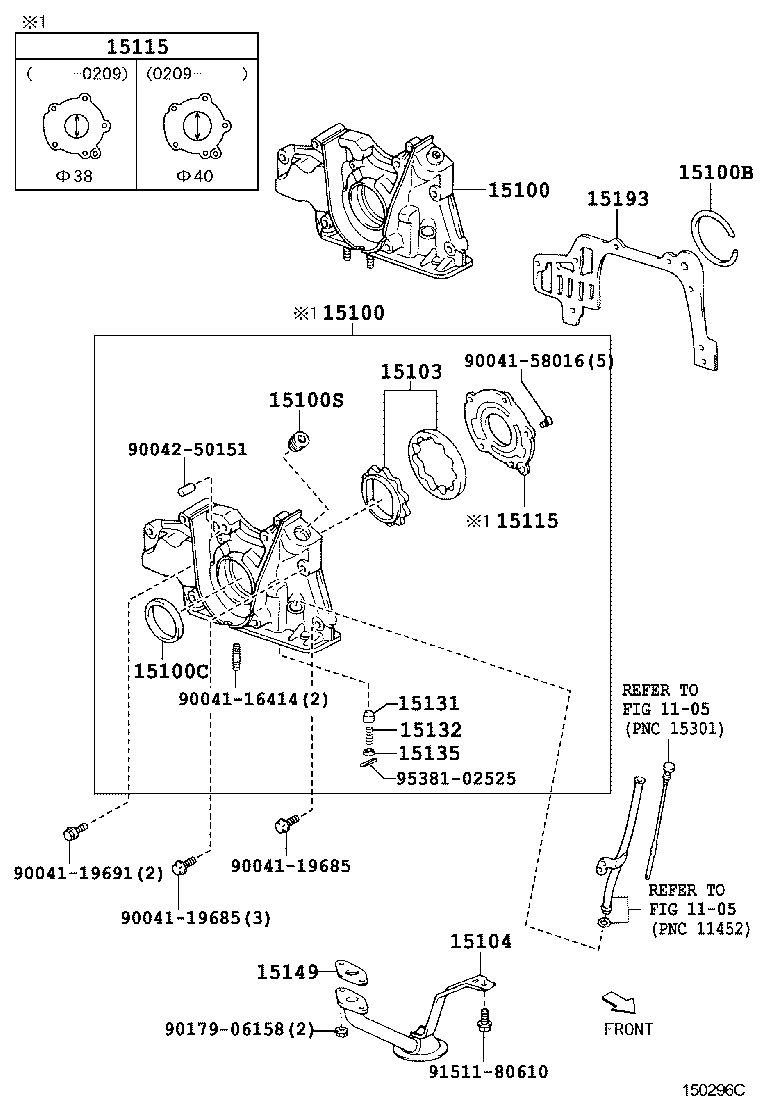

Click highlighted areas on diagram

diagram 1105 1105 15100 15100 15100B 15100C 15100S 15103 15104 15115 15115 15131 15132 15135 15149 15193 9004116414 9004119685 9004119685 9004119691 9004158016 9004250151 9017906158 9151180610 9538102525
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-97201

EJ#..M100,110

 1
15100 - PUMP ASSY, OIL
15100-97201

EJ#..M100,110

 1
15100B - RING, O(FOR OIL PUMP)
90043-01135

EJ#..M100,110

 1
15100C - SEAL(FOR OIL PUMP)
90043-11284

EJ#..M100,110

 1
15100S - PLUG, TAPER SCREW(FOR OIL PUMP)
90043-44012

EJ#..M100,110

 1
15103 - GEAR SET, OIL PUMP
15102-87201

EJ#..M100,110

 1
15104 - STRAINER SUB-ASSY, OIL
15140-87201

EJ#..M100,110

 1
15115 - COVER, OIL PUMP
15115-87201

EJ#..M100,110

 1
15115 - COVER, OIL PUMP
15115-87201

EJ#..M100,110

 1
15131 - VALVE, OIL PUMP RELIEF
15131-87201

EJ#..M100,110

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
90045-01519

EJ#..M100,110

 1
15135 - RETAINER, OIL PUMP RELIEF VALVE
15135-87701

EJ#..M100,110

 1
15149 - GASKET, OIL STRAINER FLANGE
15149-87203

EJ#..M100,110

 1
15193 - GASKET, OIL PUMP
15197-87206

EJ#..M100,110

 1
Common parts
90041-16414
90041-19685
90041-19691
90041-58016
90042-50151
90179-06158
91511-80610
95381-02525
Linked diagrams
1105
