M110A-GPNF (1998)
Toyota Duet

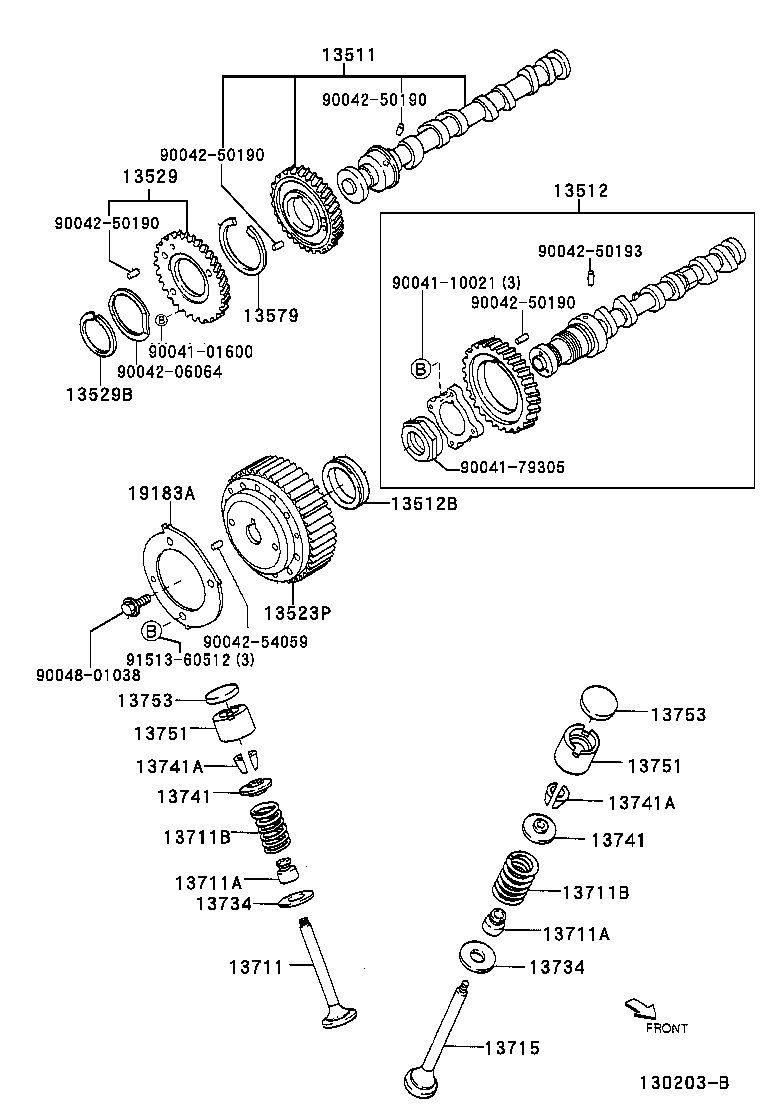

ILLUST NO. 1 OF 2(9809-0005)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13511 - CAMSHAFT | ||||
| 13510-87206 |
EJDE..M100,110 |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13520-97203 |
EJDE..M100,110 |
1 | ||
| 13512B - SEAL, TYPE T OIL(FOR CAMSHAFT NO.2) | ||||
| 90043-11337 |
EJ#..M100,110 |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-97202 |
EJ#..M100,110 |
1 | ||
| 13529 - GEAR, CAMSHAFT SUB | ||||
| 13509-87203 |
EJ#..M100,110 |
1 | ||
| 13529B - RING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR) | ||||
| 90045-20292 |
EJ#..M100,110 |
1 | ||
| 13579 - WASHER, CAMSHAFT TIMING GEAR BOLT | ||||
| 13579-87201 |
EJ#..M100,110 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-97205 |
EJ#..M100,110 |
6 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90048-12021 |
EJ#..M100,110 |
12 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90048-12021 |
EJ#..M100,110 |
12 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90045-01708 |
EJ#..M100,110 TOGO |
12 | ||
| 90045-01565 |
EJ#..M100,110 SANKO |
12 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90045-01708 |
EJ#..M100,110 TOGO |
12 | ||
| 90045-01565 |
EJ#..M100,110 SANKO |
12 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-97203 |
EJ#..M100,110 |
6 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-87206 |
EJ#..M100,110 |
12 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-87206 |
EJ#..M100,110 |
12 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-97201 |
EJ#..M100,110 |
12 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-97201 |
EJ#..M100,110 |
12 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90048-13013 |
EJ#..M100,110 |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90048-13013 |
EJ#..M100,110 |
24 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-87202 |
EJ#..M100,110 |
12 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-87202 |
EJ#..M100,110 |
12 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13735-87203 |
EJ#..M100,110 厚さ=2.52 |
12 | ||
| 13735-87207 |
EJ#..M100,110 厚さ=2.60 |
12 | ||
| 13735-87206 |
EJ#..M100,110 厚さ=2.58 |
12 | ||
| 13735-87205 |
EJ#..M100,110 厚さ=2.56 |
12 | ||
| 13735-87202 |
EJ#..M100,110 厚さ=2.50 |
12 | ||
| 13735-87213 |
EJ#..M100,110 厚さ=2.72 |
12 | ||
| 13735-87209 |
EJ#..M100,110 厚さ=2.64 |
12 | ||
| 13735-87208 |
EJ#..M100,110 厚さ=2.62 |
12 | ||
| 13735-87216 |
EJ#..M100,110 厚さ=2.78 |
12 | ||
| 13735-87210 |
EJ#..M100,110 厚さ=2.66 |
12 | ||
| 13735-87204 |
EJ#..M100,110 厚さ=2.54 |
12 | ||
| 13735-87214 |
EJ#..M100,110 厚さ=2.74 |
12 | ||
| 13735-87212 |
EJ#..M100,110 厚さ=2.70 |
12 | ||
| 13735-87218 |
EJ#..M100,110 厚さ=2.82 |
12 | ||
| 13735-87224 |
EJ#..M100,110 厚さ=2.94 |
12 | ||
| 13735-87222 |
EJ#..M100,110 厚さ=2.90 |
12 | ||
| 13735-87211 |
EJ#..M100,110 厚さ=2.68 |
12 | ||
| 13735-87220 |
EJ#..M100,110 厚さ=2.86 |
12 | ||
| 13735-87217 |
EJ#..M100,110 厚さ=2.80 |
12 | ||
| 13735-87234 |
EJ#..M100,110 厚さ=3.14 |
12 | ||
| 13735-87215 |
EJ#..M100,110 厚さ=2.76 |
12 | ||
| 13735-87226 |
EJ#..M100,110 厚さ=2.98 |
12 | ||
| 13735-87232 |
EJ#..M100,110 厚さ=3.10 |
12 | ||
| 13735-87229 |
EJ#..M100,110 厚さ=3.04 |
12 | ||
| 13735-87223 |
EJ#..M100,110 厚さ=2.92 |
12 | ||
| 13735-87231 |
EJ#..M100,110 厚さ=3.08 |
12 | ||
| 13735-87225 |
EJ#..M100,110 厚さ=2.96 |
12 | ||
| 13735-87221 |
EJ#..M100,110 厚さ=2.88 |
12 | ||
| 13735-87237 |
EJ#..M100,110 厚さ=3.20 |
12 | ||
| 13735-87230 |
EJ#..M100,110 厚さ=3.06 |
12 | ||
| 13735-87239 |
EJ#..M100,110 厚さ=3.24 |
12 | ||
| 13735-87242 |
EJ#..M100,110 厚さ=3.30 |
12 | ||
| 13735-87235 |
EJ#..M100,110 厚さ=3.16 |
12 | ||
| 13735-87228 |
EJ#..M100,110 厚さ=3.02 |
12 | ||
| 13735-87227 |
EJ#..M100,110 厚さ=3.00 |
12 | ||
| 13735-87233 |
EJ#..M100,110 厚さ=3.12 |
12 | ||
| 13735-87240 |
EJ#..M100,110 厚さ=3.26 |
12 | ||
| 13735-87219 |
EJ#..M100,110 厚さ=2.84 |
12 | ||
| 13735-87238 |
EJ#..M100,110 厚さ=3.22 |
12 | ||
| 13735-87241 |
EJ#..M100,110 厚さ=3.28 |
12 | ||
| 13735-87236 |
EJ#..M100,110 厚さ=3.18 |
12 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13735-87203 |
EJ#..M100,110 厚さ=2.52 |
12 | ||
| 13735-87207 |
EJ#..M100,110 厚さ=2.60 |
12 | ||
| 13735-87206 |
EJ#..M100,110 厚さ=2.58 |
12 | ||
| 13735-87205 |
EJ#..M100,110 厚さ=2.56 |
12 | ||
| 13735-87202 |
EJ#..M100,110 厚さ=2.50 |
12 | ||
| 13735-87213 |
EJ#..M100,110 厚さ=2.72 |
12 | ||
| 13735-87209 |
EJ#..M100,110 厚さ=2.64 |
12 | ||
| 13735-87208 |
EJ#..M100,110 厚さ=2.62 |
12 | ||
| 13735-87216 |
EJ#..M100,110 厚さ=2.78 |
12 | ||
| 13735-87210 |
EJ#..M100,110 厚さ=2.66 |
12 | ||
| 13735-87204 |
EJ#..M100,110 厚さ=2.54 |
12 | ||
| 13735-87214 |
EJ#..M100,110 厚さ=2.74 |
12 | ||
| 13735-87212 |
EJ#..M100,110 厚さ=2.70 |
12 | ||
| 13735-87218 |
EJ#..M100,110 厚さ=2.82 |
12 | ||
| 13735-87224 |
EJ#..M100,110 厚さ=2.94 |
12 | ||
| 13735-87222 |
EJ#..M100,110 厚さ=2.90 |
12 | ||
| 13735-87211 |
EJ#..M100,110 厚さ=2.68 |
12 | ||
| 13735-87220 |
EJ#..M100,110 厚さ=2.86 |
12 | ||
| 13735-87217 |
EJ#..M100,110 厚さ=2.80 |
12 | ||
| 13735-87234 |
EJ#..M100,110 厚さ=3.14 |
12 | ||
| 13735-87215 |
EJ#..M100,110 厚さ=2.76 |
12 | ||
| 13735-87226 |
EJ#..M100,110 厚さ=2.98 |
12 | ||
| 13735-87232 |
EJ#..M100,110 厚さ=3.10 |
12 | ||
| 13735-87229 |
EJ#..M100,110 厚さ=3.04 |
12 | ||
| 13735-87223 |
EJ#..M100,110 厚さ=2.92 |
12 | ||
| 13735-87231 |
EJ#..M100,110 厚さ=3.08 |
12 | ||
| 13735-87225 |
EJ#..M100,110 厚さ=2.96 |
12 | ||
| 13735-87221 |
EJ#..M100,110 厚さ=2.88 |
12 | ||
| 13735-87237 |
EJ#..M100,110 厚さ=3.20 |
12 | ||
| 13735-87230 |
EJ#..M100,110 厚さ=3.06 |
12 | ||
| 13735-87239 |
EJ#..M100,110 厚さ=3.24 |
12 | ||
| 13735-87242 |
EJ#..M100,110 厚さ=3.30 |
12 | ||
| 13735-87235 |
EJ#..M100,110 厚さ=3.16 |
12 | ||
| 13735-87228 |
EJ#..M100,110 厚さ=3.02 |
12 | ||
| 13735-87227 |
EJ#..M100,110 厚さ=3.00 |
12 | ||
| 13735-87233 |
EJ#..M100,110 厚さ=3.12 |
12 | ||
| 13735-87240 |
EJ#..M100,110 厚さ=3.26 |
12 | ||
| 13735-87219 |
EJ#..M100,110 厚さ=2.84 |
12 | ||
| 13735-87238 |
EJ#..M100,110 厚さ=3.22 |
12 | ||
| 13735-87241 |
EJ#..M100,110 厚さ=3.28 |
12 | ||
| 13735-87236 |
EJ#..M100,110 厚さ=3.18 |
12 | ||
| 19183A - ROTOR, SIGNAL | ||||
| 19183-97203 |
EJ#..M100,110 |
1 | ||
| Common parts | ||||
| 90041-01600 | ||||
| 90041-10021 | ||||
| 90041-79305 | ||||
| 90042-06064 | ||||
| 90042-50190 | ||||
| 90042-50193 | ||||
| 90042-54059 | ||||
| 90048-01038 | ||||
| 91513-60512 | ||||

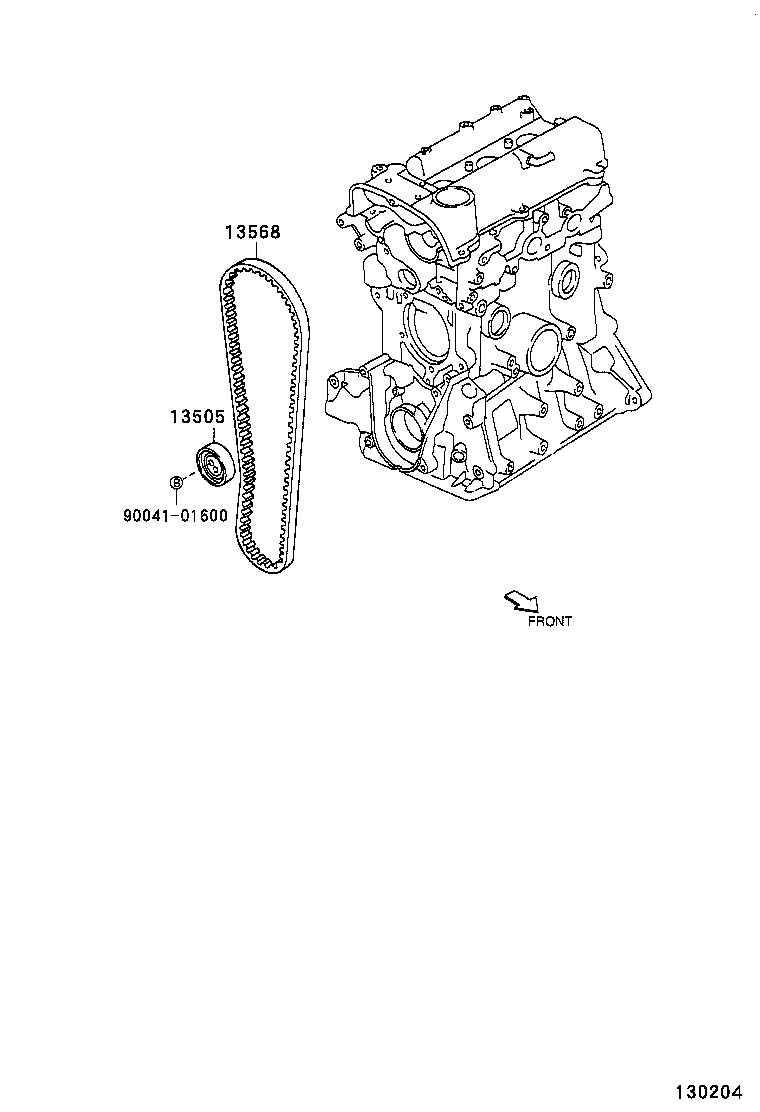

ILLUST NO. 2 OF 2(9809- )EJ#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13505 - IDLER SUB-ASSY, TIMING BELT, NO.1 | ||||
| 13505-97201 |
EJ#..M100,110 |
1 | ||
| 13568 - BELT, TIMING | ||||
| 13514-97204 |
EJ#..M100,110 |
1 | ||
| Common parts | ||||
| 90041-01600 | ||||
