M110A-GPNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )EJ#

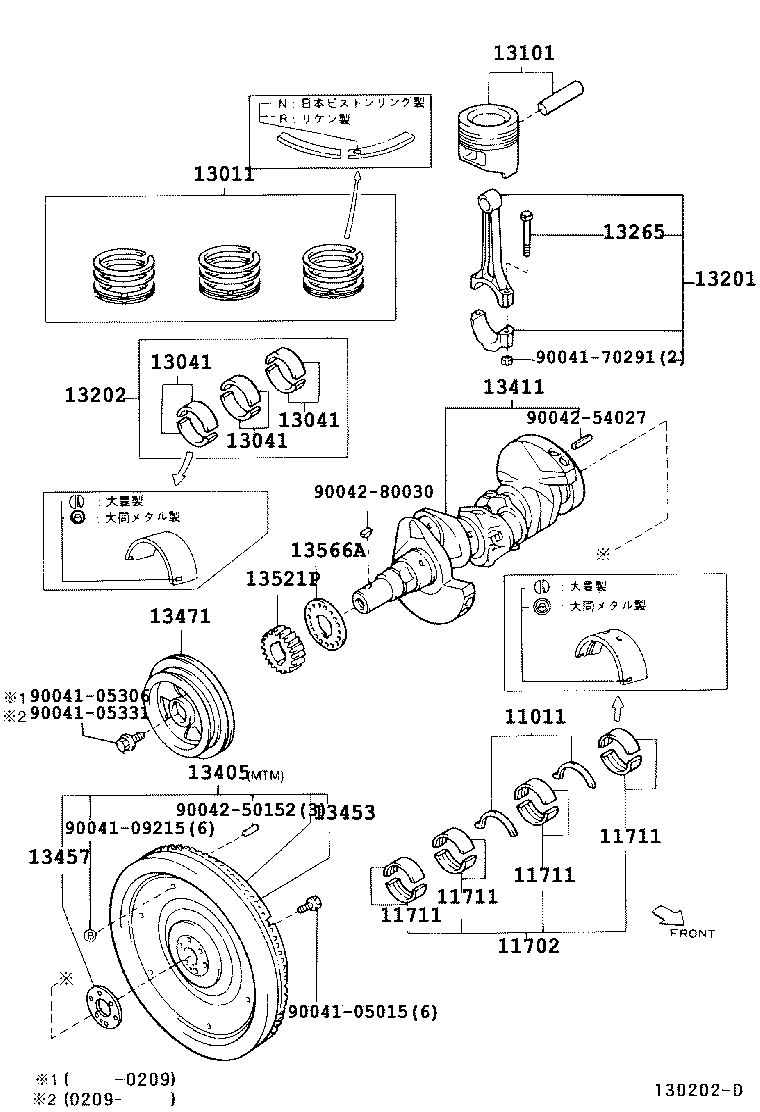

Click highlighted areas on diagram

diagram 11011 11702 11711 11711 11711 11711 13011 13041 13041 13041 13101 13201 13202 13265 13405 13411 13453 13457 13471 13521P 13566A 9004105015 9004105306 9004105331 9004109215 9004170291 9004250152 9004254027 9004280030
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11011-87202

EJ#..M100,110

STD

 2
11013-87202

EJ#..M100,110

O/S 0.250

 2
11012-87202

EJ#..M100,110

O/S 0.125

 2
11702 - BEARING SET, CRANKSHAFT
11704-97202

EJ#..M100,110

U/S 0.50

 1
11703-97202

EJ#..M100,110

U/S 0.25

 1
11711 - BEARING, CRANKSHAFT
11701-9720202

EJ#..M100,110

MARK 2,識別色 = 緑

 4
11701-9720207

EJ#..M100,110

XXXX,識別色 = 紫色

 4
11701-9720203

EJ#..M100,110

XXXX,識別色=茶色

 4
11701-9720205

EJ#..M100,110

XXXX,識別色 = 青

 4
11701-9720204

EJ#..M100,110

XXXX,識別色=ﾌﾞﾗｯｸ

 4
11701-9720206

EJ#..M100,110

XXXX,識別色 = ﾋﾟﾝｸ

 4
11701-9720201

EJ#..M100,110

XXXX,識別色 = 黄

 4
11711 - BEARING, CRANKSHAFT
11701-9720202

EJ#..M100,110

MARK 2,識別色 = 緑

 4
11701-9720207

EJ#..M100,110

XXXX,識別色 = 紫色

 4
11701-9720203

EJ#..M100,110

XXXX,識別色=茶色

 4
11701-9720205

EJ#..M100,110

XXXX,識別色 = 青

 4
11701-9720204

EJ#..M100,110

XXXX,識別色=ﾌﾞﾗｯｸ

 4
11701-9720206

EJ#..M100,110

XXXX,識別色 = ﾋﾟﾝｸ

 4
11701-9720201

EJ#..M100,110

XXXX,識別色 = 黄

 4
11711 - BEARING, CRANKSHAFT
11701-9720202

EJ#..M100,110

MARK 2,識別色 = 緑

 4
11701-9720207

EJ#..M100,110

XXXX,識別色 = 紫色

 4
11701-9720203

EJ#..M100,110

XXXX,識別色=茶色

 4
11701-9720205

EJ#..M100,110

XXXX,識別色 = 青

 4
11701-9720204

EJ#..M100,110

XXXX,識別色=ﾌﾞﾗｯｸ

 4
11701-9720206

EJ#..M100,110

XXXX,識別色 = ﾋﾟﾝｸ

 4
11701-9720201

EJ#..M100,110

XXXX,識別色 = 黄

 4
11711 - BEARING, CRANKSHAFT
11701-9720202

EJ#..M100,110

MARK 2,識別色 = 緑

 4
11701-9720207

EJ#..M100,110

XXXX,識別色 = 紫色

 4
11701-9720203

EJ#..M100,110

XXXX,識別色=茶色

 4
11701-9720205

EJ#..M100,110

XXXX,識別色 = 青

 4
11701-9720204

EJ#..M100,110

XXXX,識別色=ﾌﾞﾗｯｸ

 4
11701-9720206

EJ#..M100,110

XXXX,識別色 = ﾋﾟﾝｸ

 4
11701-9720201

EJ#..M100,110

XXXX,識別色 = 黄

 4
13011 - RING SET, PISTON
13012-97201

EJ#..M100,110

O/S 0.25

 1
13011-97201

EJ#..M100,110

STD

 1
13013-97201

EJ#..M100,110

O/S 0.50

 1
13041 - BEARING, CONNECTING ROD
13041-8720305

EJ#..M100,110

XXXX,識別色 = 青

 3
13041-8720301

EJ#..M100,110

XXXX,識別色 = 黄

 3
13041-8720304

EJ#..M100,110

XXXX,識別色=ﾌﾞﾗｯｸ

 3
13041-8720302

EJ#..M100,110

MARK 2,識別色 = 緑

 3
13041-8720303

EJ#..M100,110

XXXX,識別色=茶色

 3
13041 - BEARING, CONNECTING ROD
13041-8720305

EJ#..M100,110

XXXX,識別色 = 青

 3
13041-8720301

EJ#..M100,110

XXXX,識別色 = 黄

 3
13041-8720304

EJ#..M100,110

XXXX,識別色=ﾌﾞﾗｯｸ

 3
13041-8720302

EJ#..M100,110

MARK 2,識別色 = 緑

 3
13041-8720303

EJ#..M100,110

XXXX,識別色=茶色

 3
13041 - BEARING, CONNECTING ROD
13041-8720305

EJ#..M100,110

XXXX,識別色 = 青

 3
13041-8720301

EJ#..M100,110

XXXX,識別色 = 黄

 3
13041-8720304

EJ#..M100,110

XXXX,識別色=ﾌﾞﾗｯｸ

 3
13041-8720302

EJ#..M100,110

MARK 2,識別色 = 緑

 3
13041-8720303

EJ#..M100,110

XXXX,識別色=茶色

 3
13101 - PISTON SUB-ASSY, W/PIN
13103-97201

EJ#..M100,110

O/S 0.50

 3
13101-9720102

EJ#..M100,110

STD,MARK2,ﾏｰｸ 2

 3
13102-97201

EJ#..M100,110

O/S 0.25

 3
13101-9720101

EJ#..M100,110

STD,MARK1,ﾏｰｸ 1

 3
13101-9720103

EJ#..M100,110

STD,MARK3,ﾏｰｸ 3

 3
13201 - ROD SUB-ASSY, CONNECTING
13201-87209

EJ#..M100,110

 3
13202 - BEARING SET, CONNECTING ROD
13203-87203

EJ#..M100,110

U/S 0.25

 1
13265 - BOLT, CONNECTING ROD
13265-87202

EJ#..M100,110

 6
13411 - CRANKSHAFT
13401-97201

EJ#..M100,110

 1
13471 - PULLEY, CRANKSHAFT
13470-97201

EJ#..M100,110

 1
13521P - PULLEY, CRANKSHAFT TIMING
13521-97201

EJ#..M100,110

 1
13566A - GUIDE, TIMING BELT
13482-87203

EJ#..M100,110

 1
Common parts
90041-05015
90041-05306
90041-05331
90041-09215
90041-70291
90042-50152
90042-54027
90042-80030
