M110A-GPNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )EJ#

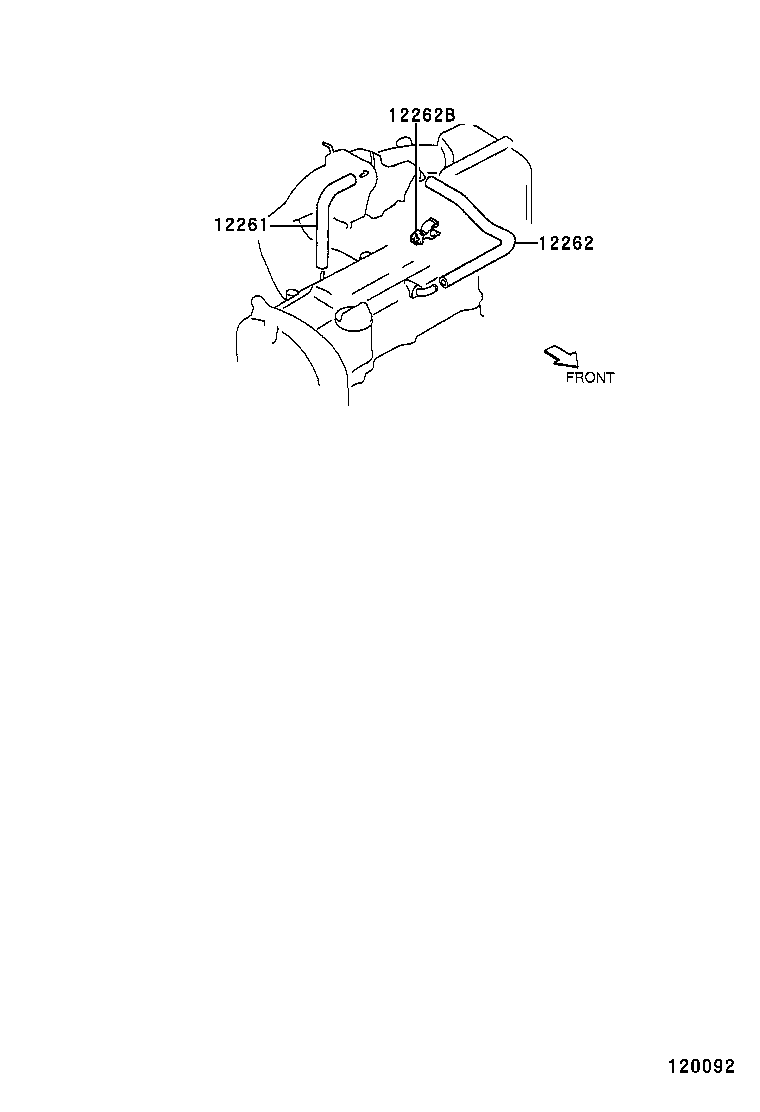

Click highlighted areas on diagram

diagram 12261 12262 12262B
Part # Description Qty Price
12261 - HOSE, VENTILATION
12261-87209

EJDE..M100,110

 1
12262 - HOSE, VENTILATION, NO.2
12261-97206

EJ#..M100,110

 1
12262B - CLAMP(FOR VENTILATION HOSE)
90044-64389

EJ#..M100,110

 1
