M110A-GPNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )K3VE,EJ#..M11#

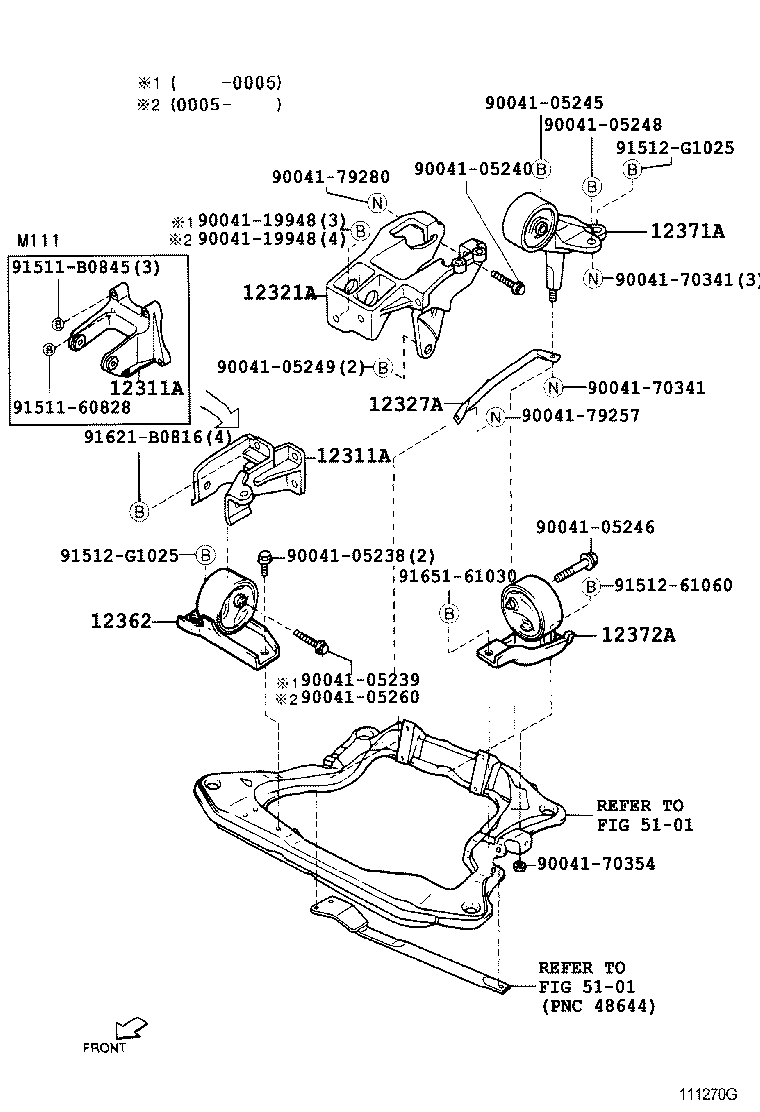

Click highlighted areas on diagram

diagram 12311A 12311A 12321A 12327A 12362 12371A 12372A 5101 5101 9004105238 9004105239 9004105240 9004105245 9004105246 9004105248 9004105249 9004105260 9004119948 9004119948 9004170341 9004170341 9004170354 9004179257 9004179280 9151160828 91511B0845 9151261060 91512G1025 91512G1025 91621B0816 9165161030
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-97201

EJDE..M100,110

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-97201

EJDE..M100,110

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-97202

EJ#..M110

 1
12327A - STAY, ENGINE MOUNTING, NO.2 RH
12327-97202

EJ#..M110

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12305-97203

EJDE..M100,110..4AT

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12306-97205

EJDE..M110..4AT

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12373-97202

EJ#..M110;EJ#..M100..5F

 1
12373-97202

EJDE..M110;EJDE..M100..5F

 1
Common parts
90041-05238
90041-05239
90041-05240
90041-05245
90041-05246
90041-05248
90041-05249
90041-05260
90041-19948
90041-70341
90041-70354
90041-79257
90041-79280
91511-60828
91511-B0845
91512-61060
91512-G1025
91621-B0816
91651-61030
Linked diagrams
5101
