M110A-GPNF (1998)
Toyota Duet
Production
Sep 1998
-
May 2000
Engine
EJDE
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)

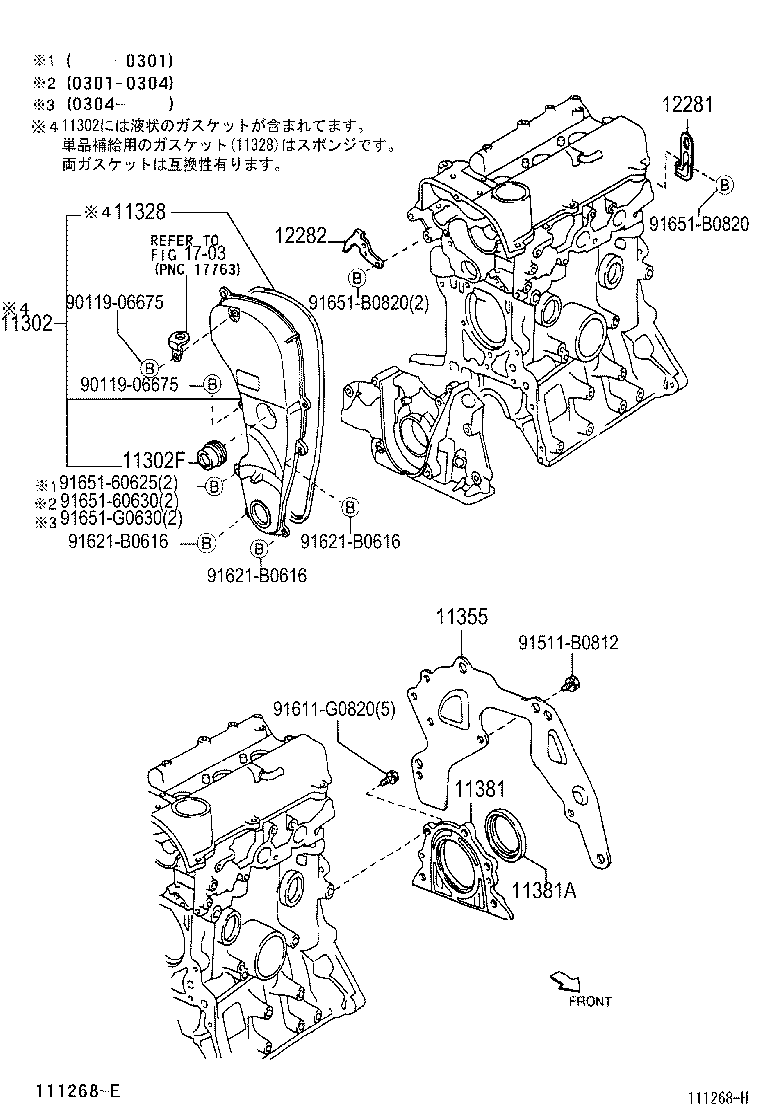

ILLUST NO. 1 OF 2(9809- )EJ#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11302-97203 |
EJ#..M100,110 |
1 | ||
| 11302F - BUSH(FOR TIMING GEAR COVER) | ||||
| 90044-80593 |
EJ#..M100,110 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-87209 |
EJ#..M100,110 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-97203 |
EJ#..M100,110..4AT |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-87206 |
EJ#..M100,110 |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90043-11283 |
EJDE..M100,110 |
1 | ||
| 12281 - HANGER, ENGINE, NO.1 | ||||
| 12281-87214 |
EJ#..M100,110 |
1 | ||
| 12282 - HANGER, ENGINE, NO.2 | ||||
| 12282-87215 |
EJ#..M100,110 |
1 | ||
| Common parts | ||||
| 90119-06675 | ||||
| 91511-B0812 | ||||
| 91611-G0820 | ||||
| 91621-B0616 | ||||
| 91651-60625 | ||||
| 91651-60630 | ||||
| 91651-B0820 | ||||
| 91651-G0630 | ||||
| Linked diagrams | ||||
| 1703 | ||||

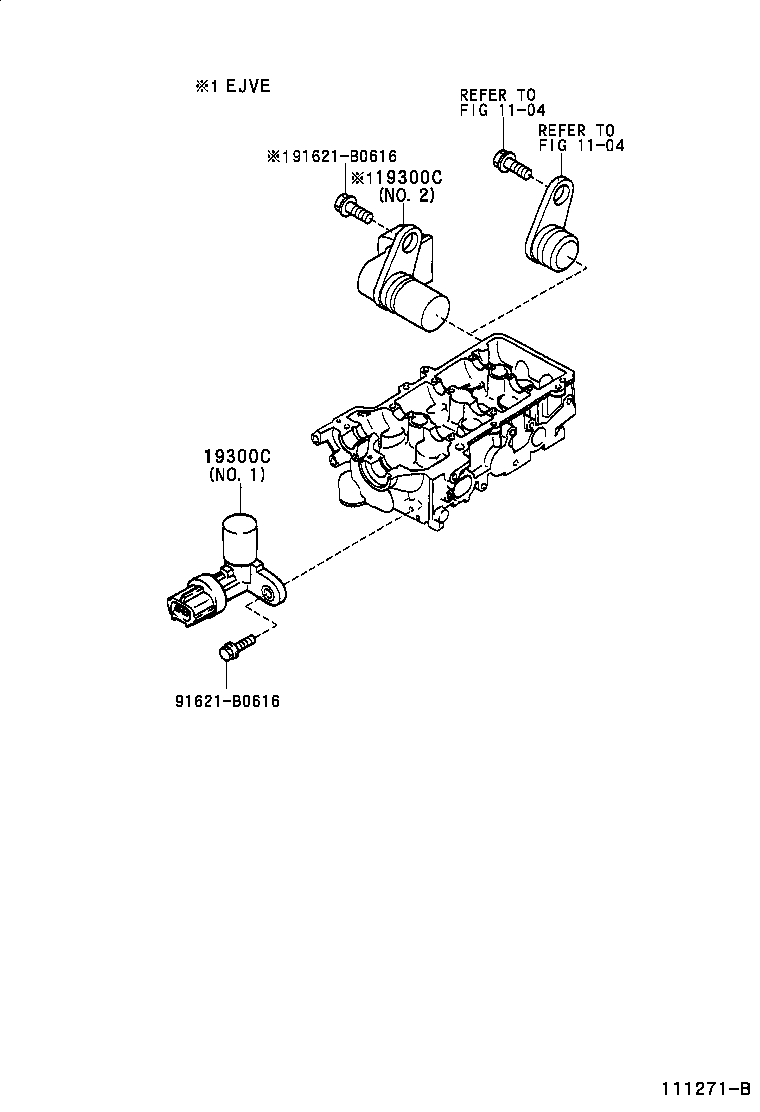

ILLUST NO. 2 OF 2(9809- )EJ#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19300C - SENSOR ASSY, CAM POSITION | ||||
| 19300-97204 |
EJ#..M100,110 NO.1 |
1 | ||
| 19300C - SENSOR ASSY, CAM POSITION | ||||
| 19300-97204 |
EJ#..M100,110 NO.1 |
1 | ||
| Common parts | ||||
| 91621-B0616 | ||||
| Linked diagrams | ||||
| 1104 | ||||
