M110A-GPNF (1998)
Toyota Duet
Production
Sep 1998
-
May 2000
Engine
EJDE
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9809- )EJ#

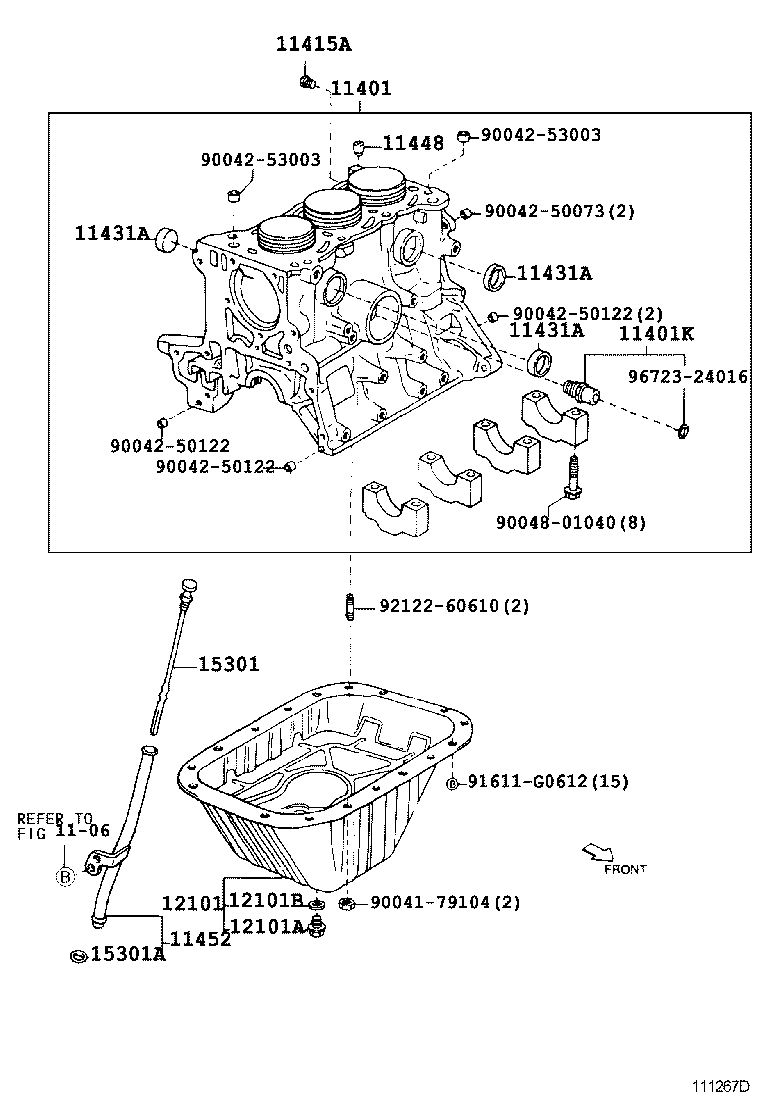

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-97213 |
EJ#..M100,110 |
1 | ||
| 11401K - UNION(FOR OIL FILTER BRACKET) | ||||
| 90044-04053 |
EJ#..M100,110 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90043-45030 |
EJ#..M100,110 |
2 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-13000 |
EJDE..M100,110 |
6 | ||
| 96411-63000 |
EJ#..M100,110 |
4 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-13000 |
EJDE..M100,110 |
6 | ||
| 96411-63000 |
EJ#..M100,110 |
4 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-13000 |
EJDE..M100,110 |
6 | ||
| 96411-63000 |
EJ#..M100,110 |
4 | ||
| 11448 - ORIFICE, CYLINDER BLOCK OIL | ||||
| 11448-87201 |
EJ#..M100,110 |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11409-97201 |
EJ#..M100,110 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-87225 |
EJ#..M100,110 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90043-41041 |
K3VE,EJ#..M10#,11# |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90044-30281 |
K3VE,EJ#..M10#,11# |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-87215 |
EJ#..M100,110 |
1 | ||
| 15301A - RING, O(FOR OIL LEVEL GAGE) | ||||
| 96721-19009 |
EJ#..M100,110 |
1 | ||
| Common parts | ||||
| 90041-79104 | ||||
| 90042-50073 | ||||
| 90042-50122 | ||||
| 90042-53003 | ||||
| 90048-01040 | ||||
| 91611-G0612 | ||||
| 92122-60610 | ||||
| 96723-24016 | ||||
| Linked diagrams | ||||
| 1106 | ||||
