M110A-GPNE (2000)

Toyota Duet

Production May 2000 - May 2004
Engine EJVE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0005- )

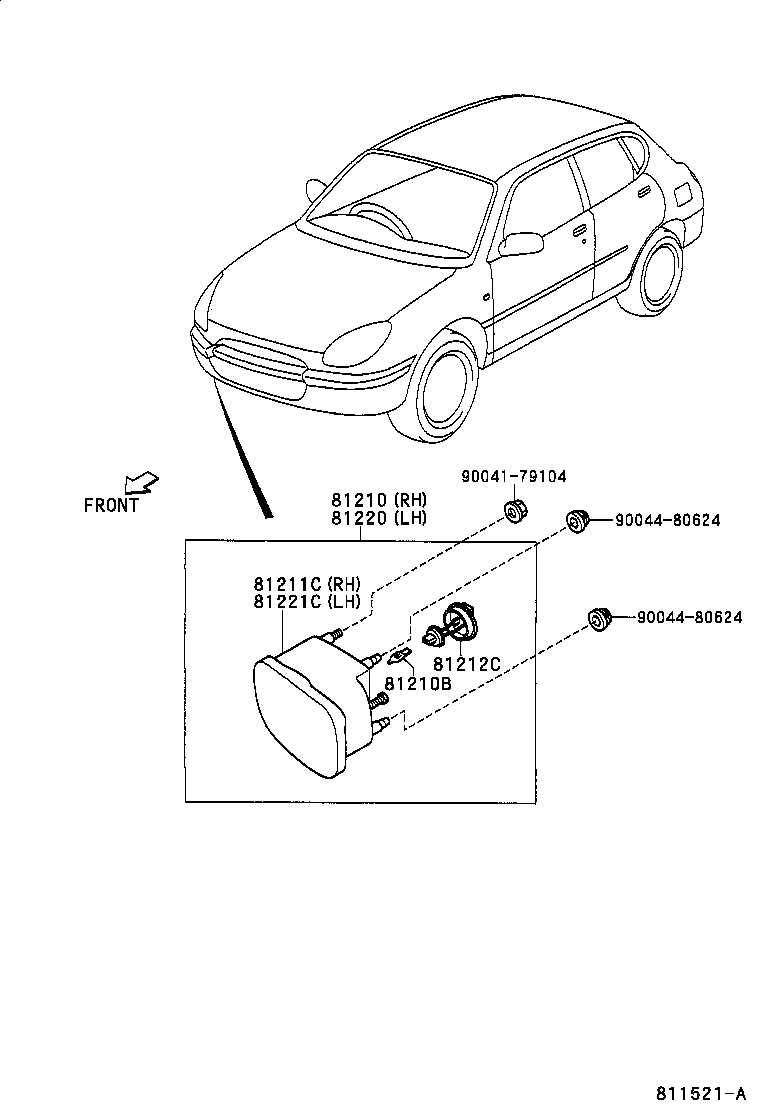

Click highlighted areas on diagram

diagram 81210 81210B 81211C 81212C 81220 81221C 9004179104 9004480624 9004480624
Part # Description Qty Price
81210 - LAMP ASSY, FOG
81210-97403

M10#,11#

ﾅｼ(ｼｪｰﾄﾞ),35W

 1
81210B - BULB, FOG LAMP
90981-13018

M10#,11#

12V 55W,ﾊﾛｹﾞﾝ

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-97403

M10#,11#..V,X

ﾂｰﾘﾝｸﾞ 35W

 1
81220 - LAMP ASSY, FOG, LH
81220-97403

M10#,11#

ﾅｼ(ｼｪｰﾄﾞ),35W

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-97403

M10#,11#..V,X

ﾂｰﾘﾝｸﾞ 35W

 1
Common parts
90041-79104
90044-80624
