M110A-GPGF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )

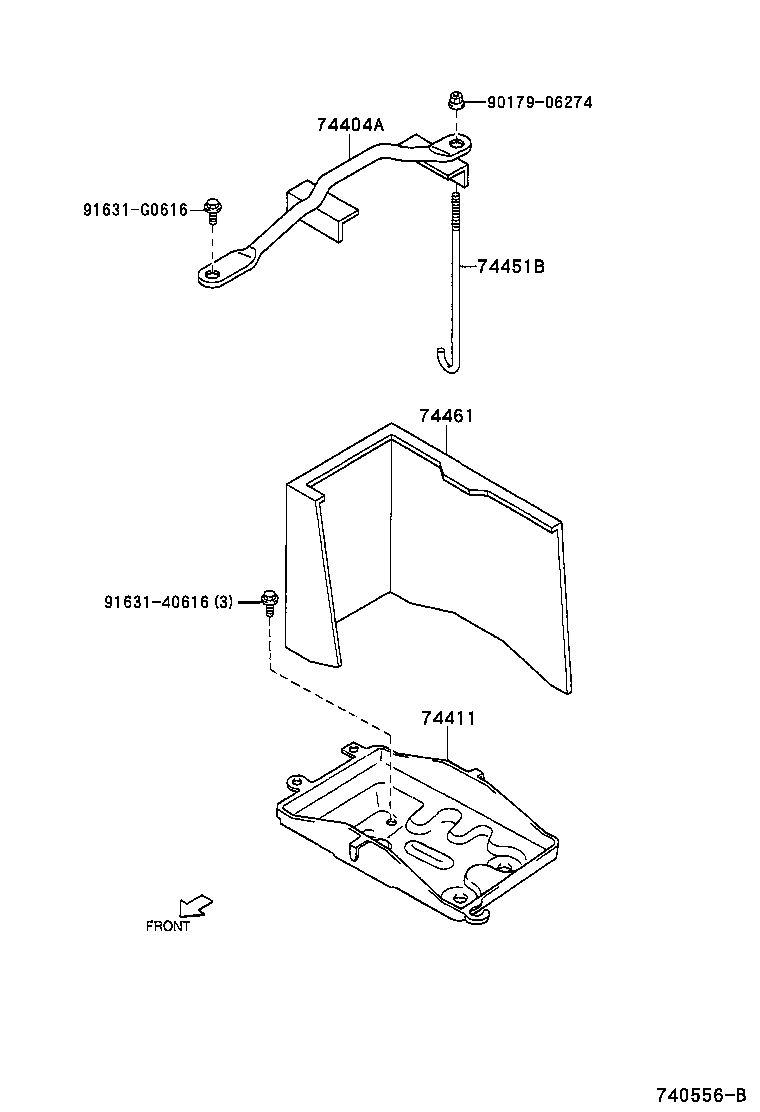

Click highlighted areas on diagram

diagram 74404A 74411 74451B 74461 9017906274 9163140616 91631G0616
Part # Description Qty Price
74404A - CLAMP SUB-ASSY, BATTERY
74404-97201

M10#,11#

 1
74411 - CARRIER, BATTERY
74411-87204

M10#,11#

 1
74451B - BOLT, BATTERY CLAMP
74451-87703

M10#,11#

 1
74461 - COVER, BATTERY
74405-97201

M100,110

 1
Common parts
90179-06274
91631-40616
91631-G0616
