M110A-GPGF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )

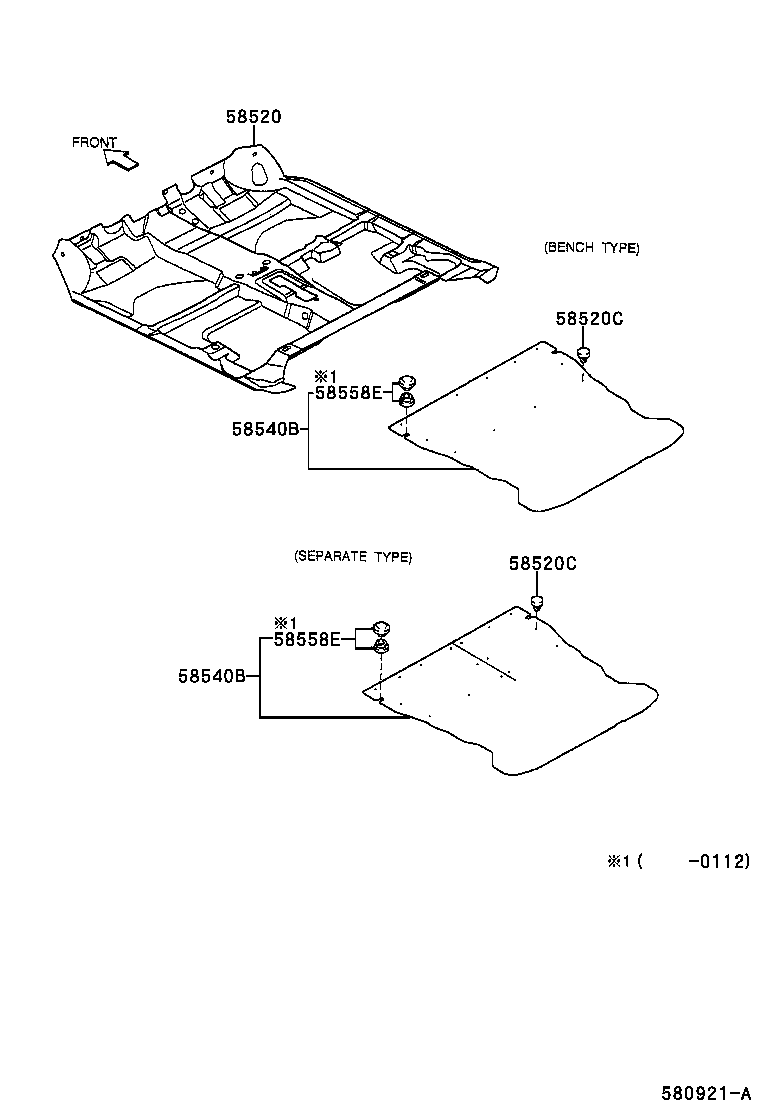

Click highlighted areas on diagram

diagram 58520 58520C 58520C 58540B 58540B 58558E 58558E
Part # Description Qty Price
58520 - CARPET ASSY, FRONT FLOOR
58530-9720103

M100,110

DARK GRAY,TRIMS6

 1
58530-9720303

M100,110

ｶﾝﾚｲﾁ ｼﾖｳ,DARK GRAY,TRIMS6

 1
58530-9723903

M100,110

ｶﾝﾚｲﾁ ｼﾖｳ,DARK GRAY,TRIMS6

 1
58530-9723703

M100,110

DARK GRAY,TRIMS6

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90044-68028C3

M10#,11#

GRAY,TRIMS6,S8

 25
58520C - CLIP(FOR FRONT FLOOR CARPET)
90044-68028C3

M10#,11#

GRAY,TRIMS6,S8

 25
58540B - CARPET ASSY, FRONT FLOOR, REAR NO.1
58570-9720103

M100,110..V

DARK GRAY,TRIMS6

 1
58570-9720203

M100,110..X

DARK GRAY,TRIMS6

 1
58540B - CARPET ASSY, FRONT FLOOR, REAR NO.1
58570-9720103

M100,110..V

DARK GRAY,TRIMS6

 1
58570-9720203

M100,110..X

DARK GRAY,TRIMS6

 1
58558E - FASTENER, PILE
58558-8750123

M10#,11#

SHADOW GRAY,TRIMS6,S8

 2
58558E - FASTENER, PILE
58558-8750123

M10#,11#

SHADOW GRAY,TRIMS6,S8

 2
