M110A-GPGF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )M11#

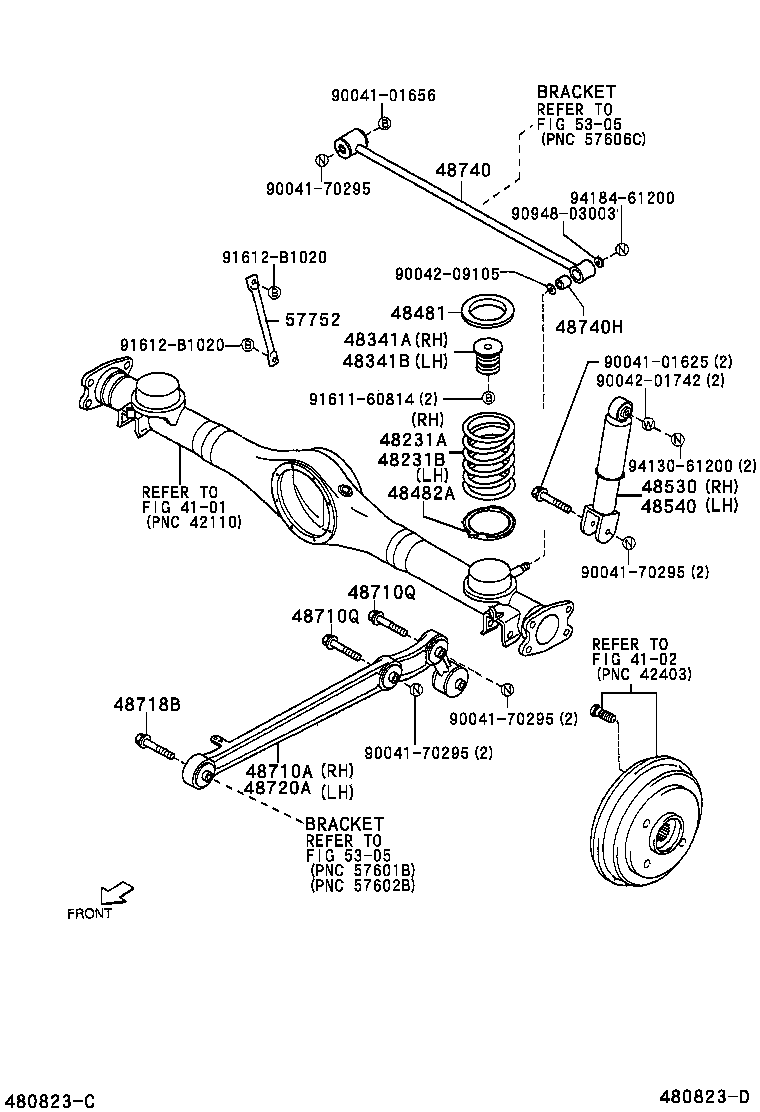

Click highlighted areas on diagram

diagram 4101 4102 48231A 48231B 48341A 48341B 48481 48482A 48530 48540 48710A 48710Q 48710Q 48718B 48720A 48740 48740H 5305 5305 57752 9004101625 9004101656 9004170295 9004170295 9004170295 9004170295 9004201742 9004209105 9094803003 9161160814 91612B1020 91612B1020 9413061200 9418461200
Part # Description Qty Price
48231A - SPRING, COIL, REAR RH
48231-97202

M110

 1
48231-97227

M110

 1
48231B - SPRING, COIL, REAR LH
48231-97202

M110

 1
48231-97227

M110

 1
48341A - BUMPER, REAR SPRING, NO.1 RH
48341-87211

M11#

 1
48341B - BUMPER, REAR SPRING, NO.1 LH
48341-87211

M11#

 1
48481 - SEAT, REAR SPRING, UPPER
48481-97201

M10#,11#

 2
48481-87204

M100,110

 2
48482A - SEAT, REAR SPRING, LOWER
48482-97201

M10#,11#

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-97228

M110

 1
48531-97237

M110

KYB

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-97228

M110

 1
48531-97237

M110

KYB

 1
48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH
48710-97201

M11#

 1
48710Q - BOLT(FOR REAR LOWER CONTROL ARM)
48719-97201

M11#

 4
48710Q - BOLT(FOR REAR LOWER CONTROL ARM)
48719-97201

M11#

 4
48718B - SHAFT, REAR SUSPENSION LOWER ARM, NO.1
48718-97201

M11#

 2
48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH
48720-97201

M11#

 1
48740 - ROD ASSY, REAR LATERAL CONTROL
48740-97201

M11#

 1
48740H - BUSH, NO.1(FOR REAR LATERAL CONTROL ROD)
90043-85102

M11#

 2
57752 - BRACE, LATERAL CONTROL ROD BRACKET
57752-97201

M11#

 1
Common parts
90041-01625
90041-01656
90041-70295
90042-01742
90042-09105
90948-03003
91611-60814
91612-B1020
94130-61200
94184-61200
Linked diagrams
4101
4102
5305
