M110A-GPGF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )

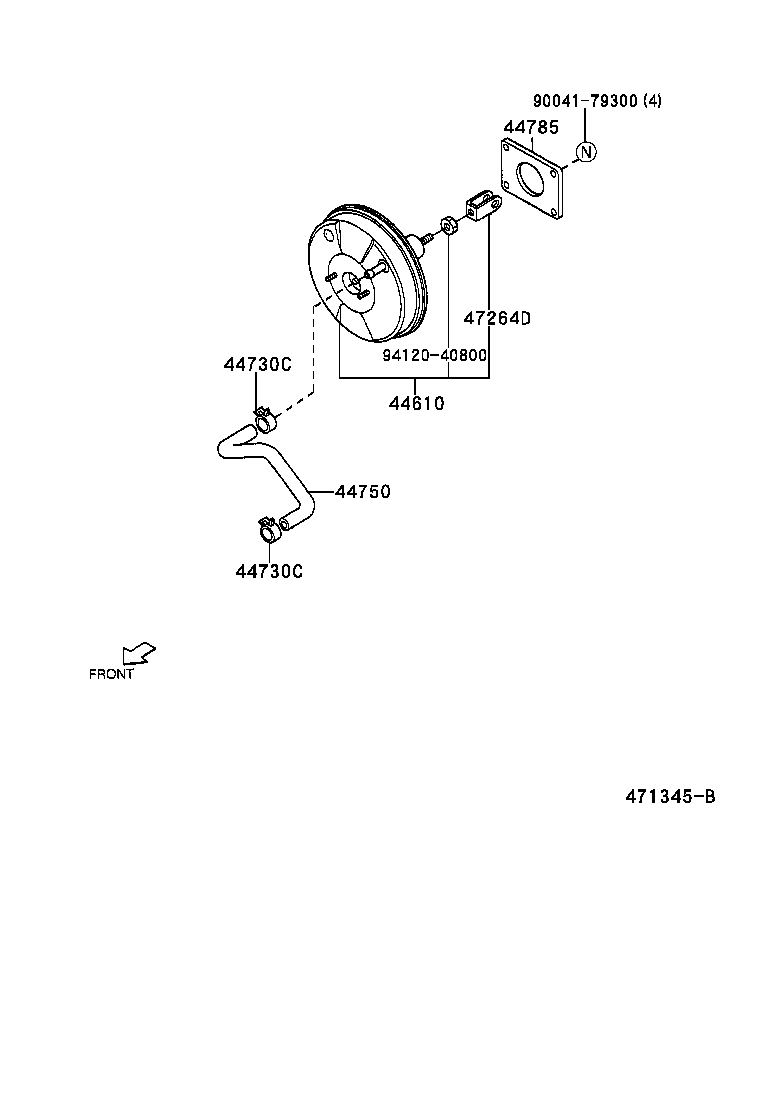

Click highlighted areas on diagram

diagram 44610 44730C 44730C 44750 44785 47264D 9004179300 9412040800
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-97203

M100,110..V

ﾅｼ(ABS)

 1
44610-97207

M101,111;M100,110..X

 1
44610-97207

M100,110..V

ｱﾘ(ABS)

 1
44730C - CLIP(FOR VACUUM HOSE)
90044-67246

M10#,11#

 2
44730C - CLIP(FOR VACUUM HOSE)
90044-67246

M10#,11#

 2
44750 - HOSE ASSY, VACUUM
44750-97201

M100,110

 1
44785 - GASKET, BRAKE BOOSTER
47278-87703

M10#,11#

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-87204

M10#,11#

 1
Common parts
90041-79300
94120-40800
