M110A-GPGF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809-0210)M11#

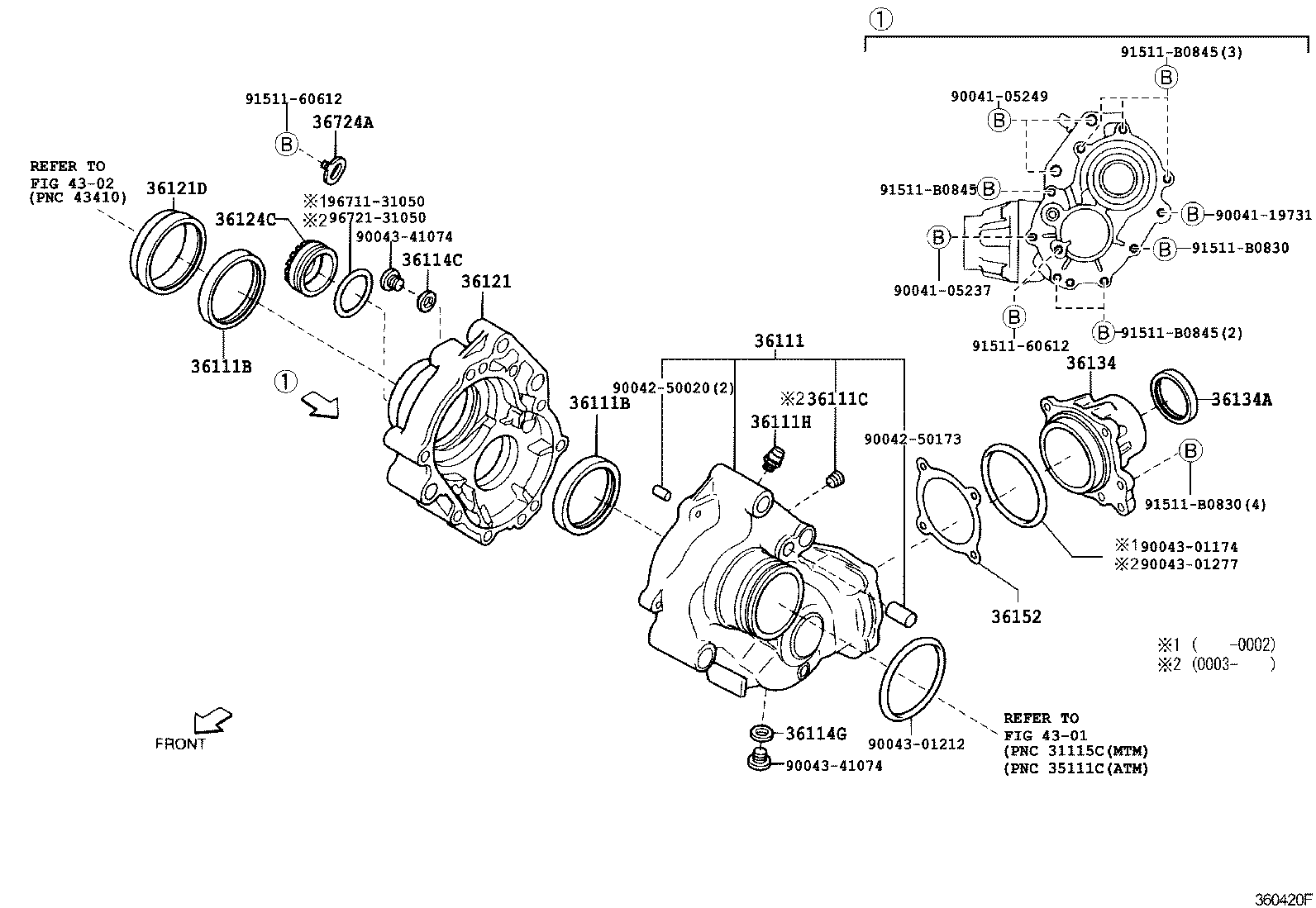

Click highlighted areas on diagram

diagram 36111 36111B 36111B 36111C 36111H 36114C 36114G 36121 36121D 36124C 36134 36134A 36152 36724A 4301 4302 9004105237 9004105249 9004119731 9004250020 9004250173 9004301174 9004301212 9004301277 9004341074 9004341074 9151160612 9151160612 91511B0830 91511B0830 91511B0845 91511B0845 91511B0845 9671131050 9672131050
Part # Description Qty Price
36111 - CASE, TRANSFER
36101-97201

M110

 1
36111B - SEAL, OIL (FOR TRANSFER CASE)
90043-16019

M11#

 2
36111B - SEAL, OIL (FOR TRANSFER CASE)
90043-16019

M11#

 2
36111C - PLUG (FOR TRANSFER CASE)
90043-44020

M11#

 1
36111H - PLUG, BREATHER (FOR TRANSFER CASE)
90049-15026

M11#

 1
36114C - GASKET, NO.1 (FOR TRANSFER CASE)
90044-30178

M11#

 1
36114G - GASKET (FOR TRANSFER DRAIN PLUG)
90044-30178

M11#

 1
36121 - COVER, TRANSFER CASE, NO.1
36121-97201

M11#

 1
36121D - SEAL, OIL(FOR TRANSFER CASE COVER)
90043-11333

M11#

 1
36124C - COVER, TRANSFER BEARING ADJUSTING
36124-87701

M11#

 1
36134 - RETAINER, OUTPUT SHAFT BEARING, FRONT
36134-97201

M110

 1
36134A - SEAL, OIL (FOR OUTPUT SHAFT BEARING FRONT RETAINER)
90043-11332

M11#

 1
36152 - GASKET, OUTPUT SHAFT BEARING RETAINER
90045-65069

M11#

厚さ=0.35

 1
90045-65068

M11#

厚さ=0.30

 1
90045-65070

M11#

厚さ=0.40

 1
90045-65067

M11#

厚さ=0.25

 1
90045-65071

M11#

厚さ=0.45

 1
90045-65066

M11#

厚さ=0.20

 1
36724A - PLATE, TRANSFER BEARING ADJUSTING NUT LOCK
36724-97201

M11#

 1
Common parts
90041-05237
90041-05249
90041-19731
90042-50020
90042-50173
90043-01174
90043-01212
90043-01277
90043-41074
91511-60612
91511-B0830
91511-B0845
96711-31050
96721-31050
Linked diagrams
4301
4302
