M110A-GPGF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )EJ#

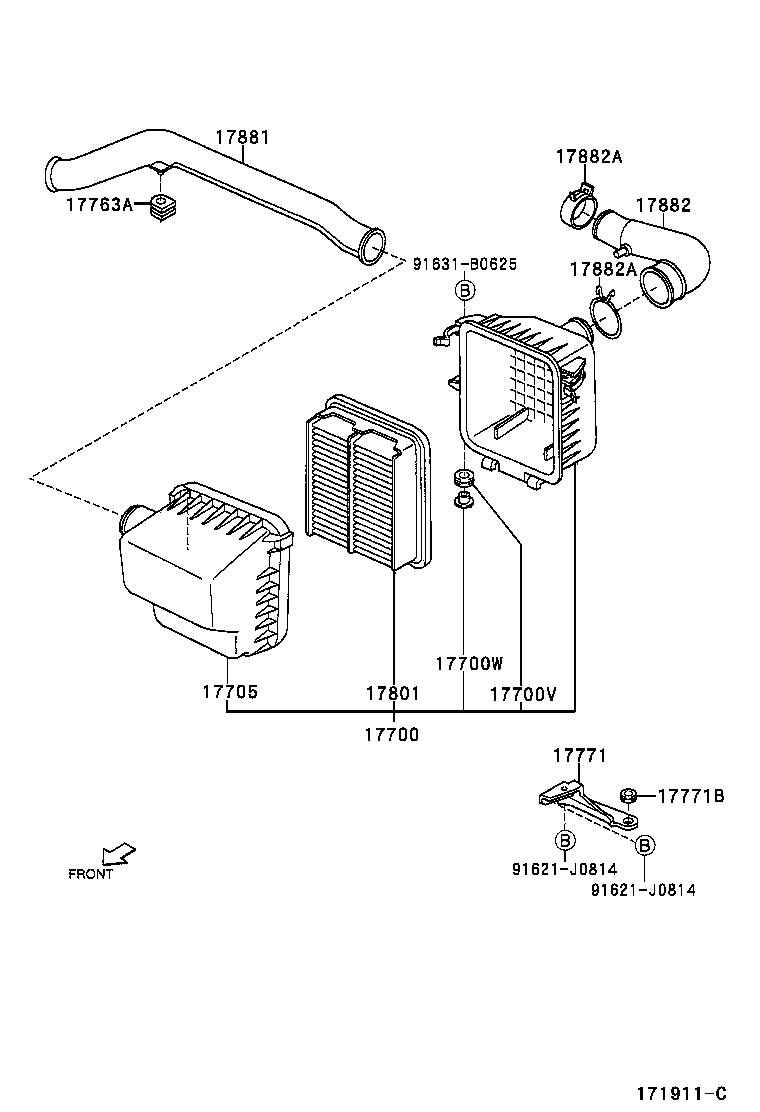

Click highlighted areas on diagram

diagram 17700 17700V 17700W 17705 17763A 17771 17771B 17801 17881 17882 17882A 17882A 91621J0814 91621J0814 91631B0625
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-97201

EJ#..M100,110

 1
17700V - BUSH(FOR AIR CLEANER)
90044-80597

K3VE,EJ#..M10#,11#

 1
17700W - SPACER(FOR AIR CLEANER)
90043-89142

K3VE,EJ#..M10#,11#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-97201

EJ#..M100,110

 1
17763A - GROMMET, AIR CLEANER INLET DUCT
90044-80599

EJ#..M100,110

 1
17771 - BRACKET, AIR CLEANER INLET DUCT
17771-97201

EJ#..M100,110

 1
17771B - GROMMET(FOR AIR CLEANER BRACKET)
90044-80598

K3VE,EJ#..M10#,11#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-97201

K3VE,EJ#..M10#,11#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-97201

EJ#..M100,110

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-97201

EJ#..M100,110

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90044-67420

EJ#..M100,110

ｴｱｸﾘｰﾅ側

 1
90044-67433

EJ#..M100,110

ｴﾝｼﾞﾝ側

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90044-67420

EJ#..M100,110

ｴｱｸﾘｰﾅ側

 1
90044-67433

EJ#..M100,110

ｴﾝｼﾞﾝ側

 1
Common parts
91621-J0814
91631-B0625
