M110A-GPGE (2000)

Toyota Duet

Production May 2000 - May 2004
Engine EJVE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0112- )

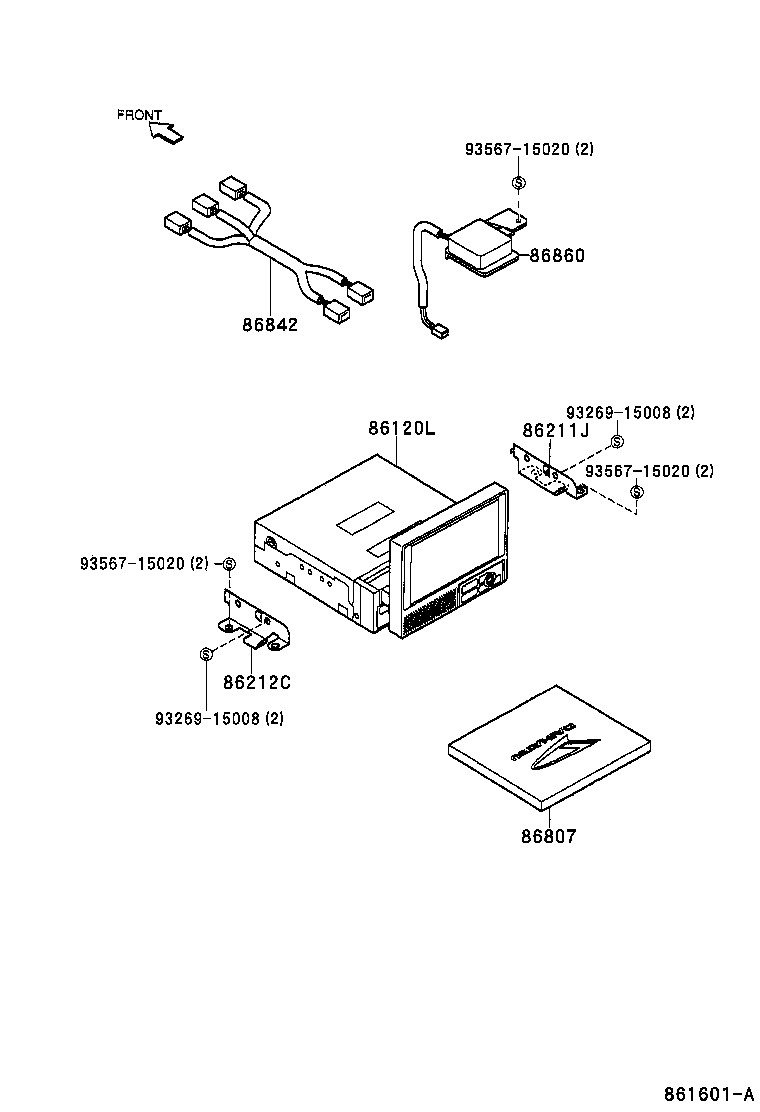

Click highlighted areas on diagram

diagram 86120L 86211J 86212C 86807 86842 86860 9326915008 9326915008 9356715020 9356715020 9356715020
Part # Description Qty Price
86120L - RECEIVER ASSY, NAVIGATION
86850-97401

M10#,11#

FUJITSU TEN

 1
86211J - BRACKET, RADIO RECEIVER, NO.1
86211-97401

M10#,11#

 1
86212C - BRACKET, RADIO RECEIVER, NO.2
86212-97401

M10#,11#

 1
86807 - DISC KIT, CD-ROM
86807-12030

M10#,11#

 1
86807-52021

M10#,11#

 1
86807-52020

M10#,11#

 1
86842 - WIRE, NAVIGATION, NO.1
86842-97402

M10#,11#

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-97402

M10#,11#

 1
Common parts
93269-15008
93567-15020
