M110A-GMNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )V,VS

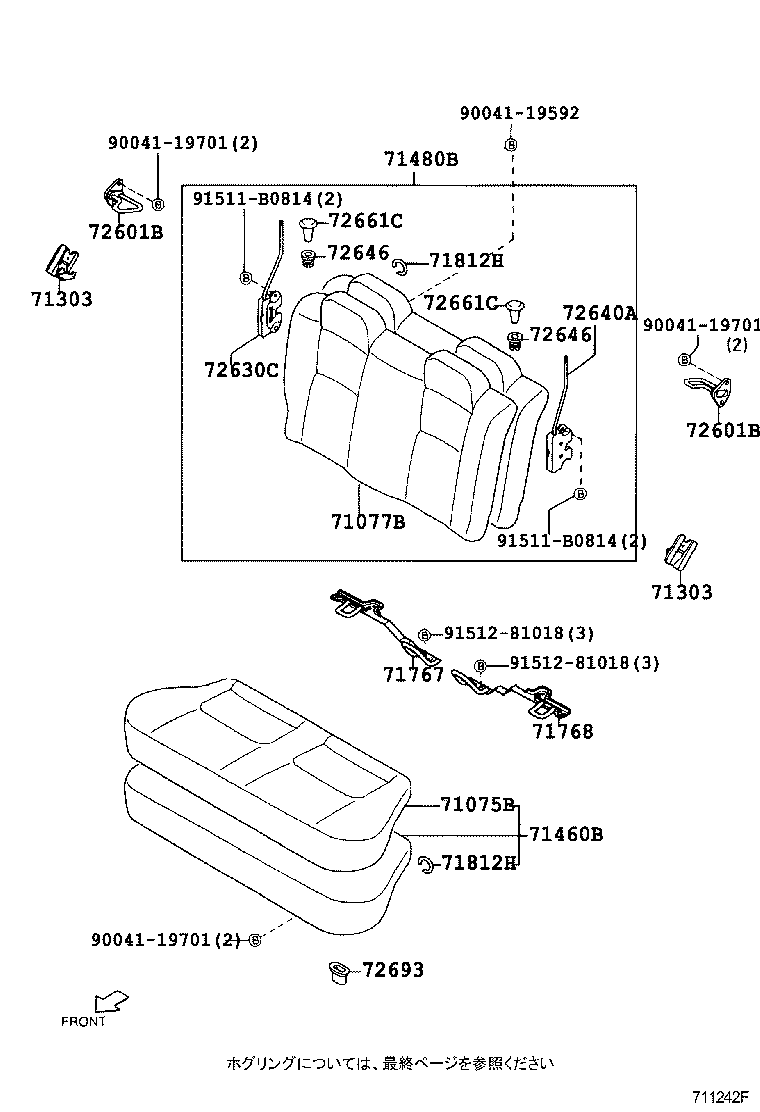

Click highlighted areas on diagram

diagram 71075B 71077B 71303 71303 71460B 71480B 71767 71768 71812H 71812H 72601B 72601B 72630C 72640A 72646 72646 72661C 72661C 72693 9004119592 9004119701 9004119701 9004119701 91511B0814 91511B0814 9151281018 9151281018
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-9723003

M100,110..V

ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ*(B),GRAY,TRIMS6

 1
71075-9723503

M100,110..V

ｱﾘ(ﾚｶﾛｼ-ﾄ),GRAY,TRIMS6

 1
71075-9720103

M100,110..V

DARK GRAY,TRIMS6

 1
71075-9723103

M100,110..V

ｼ-ﾄ ﾀｲﾌﾟ (FDS6),GRAY,TRIMS6

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71083-9720103

M100,110..V

DARK GRAY,TRIMS6

 1
71083-9722703

M100,110..V

ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ*(B),GRAY,TRIMS6

 1
71083-9723003

M100,110..V

ｱﾘ(ﾚｶﾛｼ-ﾄ),GRAY,TRIMS6

 1
71083-9722803

M100,110..V

ｼ-ﾄ ﾀｲﾌﾟ (FDS6),GRAY,TRIMS6

 1
71303 - HINGE SUB-ASSY, REAR SEAT BACK
71303-97201

M10#,11#

 2
71303 - HINGE SUB-ASSY, REAR SEAT BACK
71303-97201

M10#,11#

 2
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-9720103

M100,110..V

DARK GRAY,TRIMS6

 1
71460-9723303

M100,110..V

ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ*(B),GRAY,TRIMS6

 1
71460-9723403

M100,110..V

ｼ-ﾄ ﾀｲﾌﾟ (FDS6),GRAY,TRIMS6

 1
71460-9723903

M100,110..V

ｱﾘ(ﾚｶﾛｼ-ﾄ),GRAY,TRIMS6

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71580-9724103

M100,110..V

ｱﾘ(ﾚｶﾛｼ-ﾄ),GRAY,TRIMS6

 1
71580-9720103

M100,110..V

DARK GRAY,TRIMS6

 1
71580-9723603

M100,110..V

ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ*(B),GRAY,TRIMS6

 1
71580-9723703

M100,110..V

ｼ-ﾄ ﾀｲﾌﾟ (FDS6),GRAY,TRIMS6

 1
71812H - RING, HOG, SMALL (FOR REAR SEAT)
71812-87201

M10#,11#

 33
71812H - RING, HOG, SMALL (FOR REAR SEAT)
71812-87201

M10#,11#

 33
72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK
72602-97202

M10#,11#

左側

 1
72601-97202

M10#,11#

右側

 1
72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK
72602-97202

M10#,11#

左側

 1
72601-97202

M10#,11#

右側

 1
72630C - LOCK ASSY, REAR SEAT BACK, RH
72630-97201

M10#,11#

 1
72640A - LOCK ASSY, REAR SEAT BACK, LH
72640-97201

M10#,11#

 1
72646 - GROMMET, REAR SEAT BACK STOP BUTTON
72646-8770133

M10#,11#

DARK GRAY,TRIMS6

 2
72646 - GROMMET, REAR SEAT BACK STOP BUTTON
72646-8770133

M10#,11#

DARK GRAY,TRIMS6

 2
72661C - BUTTON, REAR SEAT BACK LOCK RELEASE
72661-8770143

M10#,11#

DARK GRAY,TRIMS6

 2
72661C - BUTTON, REAR SEAT BACK LOCK RELEASE
72661-8770143

M10#,11#

DARK GRAY,TRIMS6

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-97201

M10#,11#

 2
Common parts
90041-19592
90041-19701
91511-B0814
91512-81018

(9809-0112)

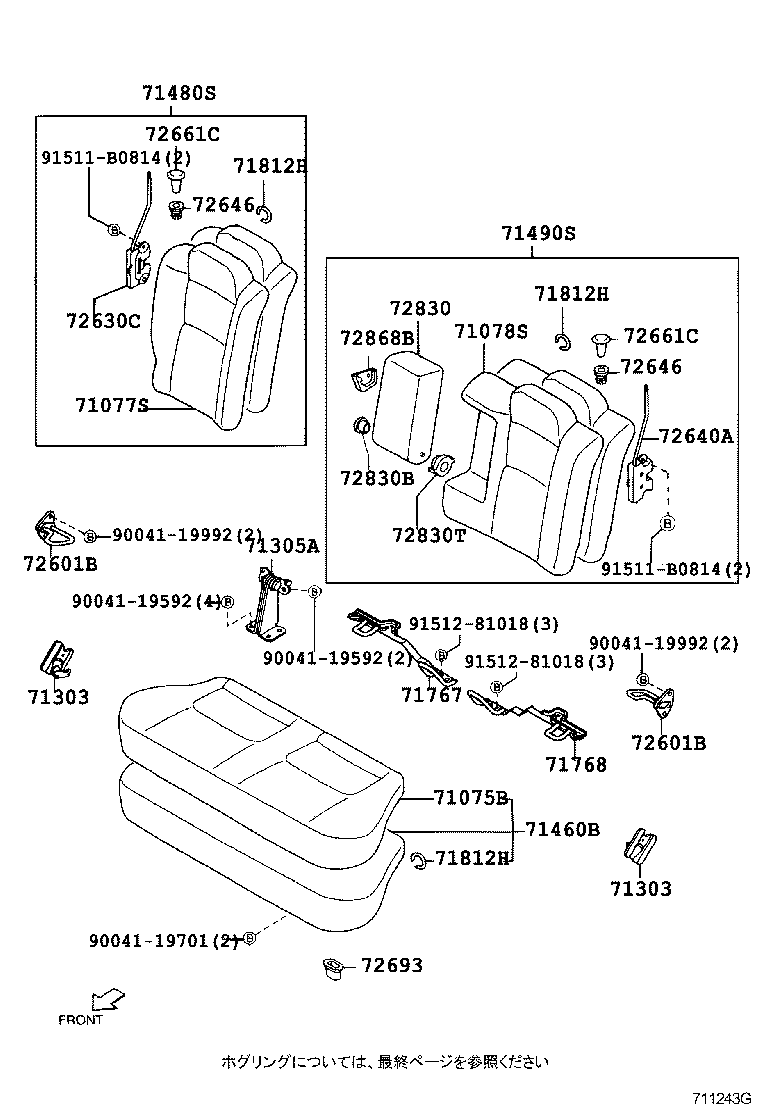

Click highlighted areas on diagram

ｾﾊﾟﾚ-ﾄ ﾀｲﾌﾟ

diagram 71075B 71077S 71078S 71303 71303 71305A 71460B 71480S 71490S 71767 71768 71812H 71812H 71812H 72601B 72601B 72630C 72640A 72646 72646 72661C 72661C 72693 72830 72830B 72830T 72868B 9004119592 9004119592 9004119701 9004119992 9004119992 91511B0814 91511B0814 9151281018 9151281018
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-9723003

M100,110..V

ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ*(B),GRAY,TRIMS6

 1
71075-9723503

M100,110..V

ｱﾘ(ﾚｶﾛｼ-ﾄ),GRAY,TRIMS6

 1
71075-9720103

M100,110..V

DARK GRAY,TRIMS6

 1
71075-9723103

M100,110..V

ｼ-ﾄ ﾀｲﾌﾟ (FDS6),GRAY,TRIMS6

 1
71303 - HINGE SUB-ASSY, REAR SEAT BACK
71303-97201

M10#,11#

 2
71303 - HINGE SUB-ASSY, REAR SEAT BACK
71303-97201

M10#,11#

 2
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-9720103

M100,110..V

DARK GRAY,TRIMS6

 1
71460-9723303

M100,110..V

ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ*(B),GRAY,TRIMS6

 1
71460-9723403

M100,110..V

ｼ-ﾄ ﾀｲﾌﾟ (FDS6),GRAY,TRIMS6

 1
71460-9723903

M100,110..V

ｱﾘ(ﾚｶﾛｼ-ﾄ),GRAY,TRIMS6

 1
71812H - RING, HOG, SMALL (FOR REAR SEAT)
71812-87201

M10#,11#

 33
71812H - RING, HOG, SMALL (FOR REAR SEAT)
71812-87201

M10#,11#

 33
71812H - RING, HOG, SMALL (FOR REAR SEAT)
71812-87201

M10#,11#

 33
72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK
72602-97202

M10#,11#

左側

 1
72601-97202

M10#,11#

右側

 1
72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK
72602-97202

M10#,11#

左側

 1
72601-97202

M10#,11#

右側

 1
72630C - LOCK ASSY, REAR SEAT BACK, RH
72630-97201

M10#,11#

 1
72640A - LOCK ASSY, REAR SEAT BACK, LH
72640-97201

M10#,11#

 1
72646 - GROMMET, REAR SEAT BACK STOP BUTTON
72646-8770133

M10#,11#

DARK GRAY,TRIMS6

 2
72646 - GROMMET, REAR SEAT BACK STOP BUTTON
72646-8770133

M10#,11#

DARK GRAY,TRIMS6

 2
72661C - BUTTON, REAR SEAT BACK LOCK RELEASE
72661-8770143

M10#,11#

DARK GRAY,TRIMS6

 2
72661C - BUTTON, REAR SEAT BACK LOCK RELEASE
72661-8770143

M10#,11#

DARK GRAY,TRIMS6

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-97201

M10#,11#

 2
Common parts
90041-19592
90041-19701
90041-19992
91511-B0814
91512-81018

(9809- )

Click highlighted areas on diagram

ﾎｸﾞﾘﾝｸﾞ

diagram 9046816019 9046818008
Part # Description Qty Price
Common parts
90468-16019
90468-18008
